Parts 6” Maxxum Big Flo - Repair Parts Packer Manifold Assembly Parts - Top View
38
6” Maxxum Big Flo - Repair Parts Packer Manifold Assembly Parts - Top View

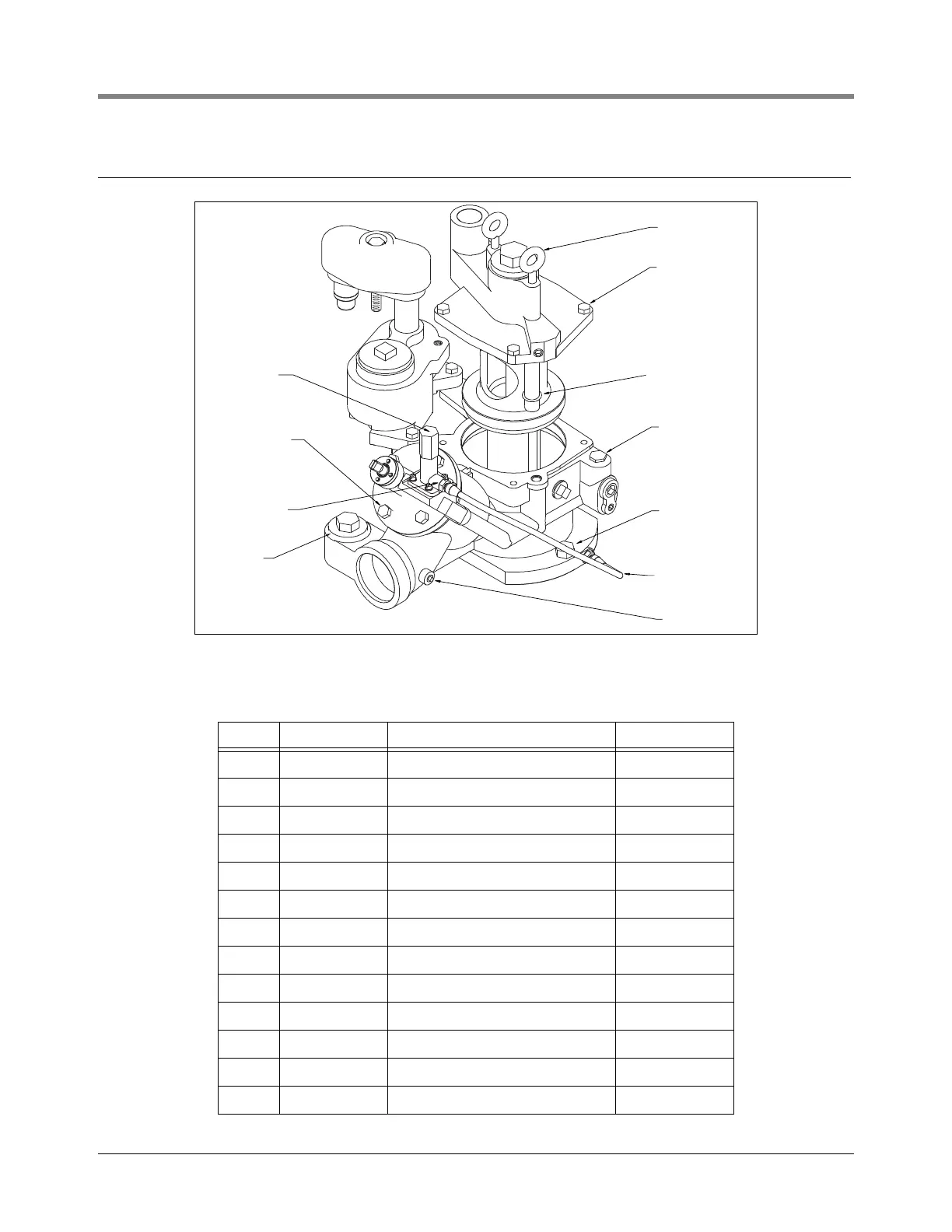

Figure 25. Maxxum Packer-Manifold Assembly
Table I.
Item Part No. Description Qty.
1 036-470-1 Handle - Lifting 2
2 026-750-1 Bolt - Hex 1/2-13 x 1-1/2 6
3 144-307-5 Kit - Siphon Components 1
3a 066-163-3 Plug - Siphon Plug 1
4 026-759-1 Bolt - Hex 3/4-10 x 1-3/4 3
5 086-010-1 Line - Steel Vent 1
6 027-240-1 Plug - Square 1/4 NPT 1
7 027-276-1 Fitting - Tube 2
8 026-757-1 Bolt - Hex 1/2-13 x 1 4
9 067-265-1 Plug - 2” NPT With O-Ring 1
10 072-686-1 O-Ring (-228) 1
11 072-642-1 O-Ring (-112) 1
12 144-322-5 Kit-Expansion Relief 1
rj/051-301-27.eps
9
7
8
12
10 - Not shown
1
2
11
3, 3A
shown with
siphon plug
installed
4
5
6
