Parts UL Listed Motor Control Box For 2HP Pumps Model P200H1-CB
40
UL Listed Motor Control Box For 2HP Pumps Model P200H1-CB

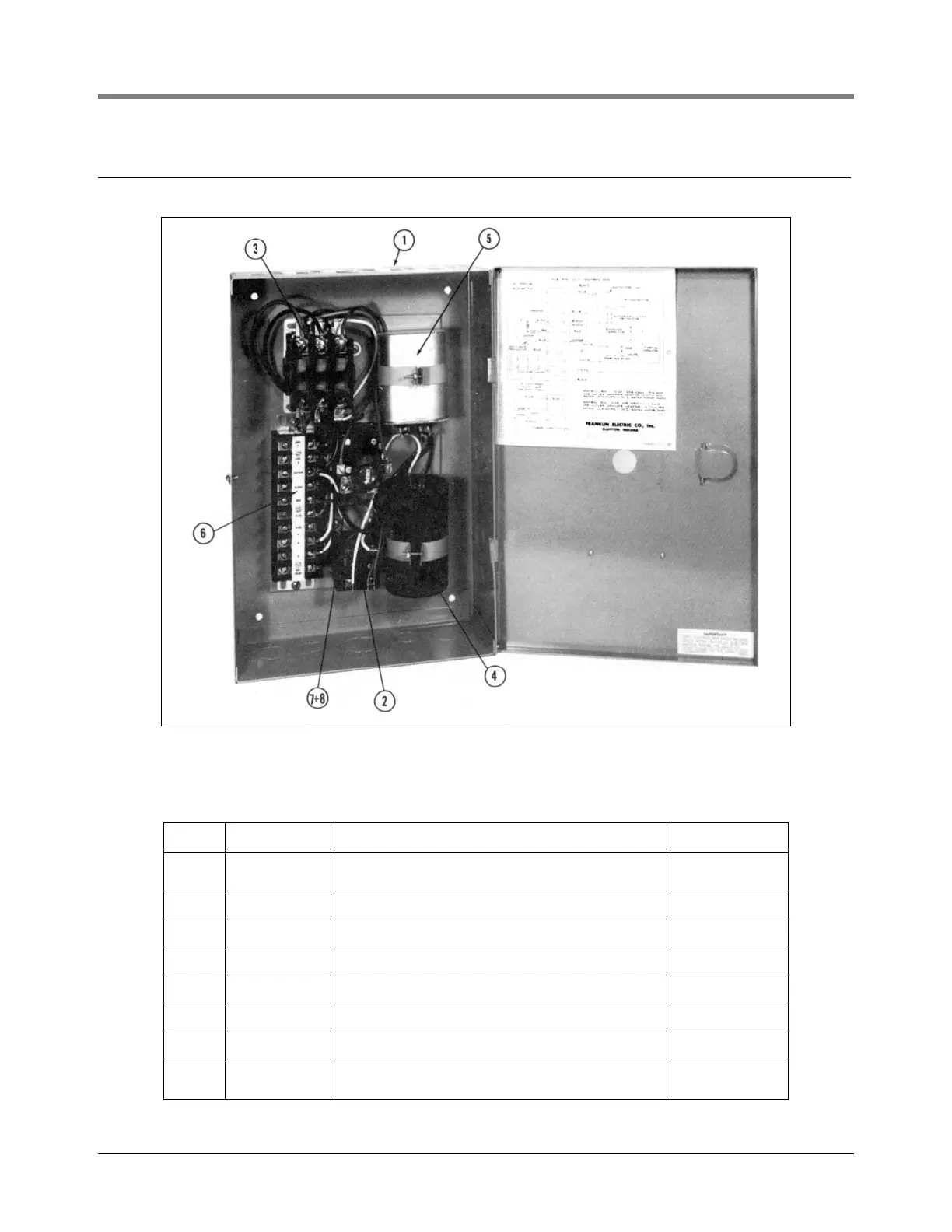

Figure 27. 2HP, 1-Phase Control Box
Table K.
Item Part No. Description Qty.
1 108-403-1
P200H1-CB Complete General Purpose Motor Control Box
(4” D x 10.125” W x 15.125” L) 1
2 071-047-1 Starting Relay (3ARR3-J3V2) 1
3 071-061-1 Line Contactor Relay 1
4 011-085-1 Starting Capacitor (200MFD-250 Volt) 1
5 012-253-1 Running Capacitor (15MFD-370 Volt) 1
6 008-180-1 Terminal Block 1
7 071-062-1 Overload Protector (Cutler Hammer 10-2149) 1
8 023-009-1
Overload Protector Heater Element (Cutler Hammer 10177H-
33A) (P200H1-CB) 1
rj/051-301-29.eps
