Installation Attaching the Siphon & Vacuum Lines with Factory Installed Siphon Assemblies
22

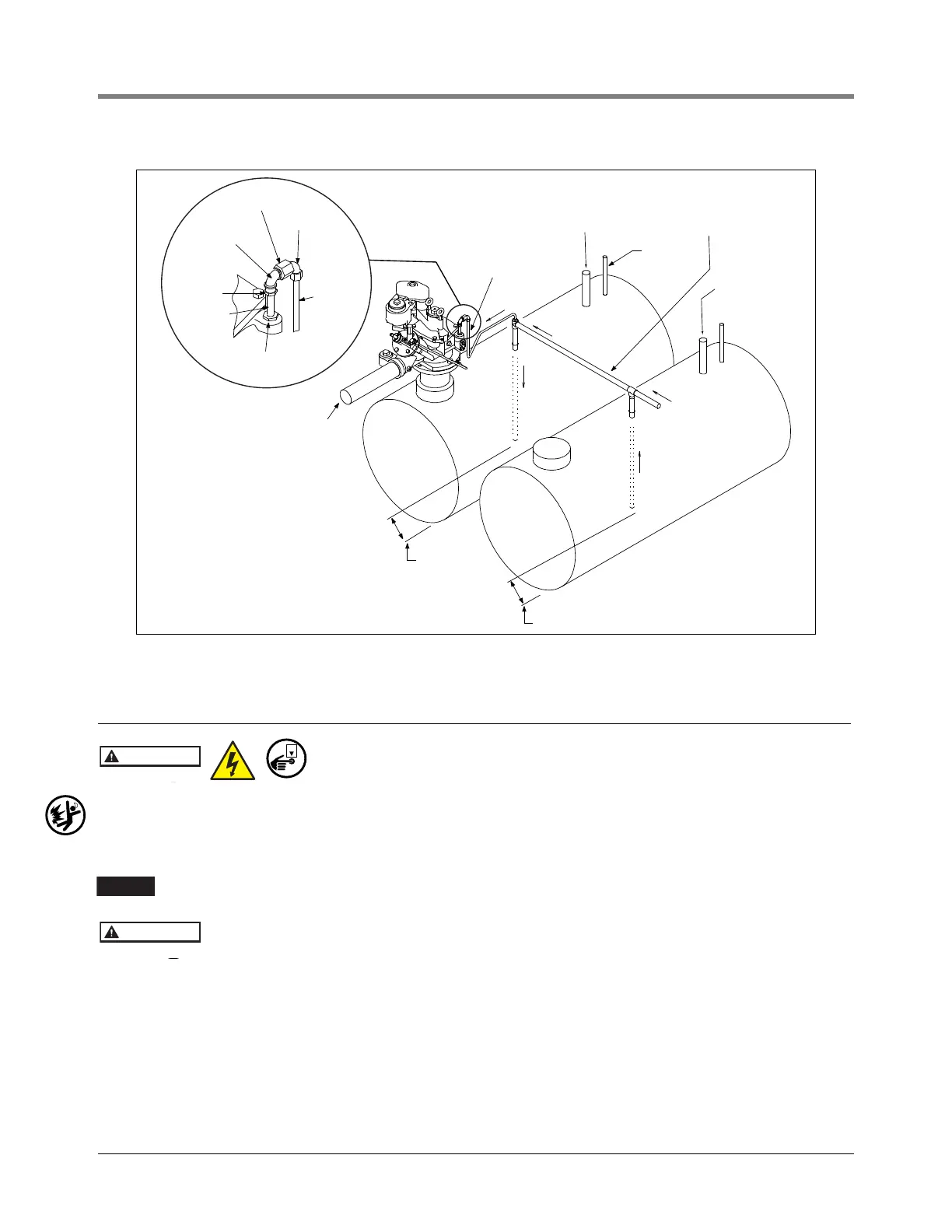

Figure 11.
Attaching the Siphon & Vacuum Lines with Factory Installed Siphon Assemblies
Disconnect, lock out, and tag power at the panel before servicing the
pump.
When servicing equipment, use non-sparking tools and use caution when removing or installing
equipment to avoid generating a spark.
1. Remove the 1/4 inch pipe plug from the siphon nozzle.
Care should be taken to insure that the internal portions of the siphon nozzle and parts in-
cluded in the siphon kit are clean and free of debris or contamination during assembly.
Before installing pipe threads apply an adequate amount of fresh, UL classified for pe-
troleum, non-setting thread sealant.
2. Coat both of the male threads of the 1/4 X 2 inch long nipple with pipe sealant. Thread one end of the nipple
into the siphon nozzle and the other end into the 1/4 x 3/8 inch reduction bushing.
3. Apply pipe sealant to the male threads of the reduction bushing and thread it into the 3/8 inch female elbow.
4. Apply pipe sealant to the male threads of the siphon check valve and thread it into the 3/8 inch female elbow.
5. Apply pipe sealant to the male pipe threads of the compression fitting elbow and thread it into the 1/4 inch
hole in the siphon check valve.
rj/051-301-13.eps
Vacuum line minimum
3/8" tubing to high
point of piping system
Minimum 2" NPT siphon line by
contractor must pitch upward (to
tank with pump) about 1/8" per foot.
3" (76mm)
3" NPT line
to dispenser
3" (76mm)
Vent pipe
Fill
pipe
Fill
pipe
3/8" NPT elbow
3/8" Bushing
1/4" NPT
nipple
Siphon
nozzle
3/8" tubing
elbow
3/8" tubing
provided by
contractor
Siphon line
check valve
