Veeder-Root Red Jacket Maxxum Big-Flo Quick-Set Series User Manual

36
Parts

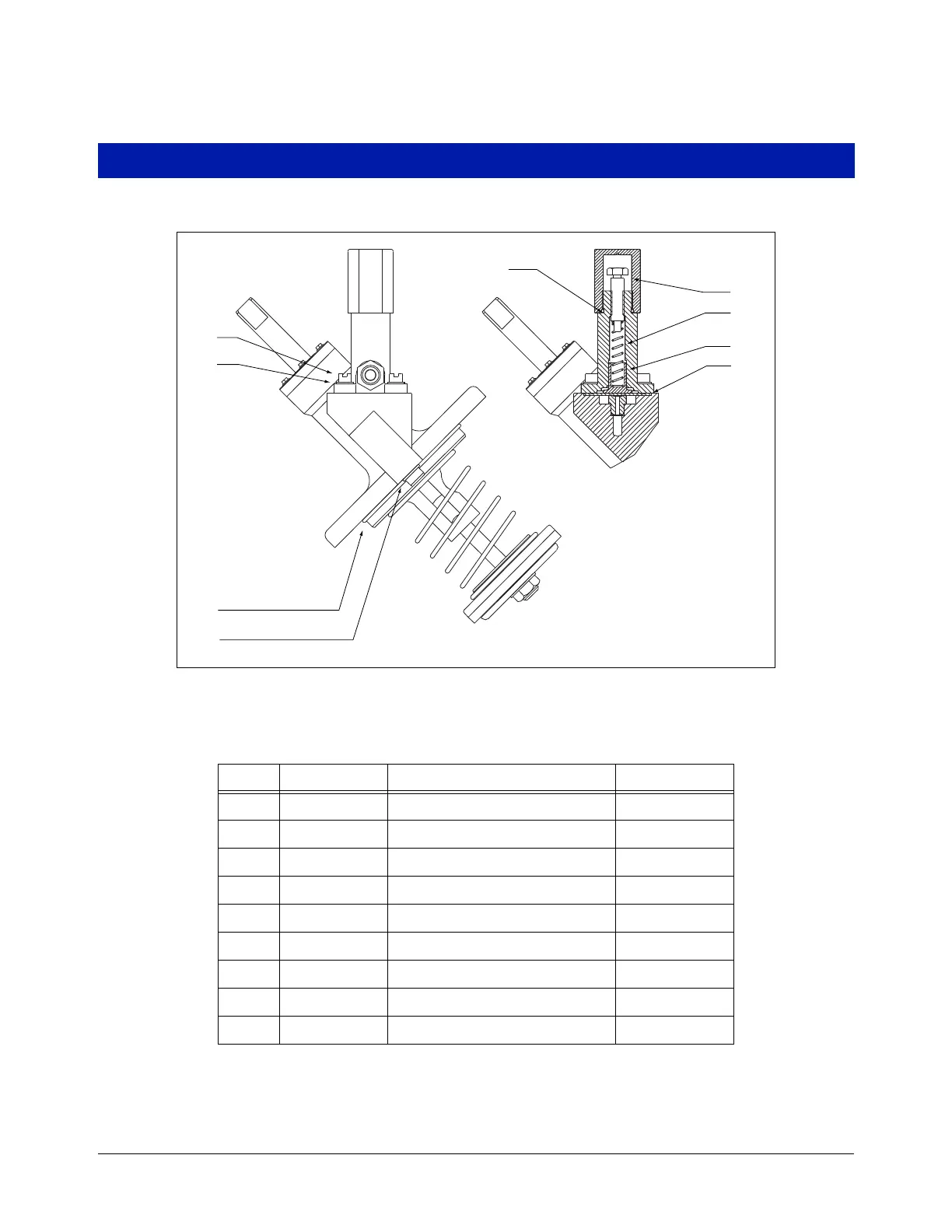

Figure 23. Check Valve And Pressurstat Assembly
Table G.
Item Part No. Description Qty.
1 076-447-1 Screw - Adjustment 1
2 080-944-1 Spring - Expansion Relief 1
3 067-278-1 Plunger 1
4 017-573-1 Diaphragm - Expansion Relief 1
5 072-642-1 O-Ring (-112) 1
6 072-699-1 O-Ring (-240) 1
7 026-752-1 Lockwasher 4
8 026-748-1 Screw - Hex Socket 4
9 072-684-1 O-Ring (-910) 1
rj/051-301-25.eps
8
9
1
2
3
4
7
6
5
