Veeder-Root Red Jacket Quick-Set User Manual

Introduction Dimensions for Pump Selection
10
Dimensions for Pump Selection
The Red Jacket features an adjustable column pipe and electrical conduit that allows the overall length to be
adjusted to a wide range of overall pump lengths. By loosening a collet on the column pipe, the length of the pump
may be varied by extending or retracting the column pipe. Three sizes of adjustable column pipe are available to
cover most pump length requirements (RJ1, RJ2, and RJ3). Figure 4 shows the dimensions needed to ensure a
correctly sized pump.

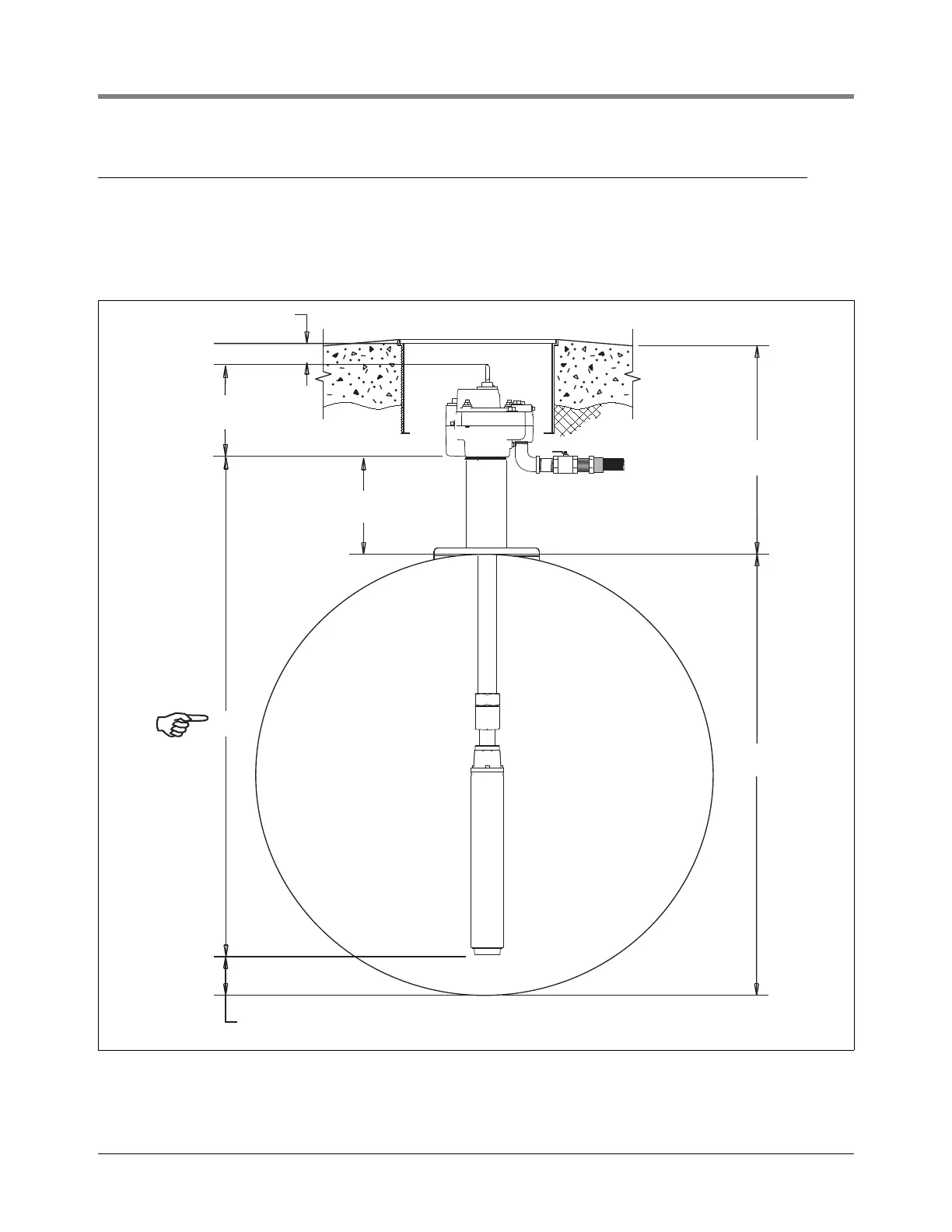

Figure 4. Measuring The Tank (See Table 2 For Adjustment Ranges).
5" (127 mm) Standard inlet and trapper
14" (356 mm) For floating suction adapter
Tank
Diameter
Riser
Length
L
Bury
Depth
11.7 "
(297 mm)
4 " (102 mm)
minimum
rjpumps/fig4.eps
Adjust The
Red Jacket
to this
dimension
