Parts Lists Check Valve Kit Parts
52
Check Valve Kit Parts
Table 10 lists the 410153-001 Check Valve Kit parts list.
Table 11 lists the 410153-002 Hi Pressure Check Valve Kit parts list.

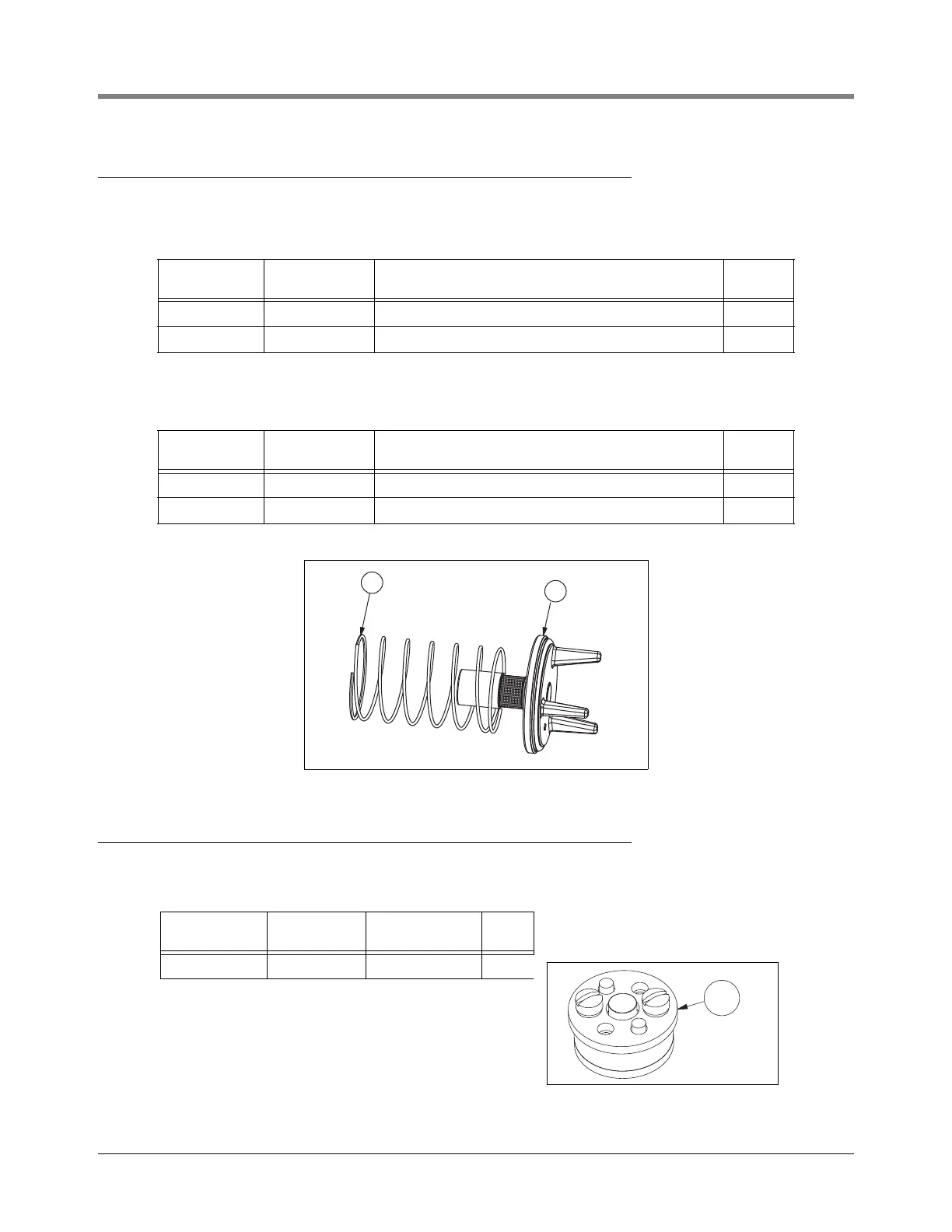

Figure 46. Check Valve Kit
Conduit Bushing Kit Parts
Table 12 lists the 410486-001 Conduit Bushing Kit parts list.
Table 10. 410153-001 Check Valve Kit Parts List
Item
(ref. Figure 46) Part No. Description Qty.
1 410022-005 Poppet assembly - check relief valve 1
2 410753-001 Spring 1
Table 11. 410153-002 Hi Pressure Check Valve Kit Parts List
Item
(ref. Figure 46) Part No. Description Qty.
1 410022-006 Hi press poppet assembly - check relief valve 1
2 410753-001 Spring 1
Table 12. 410486-001 Conduit Bushing Kit Part List
Item
(ref. Figure 47) Part No. Description Qty.
1 410301-001 Bushing - Conduit 1
Figure 47. Siphon Cartridge Kit
1
2
rjpumps\fig51.eps
1
