Parts Lists Electrical Connector Kit Parts
54
Electrical Connector Kit Parts
Table 14 lists the 410694-001 Electrical Connector Kit parts list.

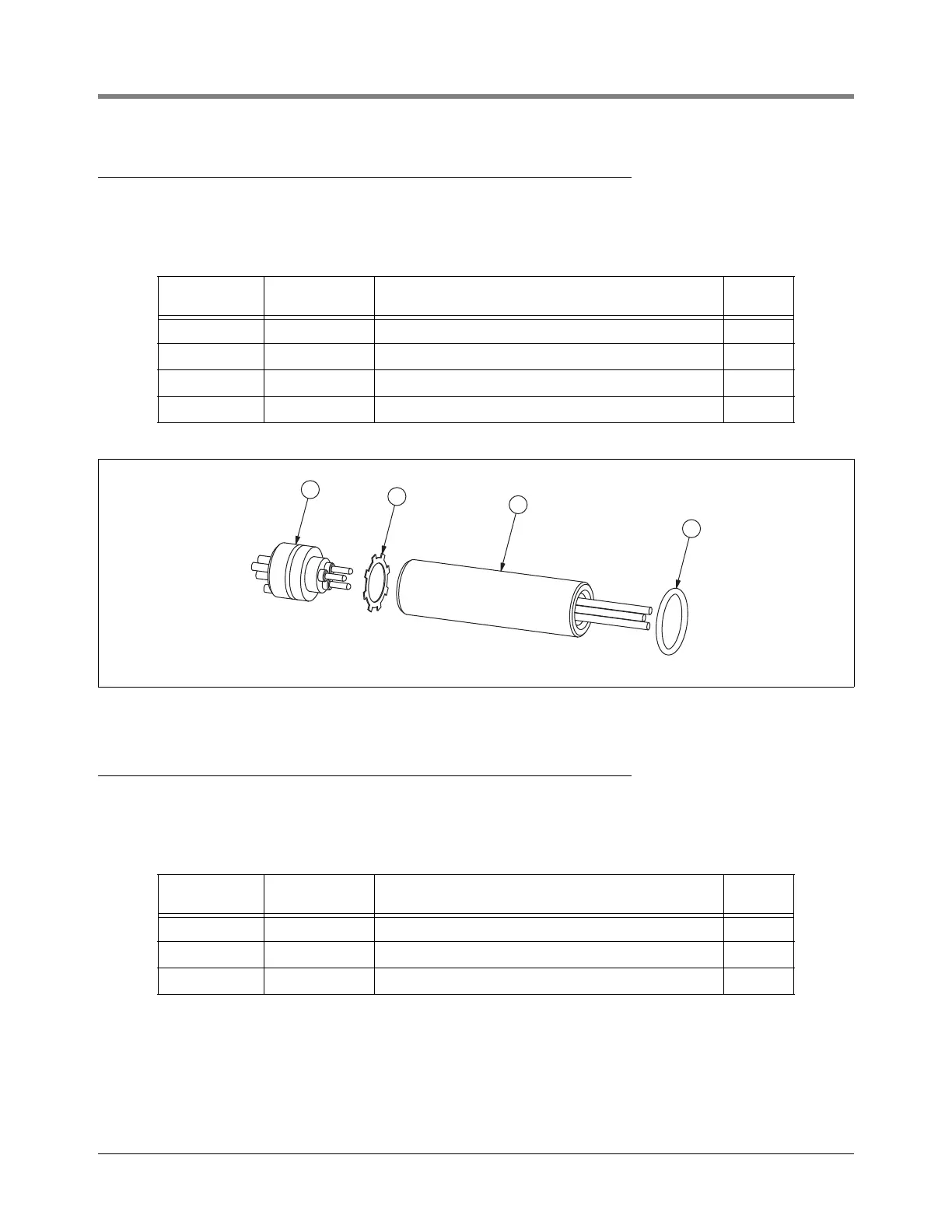

Figure 49. Electrical Connector Kit
UMP Wire Termination And Sealing Kit Parts
Table 15 lists the 410697-001 UMP Wire Termination And Sealing Kit parts list.
Table 14. 410694-001 Electrical Connector Kit Parts List
Item
(ref. Figure 49) Part No. Description Qty.
1 410607-001 Connector - male 1
2 410117-001 Connector - electrical 1
3 072-541-1 O-ring - 118 - FKM 1
4 072-214-1 Ring - internal lock - 5/8” ID x 7/8” OD 1
Table 15. 410697-001 UMP Wire Termination And Sealing Kit Parts List
Item
(ref. Figure 49) Part No. Description Qty.
1 081-112-1 Connector - Terminal 7
2 514100-304 Epoxy Sealant Pack 3
3 510901-337 Cable Tie 3
3
3
2
2
4
4
1
1
rjpumps\fig54.eps
