Parts Lists Hardware/Seal Kit Parts
53
Hardware/Seal Kit Parts
Table 13 lists the 410154-001 Hardware/Seal Kit parts list.

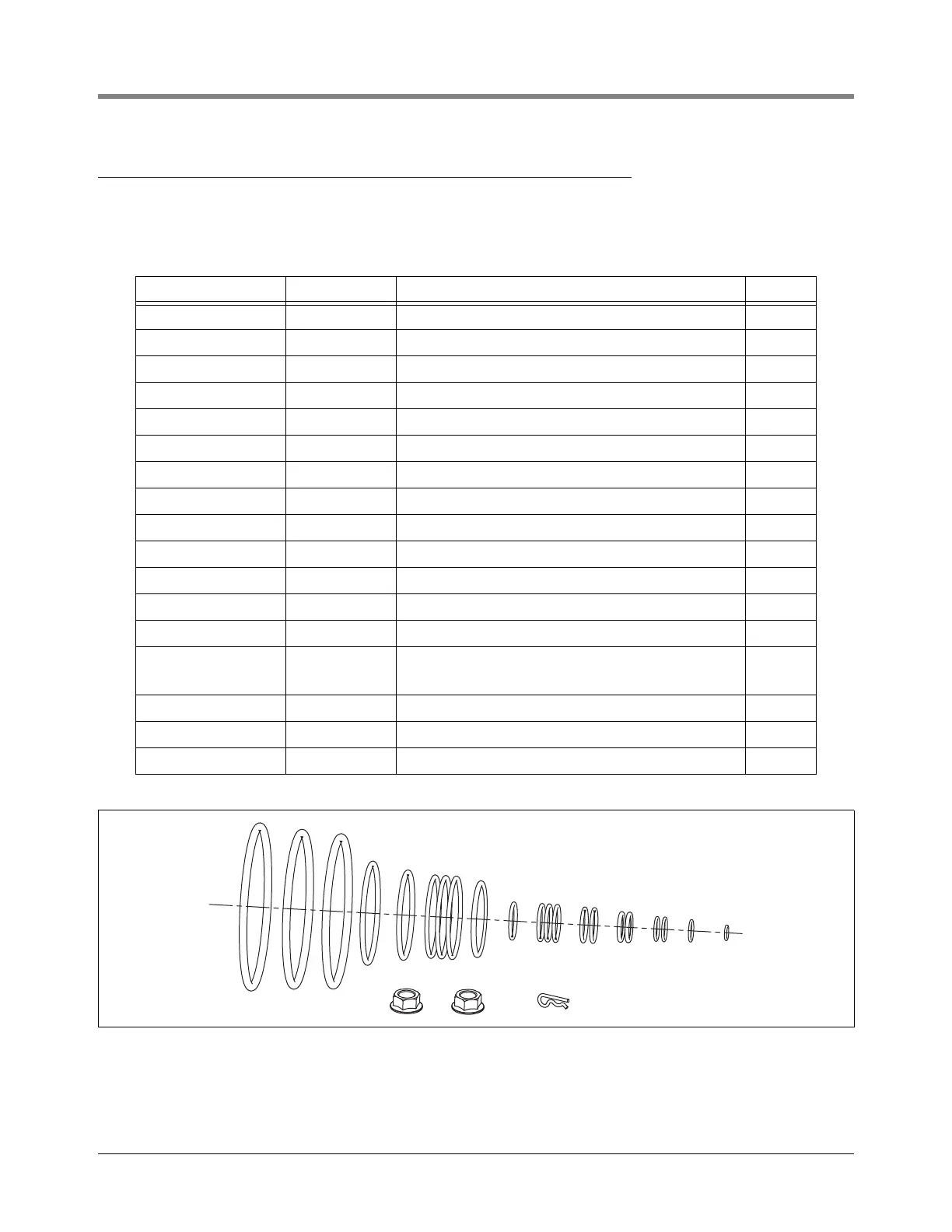

Figure 48. Hardware/Seal Kit
Table 13. 410154-001 Hardware/Seal Kit Parts List
(Ref. Figure) Part No. Description Qty.
Figure 29 on page 33 072-541-1 O-ring - 118-FKM 1
Figure 30 on page 35 072-578-1 O-ring - 225-FKM 1
Figure 30 on page 35 072-685-1 O-ring - 114-FKM 2
Figure 29 on page 33 072-686-1 O-ring - 228-FKM 1
Figure 29 on page 33 072-720-1 O-ring - 928-FKM 3
Figure 29 on page 33 579005-001 O-ring - 343-FKM 1
Figure 29 on page 33 579005-002 O-ring - 344-FKM 1
Figure 29 on page 33 579005-003 O-ring - 345-FKM 1
Figure 21 on page 25 579005-004 O-ring - 117-FKM 2
Figure 21 on page 25 579005-005 O-ring - 121-FKM 4
Figure 30 on page 35 579005-006 O-ring - 231-FKM 1
Figure 41 on page 47 579005-007 O-ring - 014-FKM 1
Figure 41 on page 47 579005-009
O-ring - 903-FKM
1
Figure 6 on page 14,
Figure 28 on page 32, and
Figure 41 on page 47 072-690-1 O-ring - 015-FKM 2
Figure 26 on page 31 410127-001 Nut - flanged - M12x1.75-6H 2
Figure 41 on page 47 579014-002 Hitch pin 1
Appendix B 577013-835 O-ring gauge 1
rjpumps\fig52.eps
