Installation Installing the Pump
17

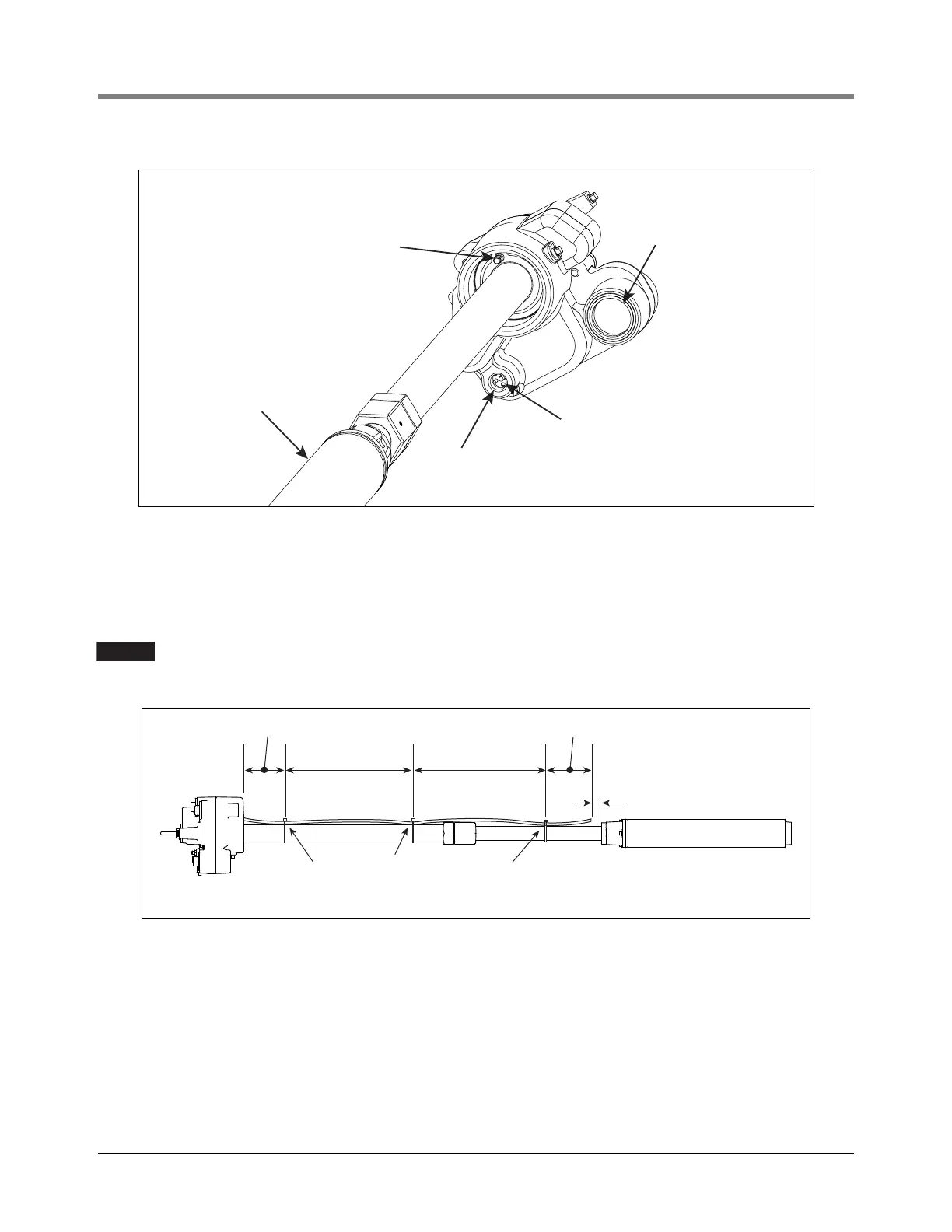

Figure 11. Locating Return Line Fitting On Packer
8. Lay the siphon return line tubing beside the column pipe. Stop 1 - 3 inches (25 - 76 mm) above the discharge
head.
9. Secure the siphon return line tubing to the column pipe with tie straps. Locate the tie straps approximately 6
inches (152 mm) from manifold, 6 inches from discharge head and in the middle of the tubing (see Figure 12).
Do not overtighten tie straps as a pinched or flattened return line will restrict flow, interfer-
ing with proper operation of siphon system.
Figure 12. Attaching Return Line Tubing To Pump
10. Carefully pull on the pigtail wires where they exit the packer wiring compartment. Cut pigtail wires
approximately 8 inches (200 mm) beyond top of packer. Visually inspect the wire insulation to make sure it is
undamaged.
11. There will be three wires to the male connector installed in the packer's housing and three from the three-wire
pigtail from the UMP
12. Strip insulation off all six wires 5/16 inches (8 mm).
rjpumps/fig33.eps
Siphon return line barbed fitting
2" discharge port
Power wiring compression
bushing
3/4”- 14 NPT
UMP
rjpumps/fig30.eps
1 - 3" (25 - 76 mm)
6" (151mm)
1/2 Distance1/2 Distance
Don't crimp tubing with tie straps
6" (151mm)
