Veeder-Root Red Jacket Quick-Set User Manual

Parts Lists Siphon Cartridge Kit Parts
51
Siphon Cartridge Kit Parts
Table 8 lists the 410151-001 Siphon Cartridge Kit & 410151-002 AG Siphon Cartridge Kit parts lists.
Check Valve Housing Kit Parts
Table 9 lists the 410152-001 Check Valve Housing Kit and 410152-002 High Pressure Check Valve Housing Kit
parts lists .

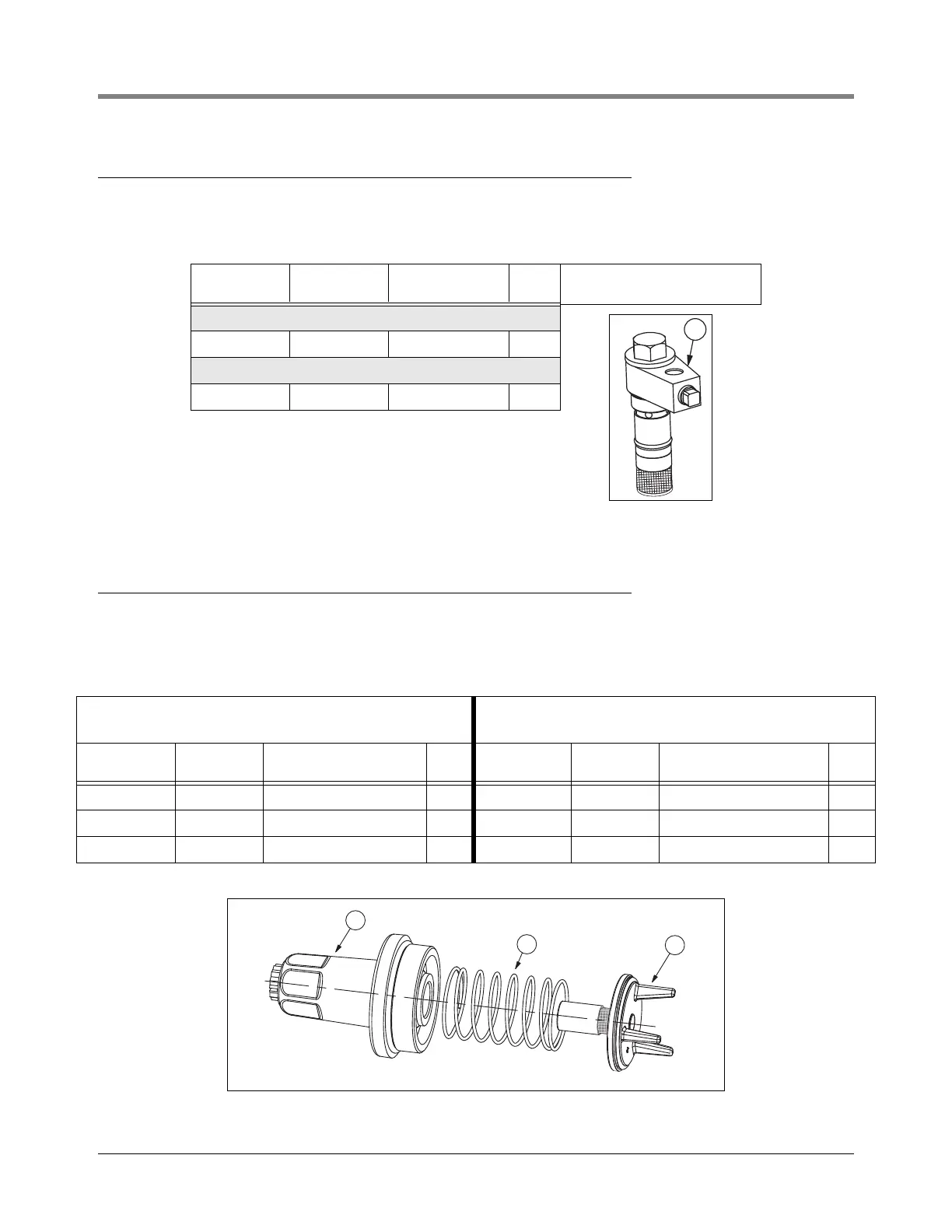

Figure 45. Check Valve Housing Kit
Table 8. Siphon Cartridge Kit Parts List
Item
(ref. Figure 44) Part No. Description Qty. Part Illustratiion
Siphon Cartridge Kit
Figure 44. Siphon Cartridge Kit
1 410255-001 Siphon assembly 1
AG Siphon Cartridge Kit
1 410255-002 AG Siphon assembly 1
Table 9. Check Valve Housing Kits Parts Lists
P/N 410152-001 Check Valve
Housing Kit Parts List
P/N 410152-002 High Pressure Check Valve
Housing Kit Parts List
Item
(ref. Figure 45) Part No. Description Qty.
Item
(ref. Figure 45) Part No. Description Qty.
1 410016-002 Housing assembly - chk/rlf vlv 1 1 410016-002 Housing assembly - chk/rlf vlv 1
2 410753-001 Spring 1 2 410753-001 Spring 1
3 410022-005 Poppet assembly - chk/rlf vlv 1 3 410022-006 Poppet assembly - chk/rlf vlv 1
11
r
1
1
2
2
3
3
r
jp
um
p
s\fi
g
50.e
p
s
