13
Installation
Attaching the UMP
Table 6 lists the applicable UMPs for each packer/manifold.
The UMP is identified by the model number marked on the shell. The packer/manifold with piping is identified by
the catalog number on the packer nameplate. The hardware kit consists of four 5/16-18 x 1” socket head cap
screws, four 5/16 lock washers and one discharge head gasket identified by the kit number 144-327-4 (P/N
410818-001 for AG version) marked on the bag (see Figure 5).
The UMP attaches to the packer/manifold column piping discharge head using hardware kit number 144-327-4
(P/N 410818-001 for AG version).
When servicing unit, use non-sparking tools.

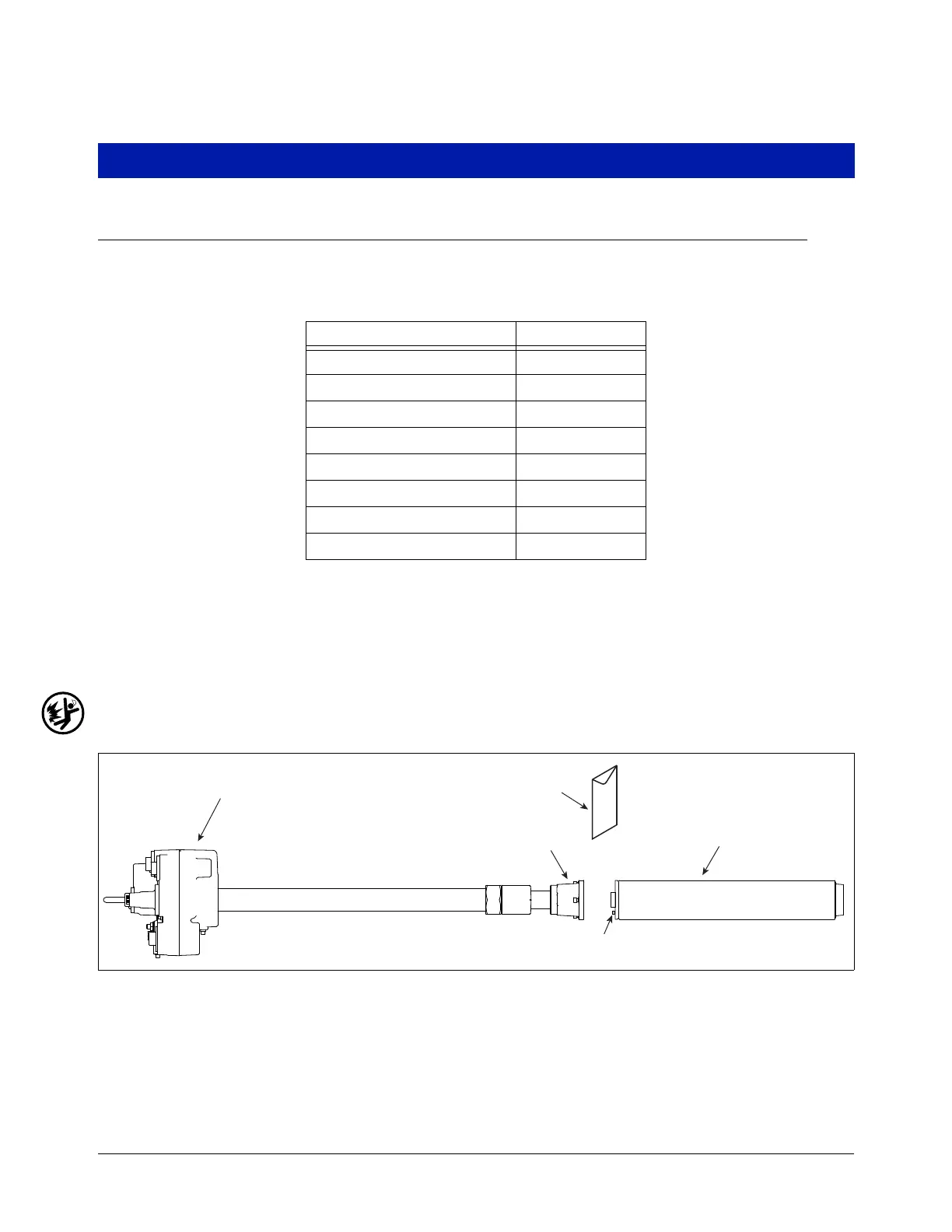

Figure 5. Packer/Manifold With Piping Attaching To UMP
1. Visually inspect the pigtail connector in the end of the discharge head. Be certain the pigtail connector is
seated in its socket and its index tab is in the socket’s notch (see Figure 6).
Table 6. UMP And Packer/Manifold Combinations
Packer/Manifold UMP
AGP200S17-4RJ1, RJ2, RJ3 AGUMP200S17-4
AGP75S17-3RJ1, RJ2, RJ3 AGUMP75S17-3
P75U17-3RJ1, RJ2, RJ3 UMP75U17-3
AGP150S17-3RJ1, RJ2, RJ3 AGUMP150S17-3
P150U17-3RJ1, RJ2, RJ3 UMP150U17-3
X4AGP150S17RJ1, RJ2, RJ3 X4AGUMP150S17
X4P150U17RJ1, RJ2, RJ3 X4UMP150U17
P200U17-4RJ1, RJ2, RJ3 UMP200U17-4
Ump
rjpumps/fig5.eps
Packer/manifold
with piping
Kit
Discharge head
Alignment dowel
