POS App Guide DIM Installation Examples

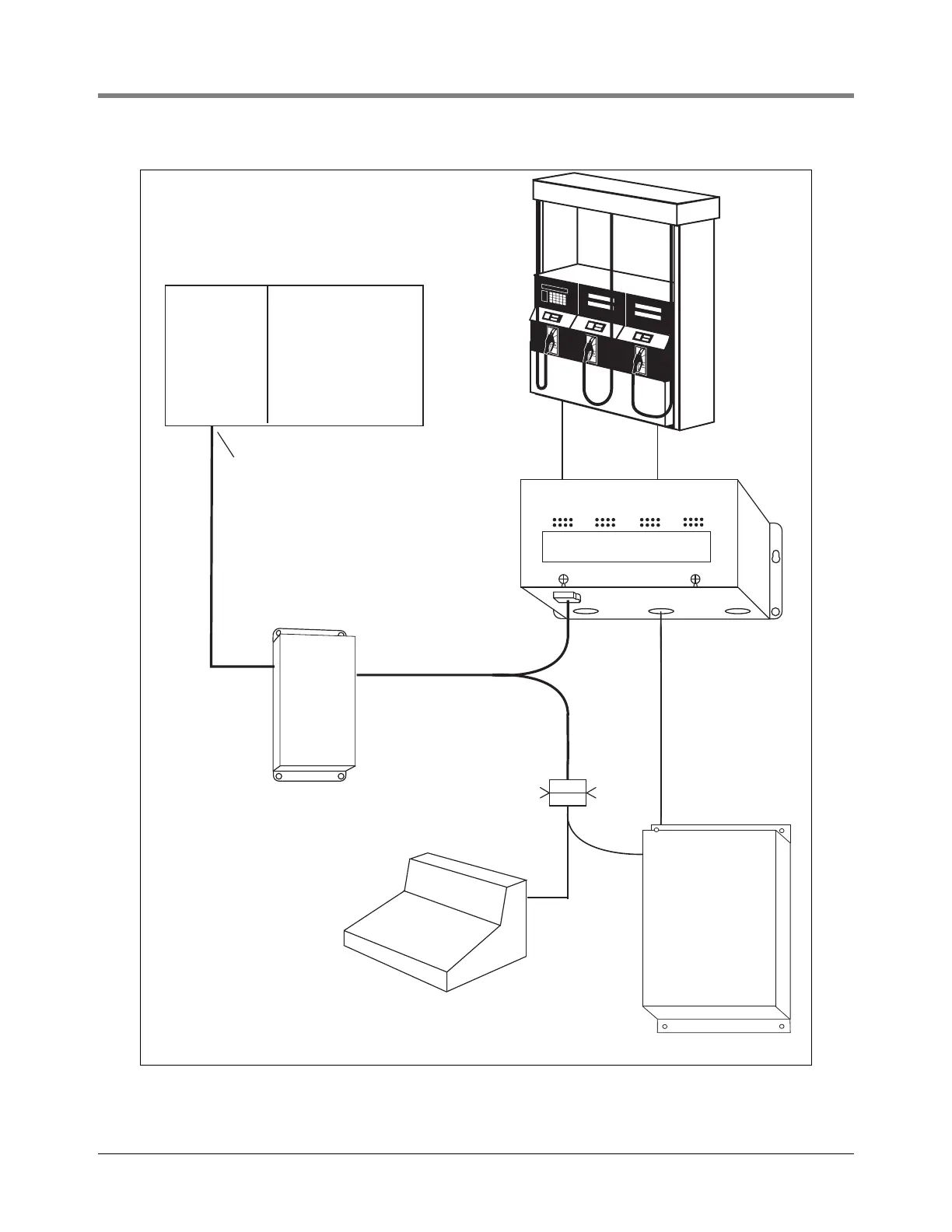

Figure 7. AutoGas 510 CRIND Controller With Current Loop Interface

Communications Cable

"Y" cable & 2

9-pin "D" Style

connectors

POS

401-12.eps

Universal Distribution Box

AutoGas 510 CRIND

Controller with

Current Loop Dispenser

Interface Module

CRIND

Loop

Current

Loop

CRIND

Loop

Current

Loop

Cable

Adapter

Box

Connects

to CDIM

TLS Console

Table of Contents3
Business Inventory Reconciliation (BIR)6
- In-Station Diagnostics (ISD) - TLS-350R Consoles Only6
TLS-350R BIR and ISD Capabilities6
- TLS-350R with BIR Only and TLS-350R with BIR and ISD6
- TLS-350R with ISD Only6
- Manifolded Tank Applications for BIR6
TLS-350R System Requirements for BIR and ISD7
- Business Inventory Reconciliation7
- In-Station Diagnostics7
TLS-450/TLS-450PLUS BIR Capabilities7
- Manifolded Tank Applications8
- TLS-450/TLS-450PLUS System Requirements for BIR8
Supported POS Systems8
- Other Applications9
DIM Descriptions10
Mechanical Dispenser Interface Module (MDIM) & Low Voltage Dispenser Interface Module (LVDIM)10
Electronic Dispenser Interface Module (EDIM)10
Current Loop Dispenser Interface Module (CDIM)10
LAN Dispenser Interface Module (LDIM) - TLS-350R Only10
International Forecourt Standards Forum Dispenser Interface Module (IFSF) - TLS-350R, TLS-450PLUS11
TCP/IP DIM Module (TDIM) - TLS-350R11
Tcp/Ip DIM (Tdim) - Tls-450/Tls-450Plus11
DIM and Installation Kit Ordering Guide12
Figure 1. Simplified DIM Connections to Various Dispensing Systems20
Bennett POS System21
- Veeder-Root Software Requirements21
- Veeder-Root Hardware Requirements (Ref. Table 2)21
- Bennett System Limitations21
- Installation Notes21
- Figure 2. Bennett Pump Fuelomat Dispenser Interface Installation Diagram22
Gilbarco TCRG, TCRG2, T-11, and T-12 POS Systems23
- TLS Console Software Requirements23
- Veeder-Root Hardware Requirements (Ref. Table 2)23
- Specific Limitations23
- Wiring Diagram for a Transac Current Loop Interface24
- Figure 3. Transac Series Current Loop Interface24
- Wiring Diagram for an Excentus Current Loop Interface25
- Figure 4. Excentus Current Loop Interface25
Gilbarco TS-1000 POS and PAM Systems26
- TLS Console Software Requirements26
- Veeder-Root Hardware Requirements (Ref. Table 2)26
- Gilbarco POS and Dispensing System Requirements26
- Specific Limitations26
- Wiring to a Universal Distribution Box Interface26
- Figure 5. Universal Distribution Box Interface27
Gilbarco G-Site™ POS Systems28
- TLS Console Software Requirements28
- Veeder-Root Hardware Requirements (Ref. Table 2)28
- Specific Limitations28
- Wiring Diagram28
- Figure 6. Example G-Site Installations29
Autogas Storemaster and Gilbarco Dispenser Systems30
- TLS Console Software Requirements30
- Veeder-Root Hardware Requirements (Ref. Table 2)30
- Gilbarco POS and Dispensing System Requirements30
- System Limitations30
- Installation Notes30
- Figure 7. Autogas 510 CRIND Controller with Current Loop Interface31
- Figure 8. Autogas 510 CRIND Controller with Serial Interface32
- Figure 9. Autogas 510 CRIND Controller33
Gilbarco Smartcrind Dispenser Systems35
- TLS Console Software Requirements35
- Veeder-Root Hardware Requirements (Ref. Table 2)35
- System Limitations35
- Installation Notes35
Tokheim Dispensing Systems36
- TLS Console Software Requirements36
- Veeder-Root Hardware Requirements36
- Tokheim DHC Requirements36
- Specific Limitations36
- Other POS Consoles36
- Installation Notes36
Wayne Dispensing Systems39
- TLS Console Software Requirements39
- Veeder-Root Hardware Requirements39
- POS System Requirements and Limitations39
- Supported Wayne Systems39
- Supported Wayne POS Terminals39
- Installation Notes40
Schlumberger POS Systems42
- TLS Console Software Requirements42
- Veeder-Root Hardware Requirements (Ref. Table 2)42
- System Limitations42
- Micromax/Allied Hardware Requirements42
- Installation Notes42
Gasboy CFN Systems45
- TLS Console Software Requirements45
- Veeder-Root Hardware Requirements (Ref. Table 2)45
- Gasboy System Requirements for BIR Interface45
- Connecting to the Site Controller II45
BIR Protocol DIM47
- POS System Requirements and Limitations47
Mechanical Dispensers48
- TLS-350 MDIM Applications48
- TLS-450/TLS-450PLUS MDIM Applications48
LVDIM Applications53
- Petrovend System 2 Controller53
- Kraus Micon 200 Electronic Dispensers55
- Wiring to Gasboy 9800 or Tokheim 2600 Series Electronic Dispensers57
