Veeder-Root TLS-350R PLUS Application Guide

POS App Guide DIM Installation Examples
30
Gilbarco SmartCrind Dispenser Systems
TLS CONSOLE SOFTWARE REQUIREMENTS
TLS-350R with BIR Software Requirements
• System software Version 17 (or higher)
• DIM software 349806-001 (or higher)
TLS-450/TLS-450PLUS with BIR Software Requirements
• TLS-450 System software Version 2.X (or higher)
• TLS-450PLUS System software Version 6.X (or higher)
• BIR option required (TLS-450)
VEEDER-ROOT HARDWARE REQUIREMENTS (REF. TABLE 2)
The following equipment is required to interface the TLS to the SmartCrind network:
• One TCP/IP (TDIM) Interface Module
• Ethernet cable
SYSTEM LIMITATIONS
• Up to Gilbarco single product or blending fueling positions are supported.
• Only Gilbarco SmartCrind dispensers are supported.
INSTALLATION NOTES

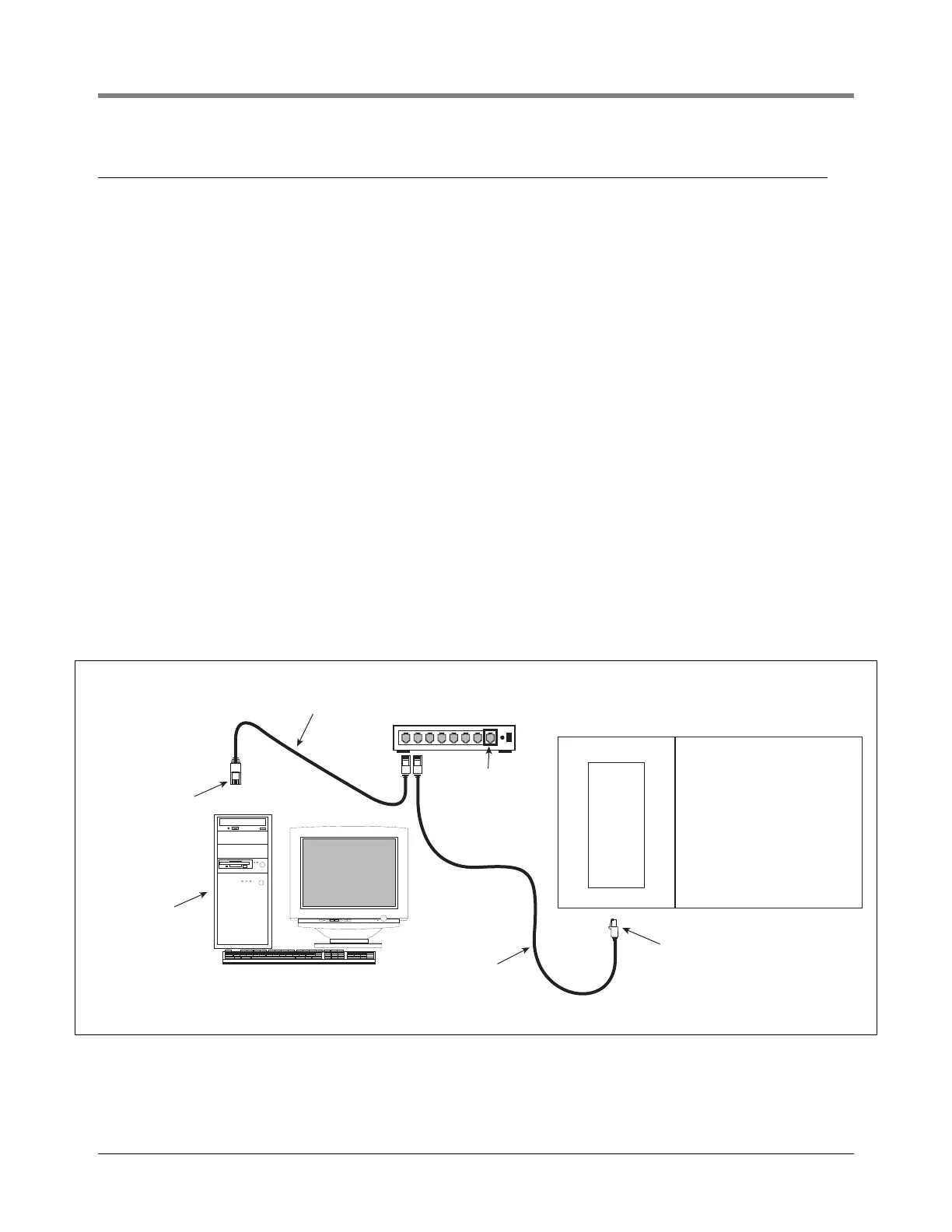

Example wiring diagrams are shown in Figure 11 below.
Figure 11. SmartCrind Installation
401-16.eps
PC (e.g.,
back office)
Plugs into PC
Ethernet card
Ethernet cable
Ethernet
cable
TLS Console
Plugs into RJ45
connector
in TDIM module
Hub
Do not
use uplink
connector!
X
