Veeder-Root TLS-350R PLUS Application Guide

POS App Guide DIM Installation Examples
50
KRAUS MICON 200 ELECTRONIC DISPENSERS
Caution! Kraus Micon Applications Are Not U.L. APPROVED.
Each dispenser must provide “volume” pulser output to LVDIM. Installer will have to pull special shielded, UL/CSA
type #18 AWG RS-422/485 style, gas, oil, and fire resistant twisted pairs in metal conduit.
LVDIM is connected to the DC junction box inside the Micon 200 electronic dispenser head and thence to the
pulsers.

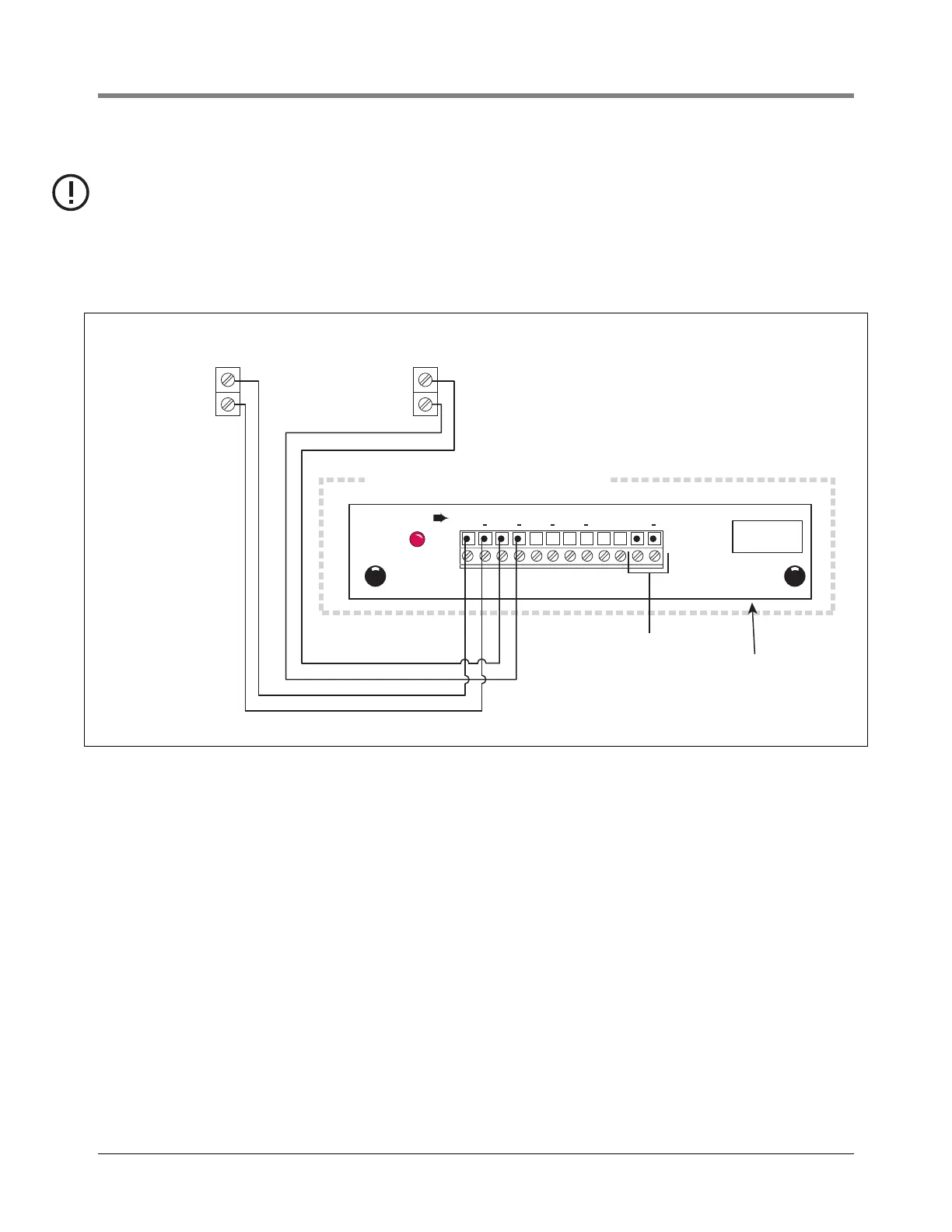

Figure 31. TLS-350 LVDIM Installation Kraus Micon 200 Series Electronic Dispensers (Not UL Approved)
401-32.eps
Blue #18 AWG
(Volume Pulser Output)
Micon 200
Electronic Dispenser Head
Yellow #18 AWG
(Pulser Common Line)
Blue #18 AWG
(Volume Pulser Output)
Micon 200
Electronic Dispenser Head
Yellow #18 AWG
(Pulser Common Line)
Not
Connected
Set SW1 (on underside of
module's PC board) to the
INTERNAL position
LOW VOLTAGE DISPENSER INTERFACE MODULE
INPUT RATING
30 VDC
P1 P2 P3 P4 SOURCE
PULSER
++++ +
LVDIM in Power Bay of TLS-350R Console
