Mechanical Dispensers
TLS-350 MDIM APPLICATIONS
Up to 4 single product fueling positions are supported per module, and a maximum of 8 modules (32 fueling
positions) per system are supported. Requires a pulser/totalizer or pulse transmitter and a safe barrier device for
each fueling position.
Only Veeder-Root mechanical dispensers are supported.
TLS-450/TLS-450PLUS MDIM APPLICATIONS
Up to 12 single product fueling positions are supported per module, and a maximum of 4 modules (48 fueling
positions) per system are supported. Requires a pulser/totalizer or pulse transmitter and a safe barrier device for
each fueling position.
Only Veeder-Root mechanical dispensers are supported.
Typical Wiring to Mechanical Dispensers

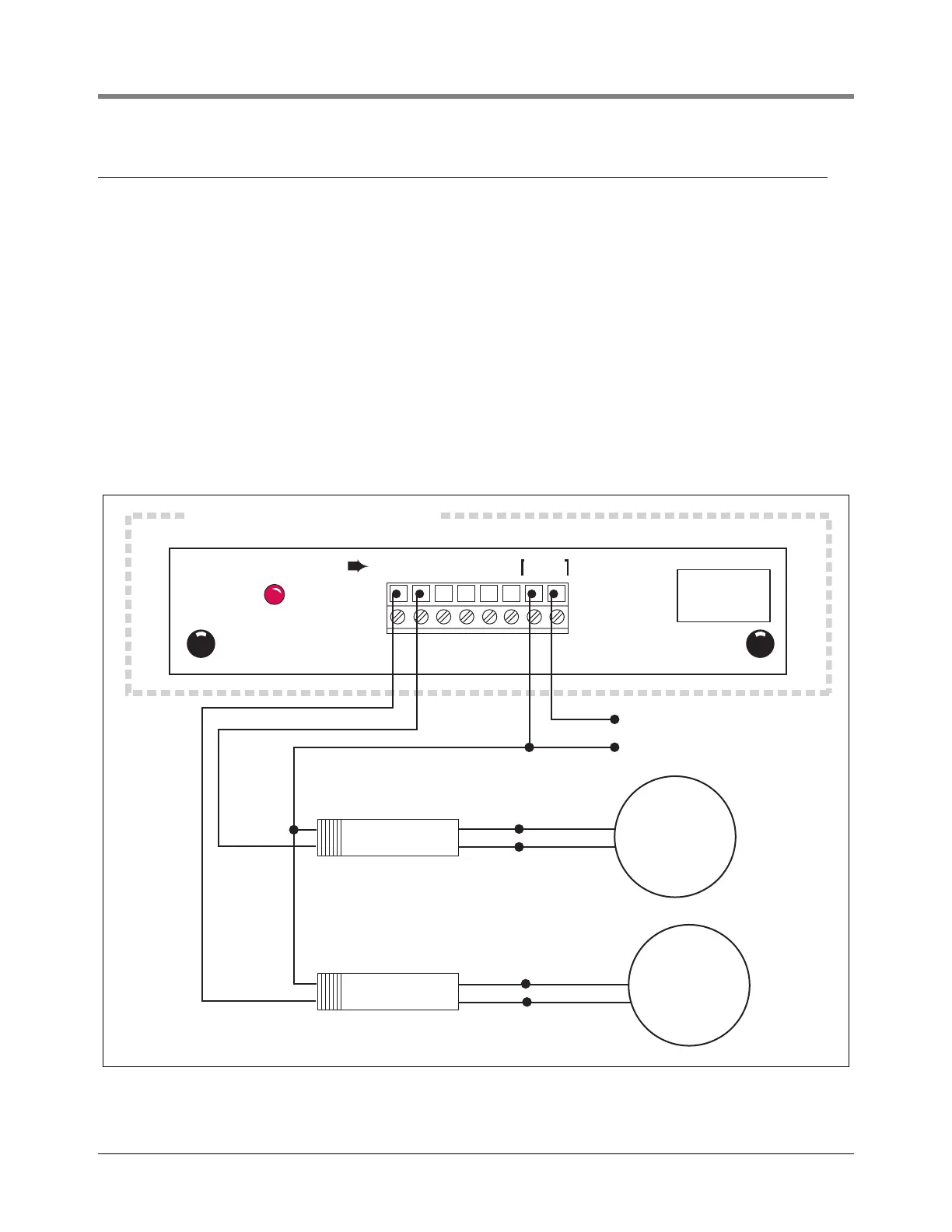

Figure 24. Wiring Diagram Of TLS-350 MDIM Using Two 1871/7697 Series Pulse Transmitters And Required Barriers
MECHANICAL DISPENSER INTERFACE MODULE
401-28.eps
Barrier
P/N: 7859
Barrier
P/N: 7859
769780-012
Pulse
Transmitter
769780-012
Pulse
Transmitter
Blue
Black
Orange/Blue
Orange/Blue
Orange
Blue
Black
Orange
115 Vac Line (Black)
Neutral (White)
White
White
Orange
Orange
170 Vdc
Note: Barriers may come with
a 2 position connector.
INPUT RATING
120 VAC
.15 AMP MAX
P1 P2 P3 P4 N L1
PULSER
120 VAC
MDIM in Power Bay of Console
