Veeder-Root TLS-350R PLUS Application Guide

POS App Guide DIM Installation Examples
36

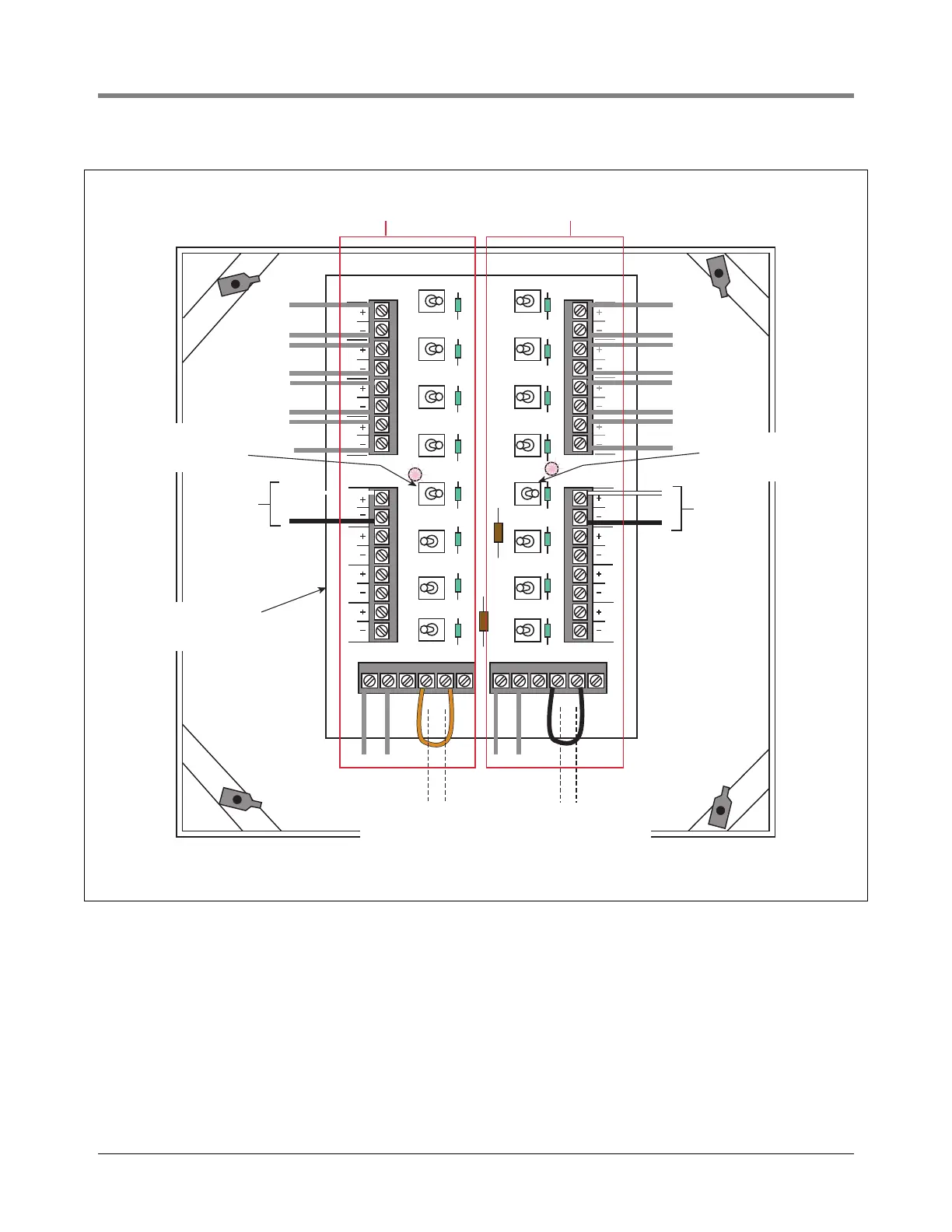

Figure 17. Example CAB Connections In Wayne Nucleus Data Box (TLS-350R Only)
TB5
TB3
TB1
TB4
TB2
123456
Data
In
Data
Out
TB6
123456
Data
In
Data
Out
To CAB
marked
'Left'
To CAB
marked
'Right'
Left Current Loop Right Current Loop
Set adjacent toggle switch
to right ('Auto' position)
Set adjacent toggle switch
to right ('Auto' position)
Wht
Blk
Wht
Blk
Alternative
'Left' CAB connections
(see text)
Alternative
'Right' CAB connections
(see text)
Wayne Data Box PC board
( cover plate removed)
401-21.eps
