Introduction MAG-XL Flex Probe Operating Parameters
7
should be 10 inches, actual length dependent on probe insertion length.
IMPORTANT! The opening selected for the MAG-XL Flex Probe must be as far as possible from the
tank inlet piping.
• The TLS RF console and receiver are installed.
• The TLS console is installed. Note: the MAG-XL Flex Probe is only compatible with TLS Consoles installed with
Wireless 2 (2-Way) components supplied by V-R. The MAG-XL Flex Probe is for inventory only applications.
Leak detection is not available.
• You cannot mix Wireless 1 and Wireless 2 components on the same site or system. In each Wireless 2 System,
there is only one Receiver and one optional Repeater.
• The combination of the MAG-XL Flex Probe, XL Transmitter and the Battery Pack form an intrinsically safe
system and as such must be installed according to the instructions listed in this manual.

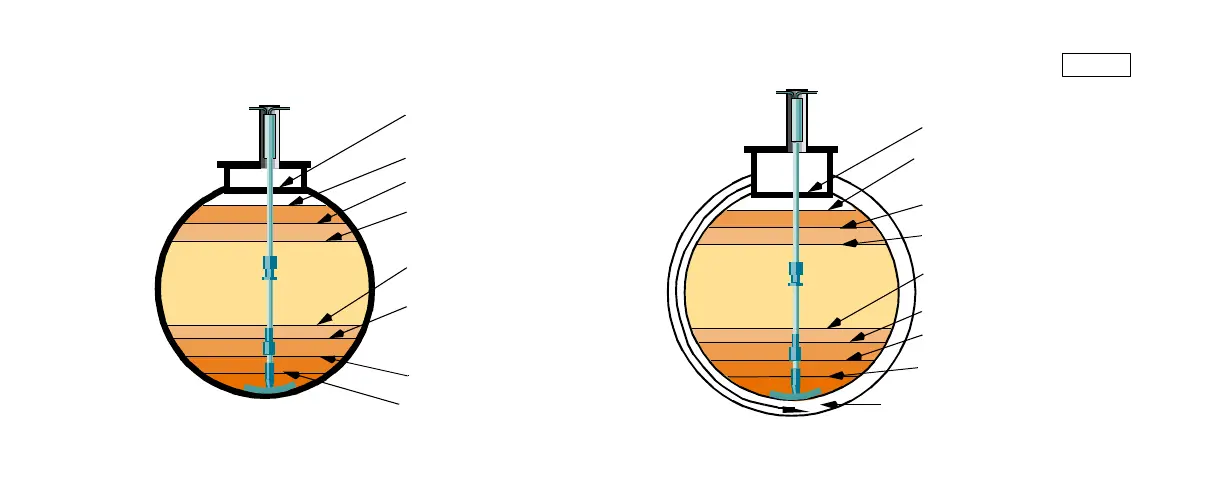

MAG-XL Flex Probe Operating Parameters
MAG-XL Flex Probe Limitations
MAG-XL Flex Probe Weights
Maximum Limits
Console Series
TLS-450/TLS-XB TLS4/8601 TLS-350 TLS-300 TLS2
Probe Length in Feet 54.5 54.5 54.5 54.5 32
Probe Length in Inches 654 654 654 654 384
Probe Length in Centime-
ters
1,661 1,661 1,661 1,661 975
Tank Volume in Gallons 2,641,720 2,641,720 999,999 999,999 260,000
Tank Volume in Litres 9,999,999 9,999,999 3,785,408 3,785,408 984,207
Maximum Number of Mag-
XL Probes per Console
32 12 16 2 or 4 6
Console Software Oldest
Compatible Version
1C 1 22 22 1
Weight Part Number Pounds Kilograms
889001-008 4.56 2.07
889001-009 6.38 2.89
889001-010 10.02 4.55
889001-011 12.75 5.79
889001-012 14.58 6.61
889001-013 16.40 7.44
