Veeder-Root TLS-IB User Manual

TLS-IB Site Prep Manual Determining Length of Probe When Used in a Dedicated Riser
19
3. Subtract (B) from (A) to determine the correct tank diameter (C). Round tank diameter (C) up to next highest inch
and order this length probe.
4. Refer to the Standard and custom Mag Probe lengths shown in Figure 14 on page 19. Custom Mag Probe lengths are
available at extra cost.

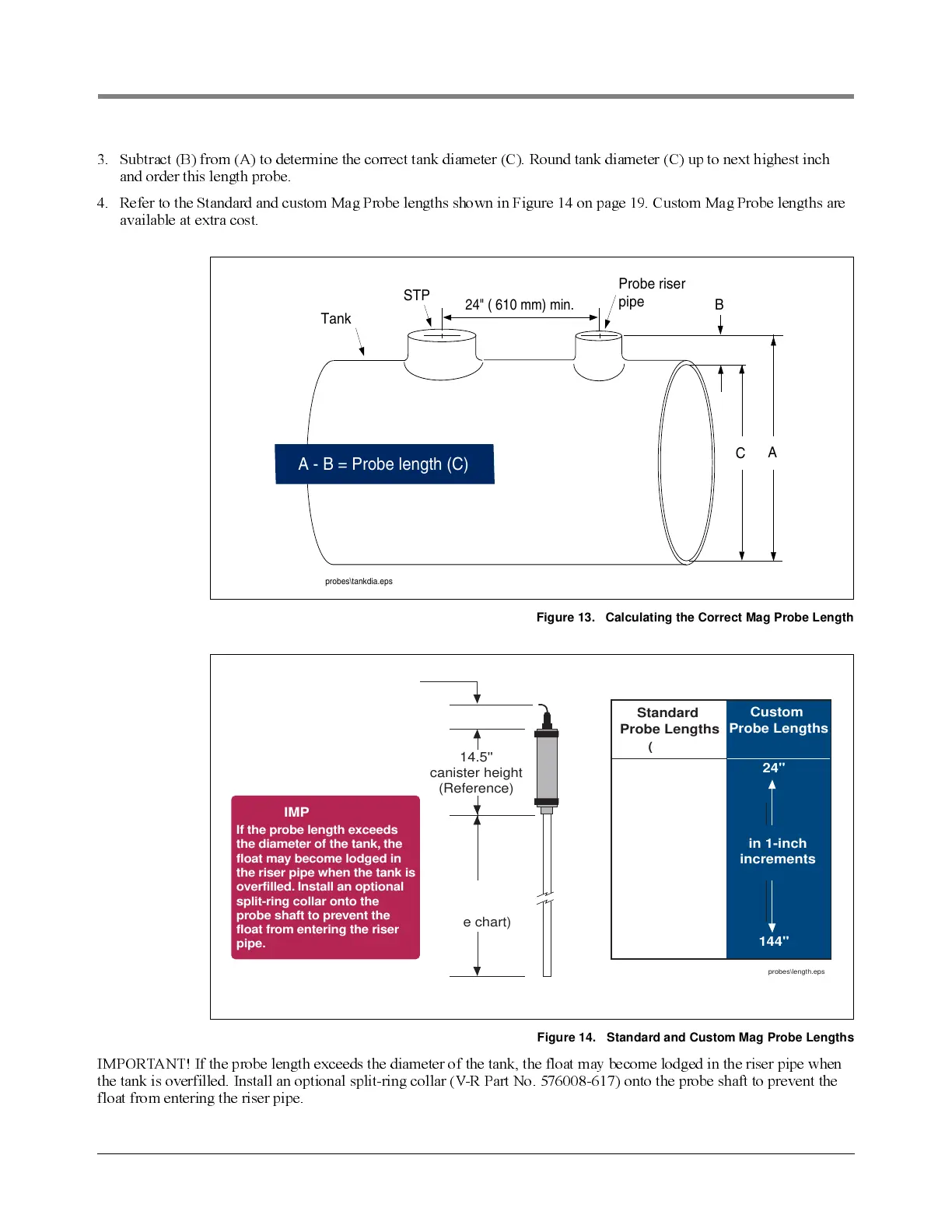

Figure 13. Calculating the Correct Mag Probe Length
Figure 14. Standard and Custom Mag Probe Lengths
IMPORTANT! If the probe length exceeds the diameter of the tank, the float may become lodged in the riser pipe when
th e ta nk is o v erfille d . In s ta ll an o pti on a l spli t -rin g col la r (V-R Part No . 576008-617) on to th e probe sha f t to preve n t th e
float from entering the riser pipe.
Probe riser
pipe
Tank
B
A
C
STP
probes\tankdia.eps
A - B = Probe length (C)
24" ( 610 mm) min.
14.5''
canister height
(Reference)
probes\length.eps
Standard
Probe Lengths
Custom
Probe Length
s
(ft/in.)
4'-0"
5'-0"
5'-4"
6'-0"
7'-0"
7'-6"'
8'-0"
9'-0"
10'-0"
10'-6"
11'-0"
12'-0"
(in.)
Probe
length
(see chart)
24"
144"
in 1-inch
increments
If the probe length exceeds
the diameter of the tank, the
float may become lodged in
the riser pipe when the tank is
overfilled. Install an optional
split-ring collar onto the
probe shaft to prevent the
float from entering the riser
pipe.
IMPORTANT
3" minimum distance
required between canister
and riser cap for cable
connector. (Reference)
