TLS-IB Site Prep Manual Signal Input Specifications
41

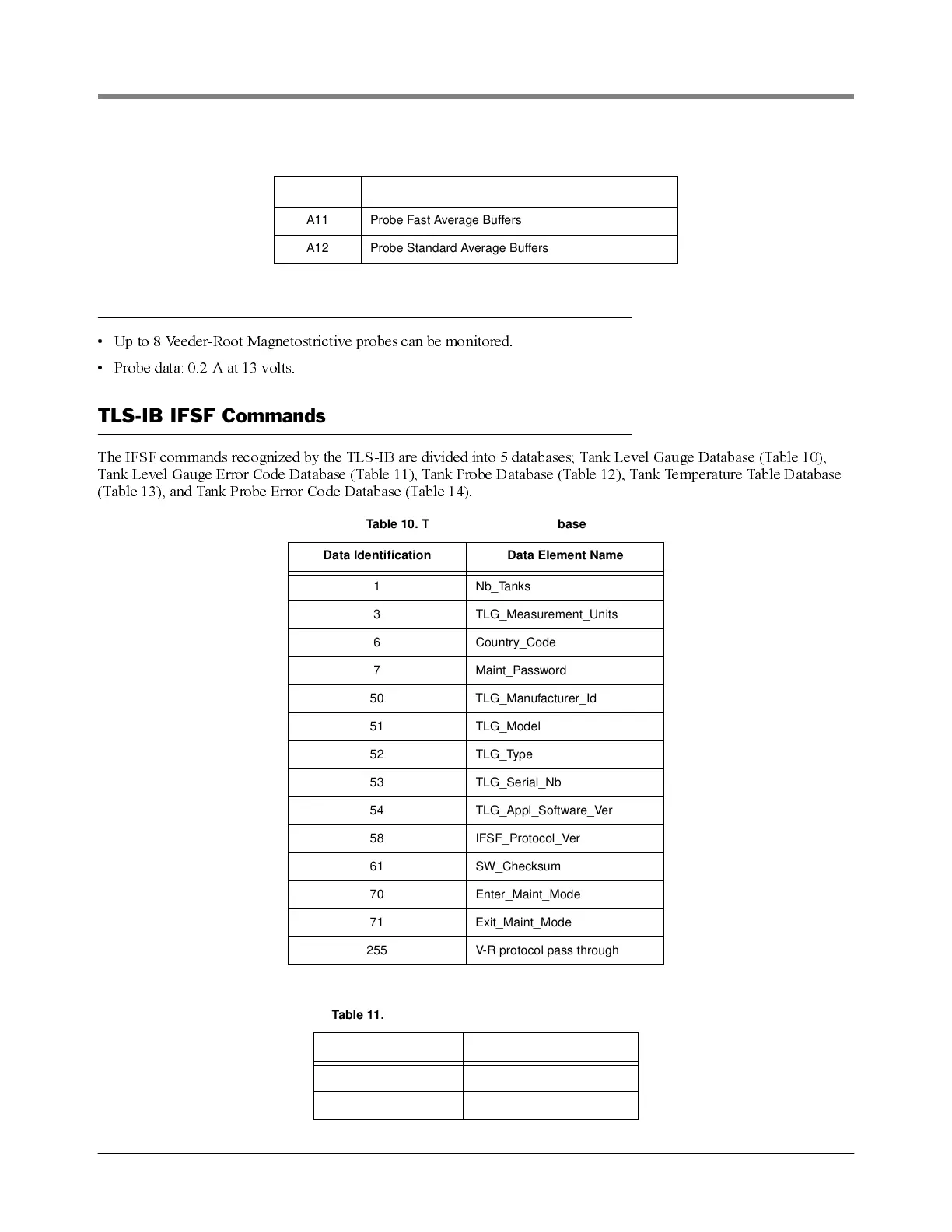

Signal Input Specifications
• Up to 8 Veeder-Root Magnetostrictive probes can be monitored.
• Probe data: 0.2 A at 13 volts.
TLS-IB IFSF Commands
The IFSF commands recognized by the TLS-IB are divided into 5 databases; Tank Level Gauge Database (Table 10),
Tank Level Gauge Error Code Database (Table 11), Tank Probe Database (Table 12), Tank Temperature Table Database
(Table 13), and Tank Probe Error Code Database (Table 14).
A11 Probe Fast Average Buffers
A12 Probe Standard Average Buffers
Table 10. Tank Level Gauge Database
Data Identification Data Element Name
1 Nb_Tanks
3 TLG_Measurement_Units
6 Country_Code
7 Maint_Password
50 TLG_Manufacturer_Id
51 TLG_Model
52 TLG_Type
53 TLG_Serial_Nb
54 TLG_Appl_Software_Ver
58 IFSF_Protocol_Ver
61 SW_Checksum
70 Enter_Maint_Mode
71 Exit_Maint_Mode
255 V-R protocol pass through
Table 11. Tank Level Gauge Error Code Database
Data Identification Data Element Name
1 TLG_Error_Type
3 TLG_Error_Total
Table 9. TLS-IB Serial Commands
Command Description
