TLS-IB Site Prep Manual Optional Kits for Series Mag Probe Installations
20
Optional Kits for Series Mag Probe Installations
KIT REQUIRED FOR AN AST INSTALLATION
An additional kit is needed to install Mag probes into an above ground storage tank (AST). This kit contains a length of
flexible conduit, connectors, etc., for easier probe access. The kit contents are listed in Table 4 and shown in Figure 15
below.

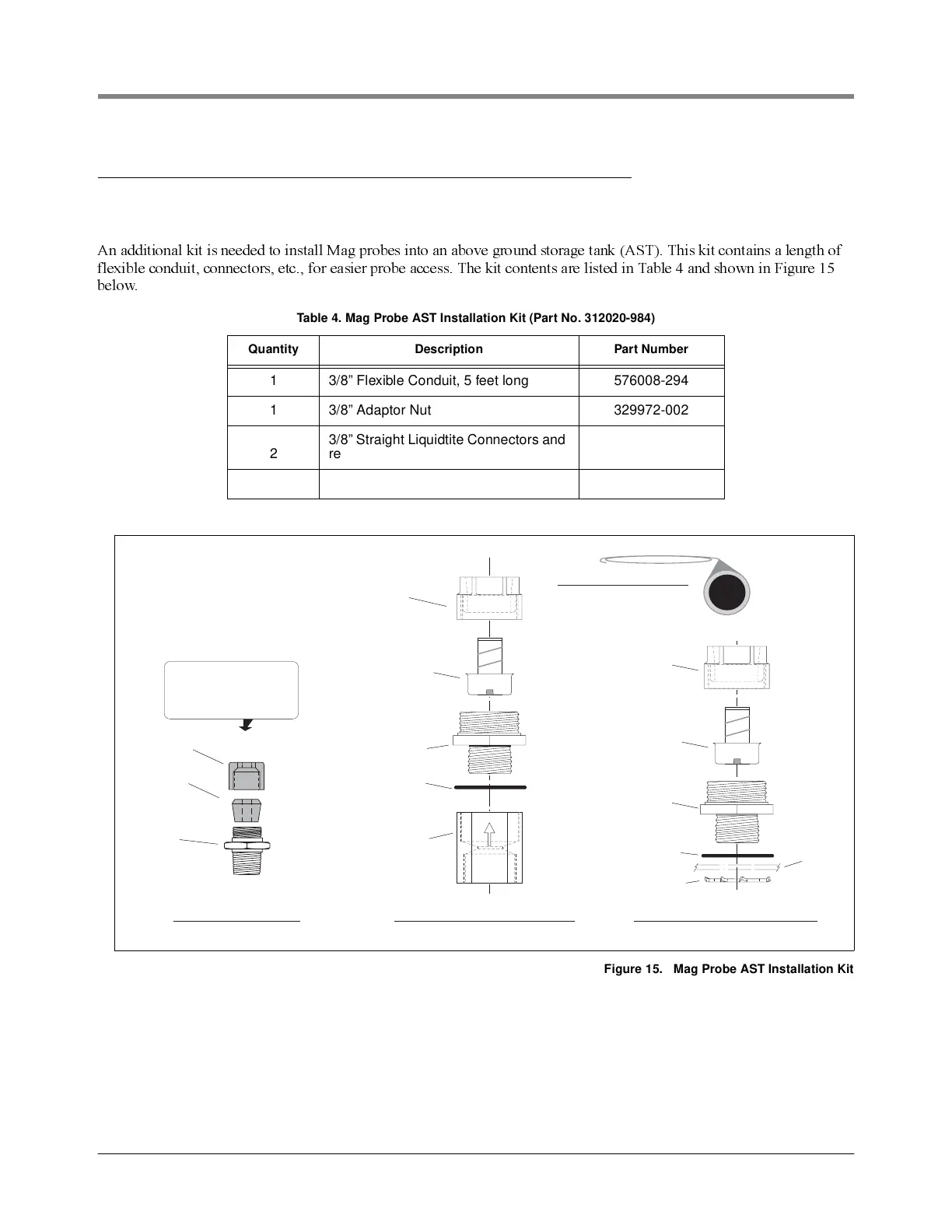

Figure 15. Mag Probe AST Installation Kit
Table 4. Mag Probe AST Installation Kit (Part No. 312020-984)
Quantity Description Part Number
1 3/8” Flexible Conduit, 5 feet long 576008-294
1 3/8” Adaptor Nut 329972-002
2
3/8” Straight Liquidtite Connectors and
related parts 576008-295
1 Cord Grip Group 331028-001
Locking nut
J-box
O-ring
Body
fitting
Ferrule
Nut
Nut
Ferrule
Body
fitting
O-ring
Adaptor Nut
(Connects to riser cap)
3/8'' Flexible Conduit
3/8'' Liquidtight Connector Assembly
At Riser Cap
3/8'' Liquidtight Connector Assembly
At J-Box
(Plastic coated 5-foot
length, 0.72 '' OD x 0.42'' ID)
probes/astkit.eps
Cord Grip Fitting
Body
Cord Grip
Nut
Note: watch orientation
of bevels and tapers
when assembling these
cord grip components.
Bushing
