Riser Cap Kit for Mag Probe Installations
The riser in which the Mag Probe is installed must be modified to allow the Mag Probe’s cable to exit the riser. This cap
does not support the Mag Probe itself, which rests on the tank bottom, but it does seal the riser pipe while allowing the
Mag Probe cable to pass through. Veeder-Root offers two Riser Cap kits, or you can modify the existing riser cap.
CAP AND CORD GRIP KIT
This Riser Cap kit (Table 5) contains a non-metallic cap which screws onto the 4-inch NPT riser (Figure 16) and which is
drilled and tapped for an included cord grip.

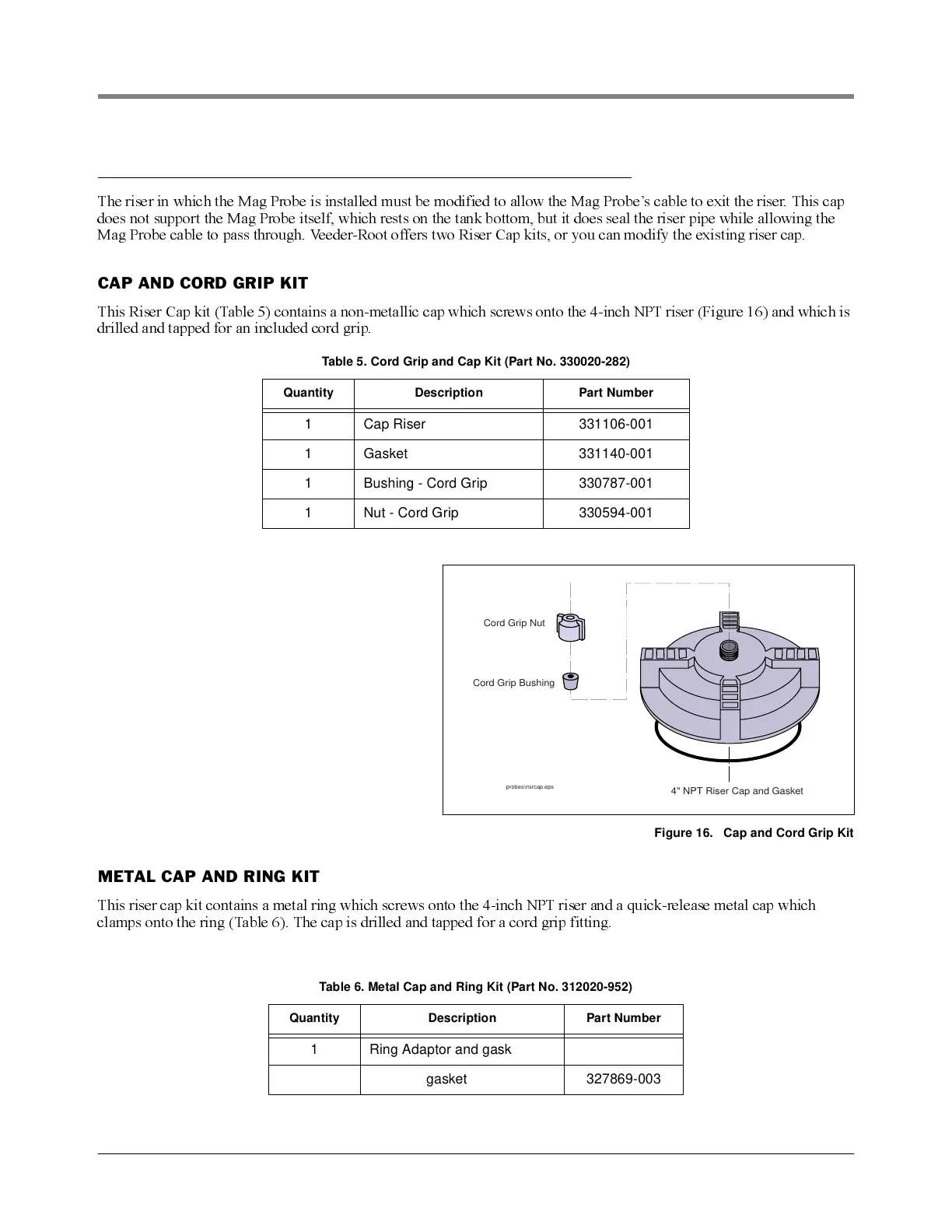

Figure 16. Cap and Cord Grip Kit
METAL CAP AND RING KIT
This riser cap kit contains a metal ring which screws onto the 4-inch NPT riser and a quick-release metal cap which
clamps onto the ring (Table 6). The cap is drilled and tapped for a cord grip fitting.
Table 5. Cord Grip and Cap Kit (Part No. 330020-282)
Quantity Description Part Number
1 Cap Riser 331106-001
1 Gasket 331140-001
1 Bushing - Cord Grip 330787-001
1 Nut - Cord Grip 330594-001
Table 6. Metal Cap and Ring Kit (Part No. 312020-952)
Quantity Description Part Number
1 Ring Adaptor and gasket 514100-332
1 Cap and gasket 327869-003
probes\risrcap.eps
4" NPT Riser Cap and Gasket
ord Grip Bushing
Cord Grip Nut
