TLS-IB Site Prep Manual PROM Chip Replacement (Software Upgrade)

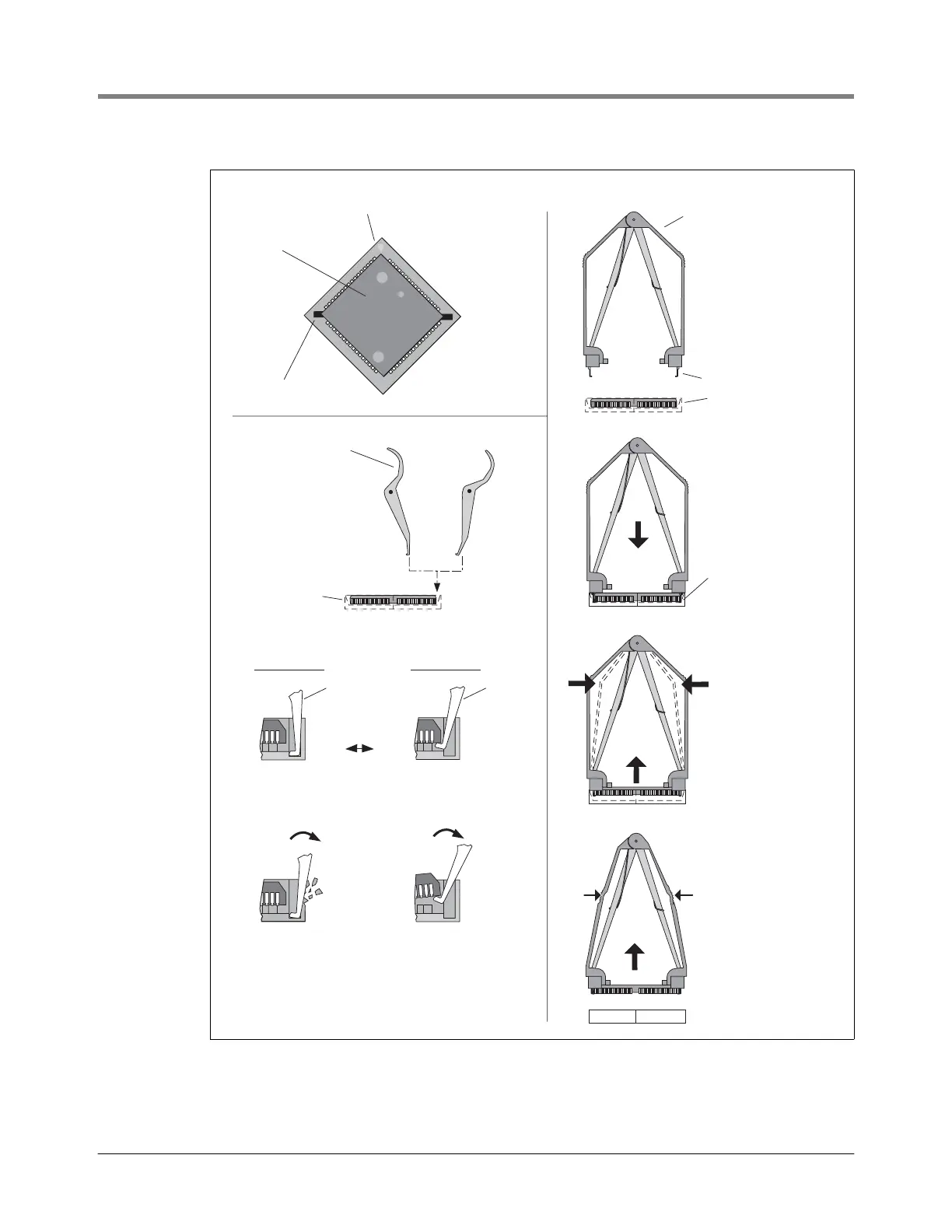

Figure 31. Removing PROM Chip

As you squeeze

the sides of the

removal tool with

your hand, the

hooks will lift the

chip out of the

socket.

Lifting hooks

lifting hooks

go down in

slots and under

chip until tool

rests on socket

Chip Removal Tool

(Digikey Part No. K293-N

or equivalent)

Chip socket

Removable

chip

Chip removal slots

Lift up chip when

it is free from

socket.

Chip socket

consoles\h8remov1.eps

Chip socket

Incorrect

Angle

Correct

Angle

INCORRECT

ANGLE

CORRECT

ANGLE

Hook down too

far and rests in

socket indent

Hook in correct

position under chip

When you rotate

tool, you will crack

the chip socket.

When you rotate tool,

you will lift the corner

of the chip out of the

socket (alternate

between two chip

removal slots)

hip Removal Tool

(

P/N 576036-022)

Tool Tool

Cutaway of

chip in socket
