Vertical Pipeline, diameter 1.97 … 23.62
in
(50 … 600 mm
)
For pipe diameters 1.97 ... 23.62 in (50 ... 600 mm), a straight radiation path is
possible. Mount the radiometric sensor either horizontally or vertically.
Figure 4.5
Vertical Pipeline, 30°, diameter 1.97 … 23.62
in (
50 … 600 mm
)

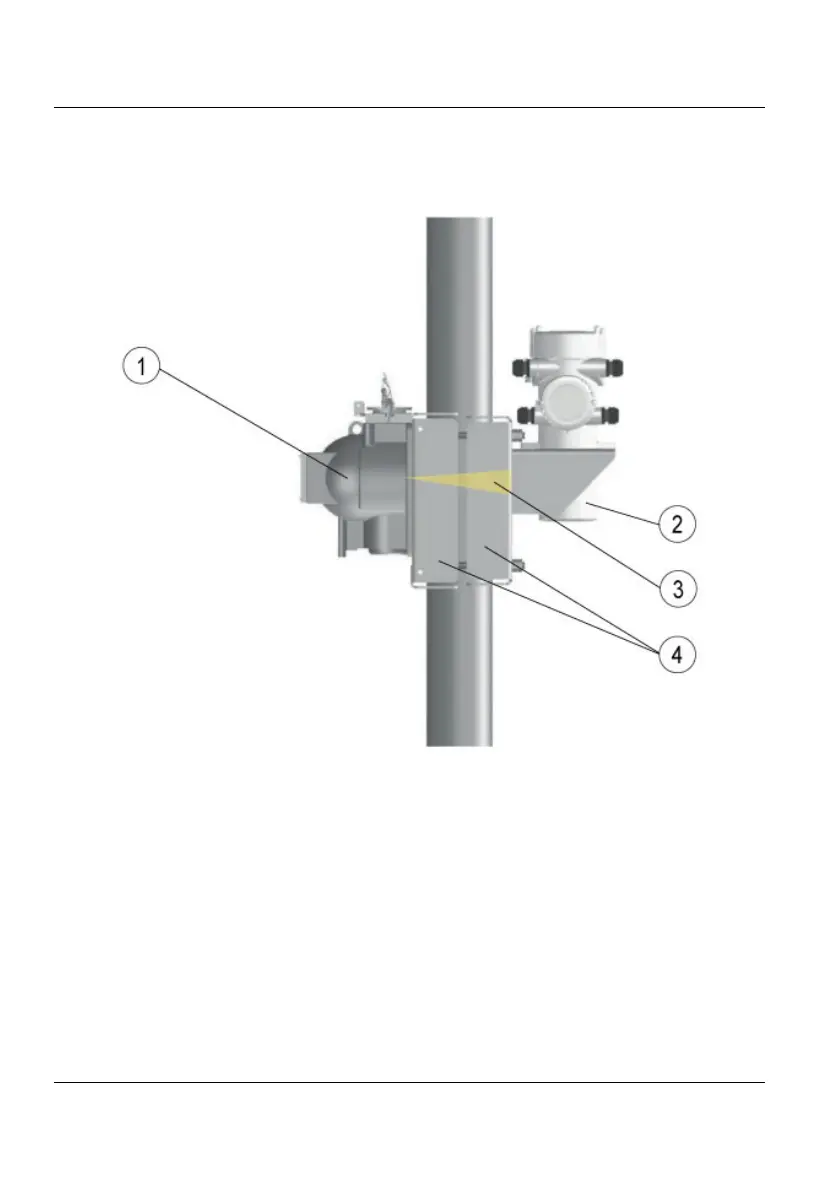

1. Source Holder (SHLD 2)
2. Radiometric Sensor (MINITRAC)
3.
Mounting horizontally, at right angles to container
4. Mounting Bracket
To Next Page
