3 Product description
VEGAPOINT 21 • Transistor (NPN/PNP)
56623-EN-210210
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument.
VEGAPOINT
s/n 1234567CP - 222 22X
IP65, TYPE 4X
MWP 25bar (2500kPa)
PEEK, FKM, 316L
2020
www.vega.com
D-77761 SCHILTACH,
Made in Germany
12...35V 1W
0044
PNP/NPN 250mA
5
6
7
8
9
10
12
11
1
13
4
2
3
12
3
+
-
123456

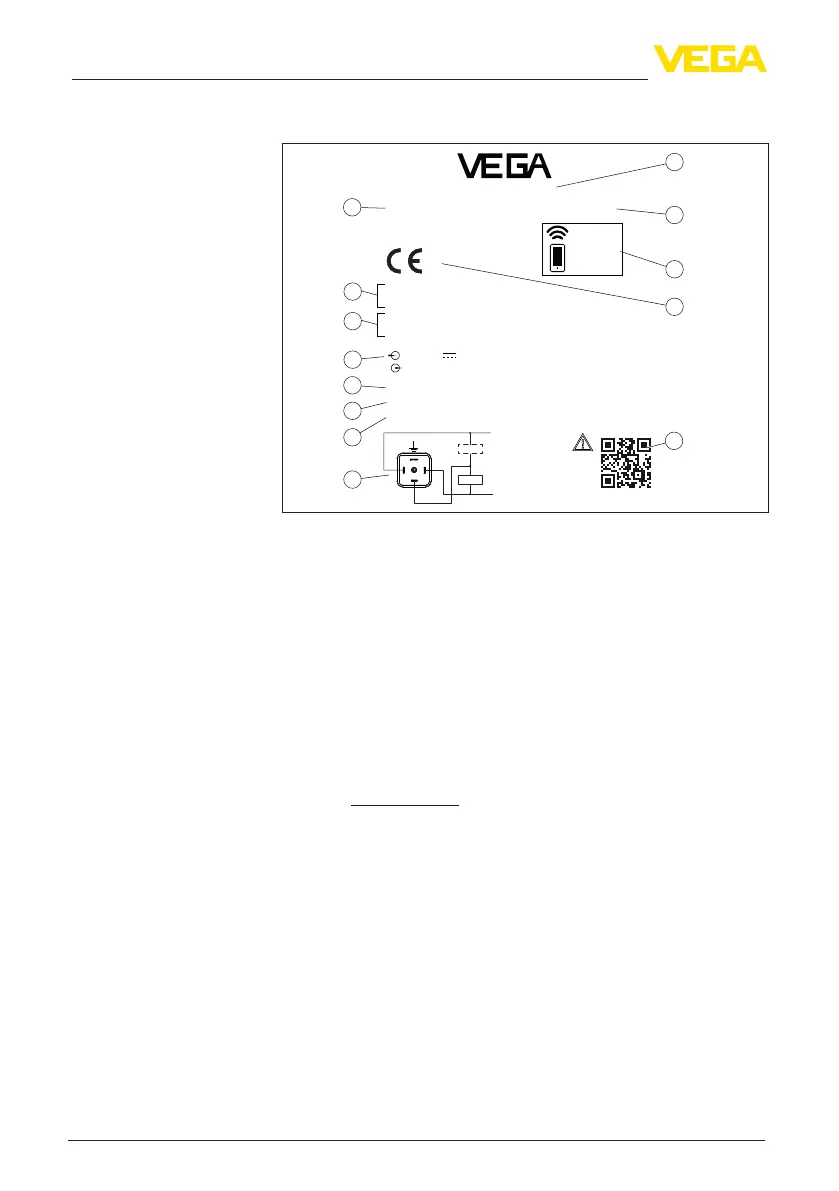

Fig. 2: Layout of the type label (example)
1 Order number
2 Approvals (option)
3 Warning instructions
4 Voltage supply and signal output
5 Protection rating
6 Permissible process pressure
7 Material, wetted parts
8 Connection diagram
9 QR code for device documentation
10 Conformities and approvals (optional)
11 Bluetooth access code
12 Serial number
13 Product name
Move to " www.vega.com"andenterinthesearcheldtheserial
number of your instrument.
Thereyoucanndthefollowinginformationabouttheinstrument:
•
Order data
•
Documentation
•
Software
Alternatively,youcanndallviayoursmartphone:
•
Scan the QR-code on the type label of the device or
•
Enter serial number manually in the VEGA Tools app (available
free of charge in the respective stores)
3.2 Principle of operation
The VEGAPOINT 21 is a capacitive point level sensor for point level
detection
