Solar Pump Controller Manual
11

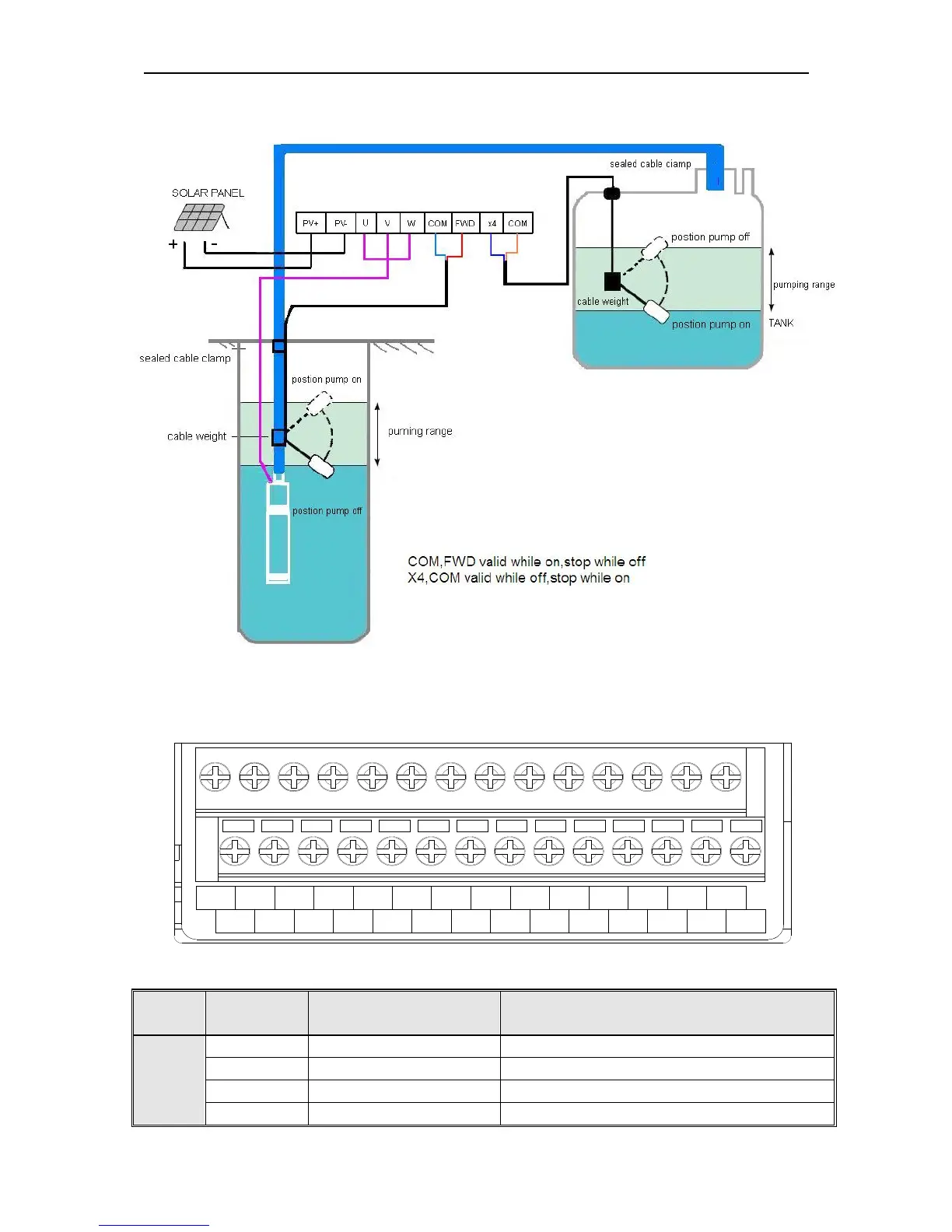

Solar pump controller wiring
2.5Control circuit terminals
2.5.1 Sequence of control terminals
TC TA
+24
COM REV
TB Y1 Y2
X2
X1
X3
X4
X5
X6
COM
PUL
GND
AO1 AO2
VS1
VS2
AS
+10V
-10V
GND
A+
B-
FWD
2.5.2 Control terminals menu
Categ
ory
Terminal name Function
Control
signal
COM Common terminal
FWD Forward turn
command
Short connect with (COM)is workable
REV Reverse turn command
Short connect with (COM)is workable
X1 Multifunction input Short connect with (COM) is workable
