Veichi SI10 - 2.3 Installation size (units: mm)

Solar Pump Controller Manual
7

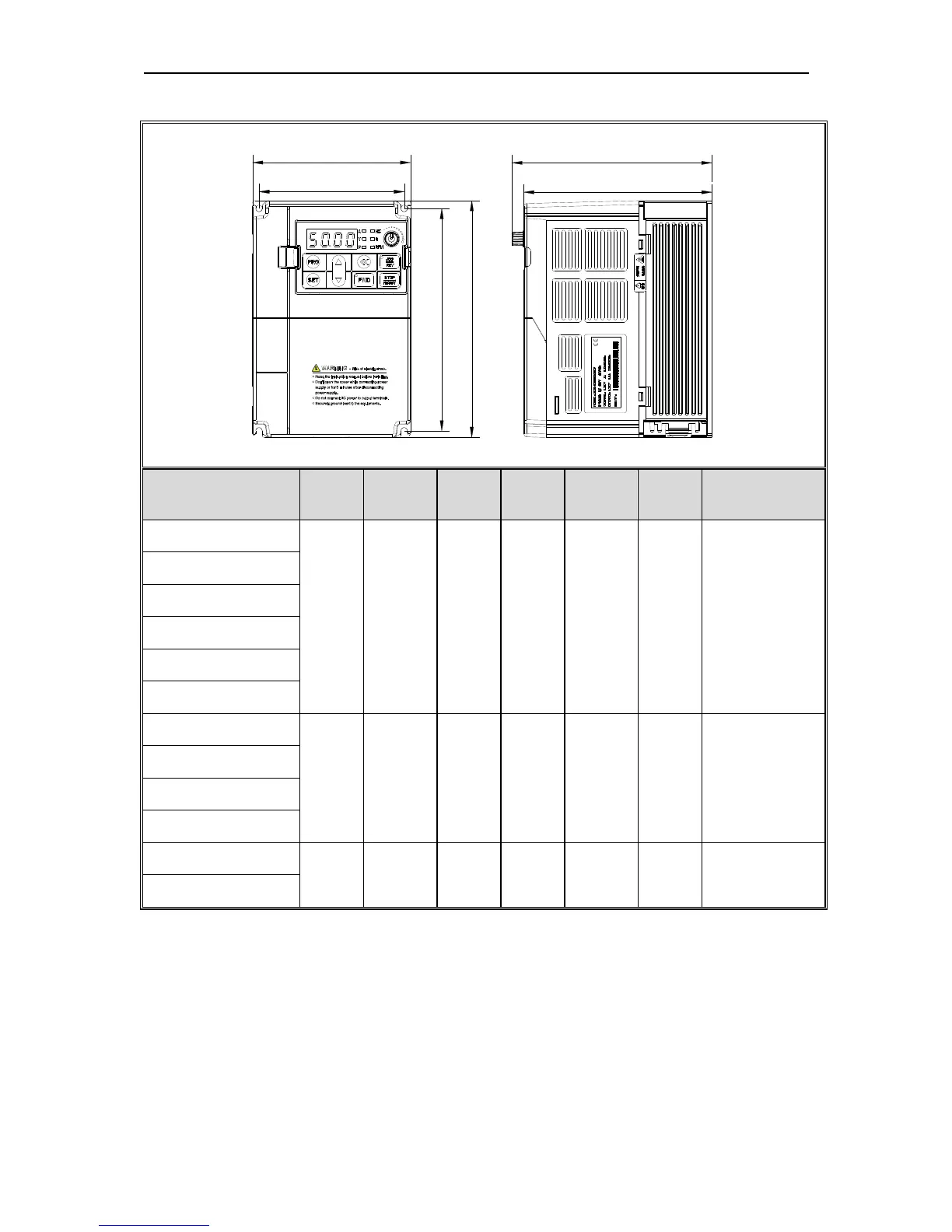

2.3 Installation size（units: mm）
D
D1
H
H1
W
W1
Frequency
inverter
W W1 H H1 D D1
Installation
aperture
SI10-S2-R40G
122 112 182 171 154.5 145 ф5
SI10-S2-R75G
SI10-S2-1R5G
SI10-T3-R75G
SI100-T3-1R5G
SI10-T3-2R2G
SI10-D3-2R2G
159 147.2 246 236 157.5 148 ф5.5
SI10-D3-3R7G
SI10-D5-3R7G
SI10-D5-5R5G
SI10-D5-7R5G
195 179 291 275 167.5 158 ф7
SI10-D5-011G
*D3 stands for 3 phase 220V output with hardware MPPT.
*D5 stands for 3 phase 380V output with hardware MPPT.
