2.8 Switch of display mode
Controller under stopping state or operation state can display various monitoring parameters by the
LED nixie light. Inverter with two kinds of keyboard both can set the concrete display parameters by
[E-06,E-07]under stopping state or operation state. They both can set the unidirectional switch cycle

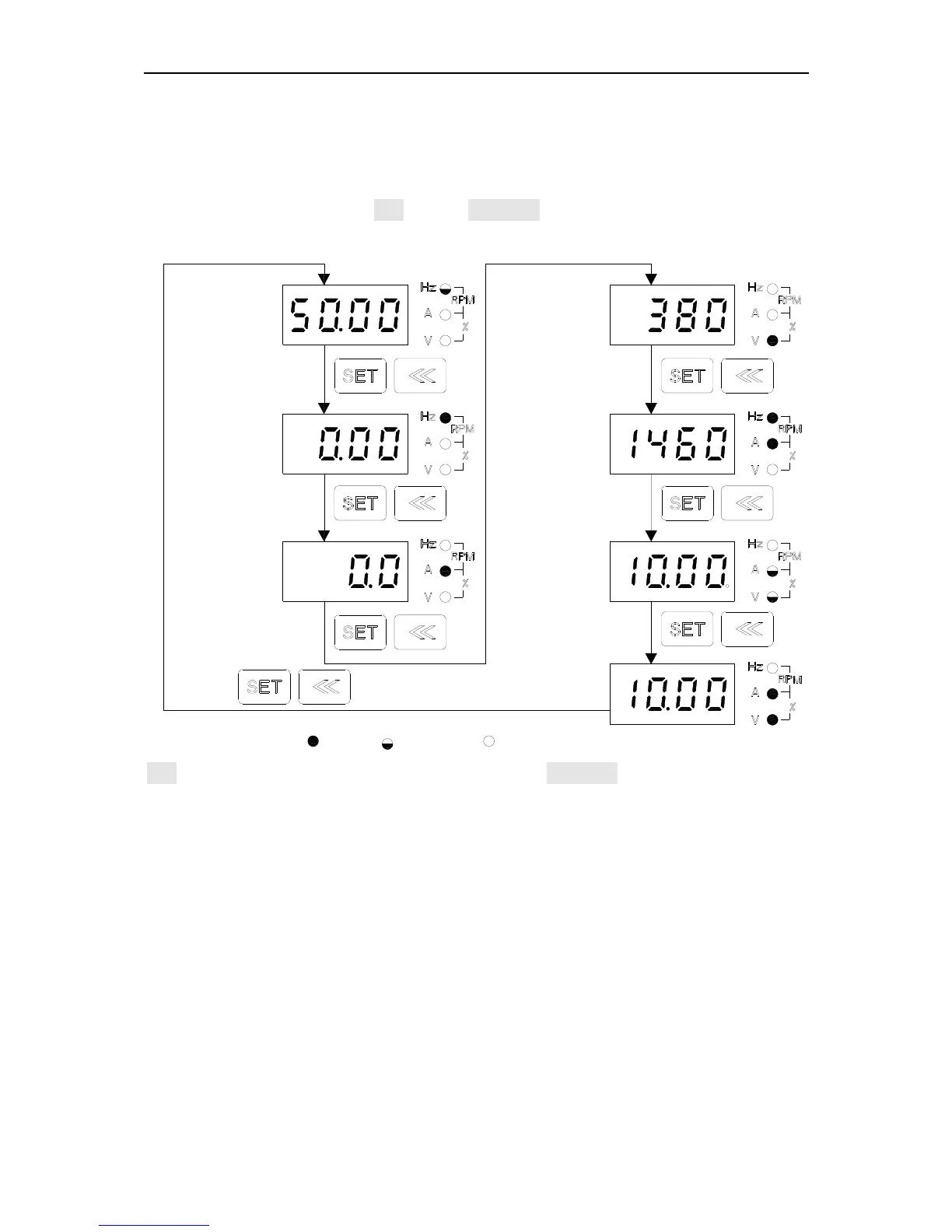

of the display parameters by the SET key and << shifting key. The operation modes are shown as
the following fig:
Display output
current
Display output
frequency
Display given
frequency
light flashing off
Display input voltage
Display electrical
machine rotational
speed
Display PID
stting quantity
Display PID
feedback quantity
SET key is used switch display items while inverter is stop, << shifting key is used switch display
items while inverter is running.
2.9 Parameter setting mode
Perfect performance of the controller is on the premise that the series frequency inverter
parameters are set properly. Take parameters [F-08] modification as an example as follow (Terminal
operational control mode is changed from the standard operational control mode to the
second-line-style operational control mode), to introduce parameters setting method of series
frequency inverter with single display keyboard or double display keyboard.
