Chapter 2: Installation

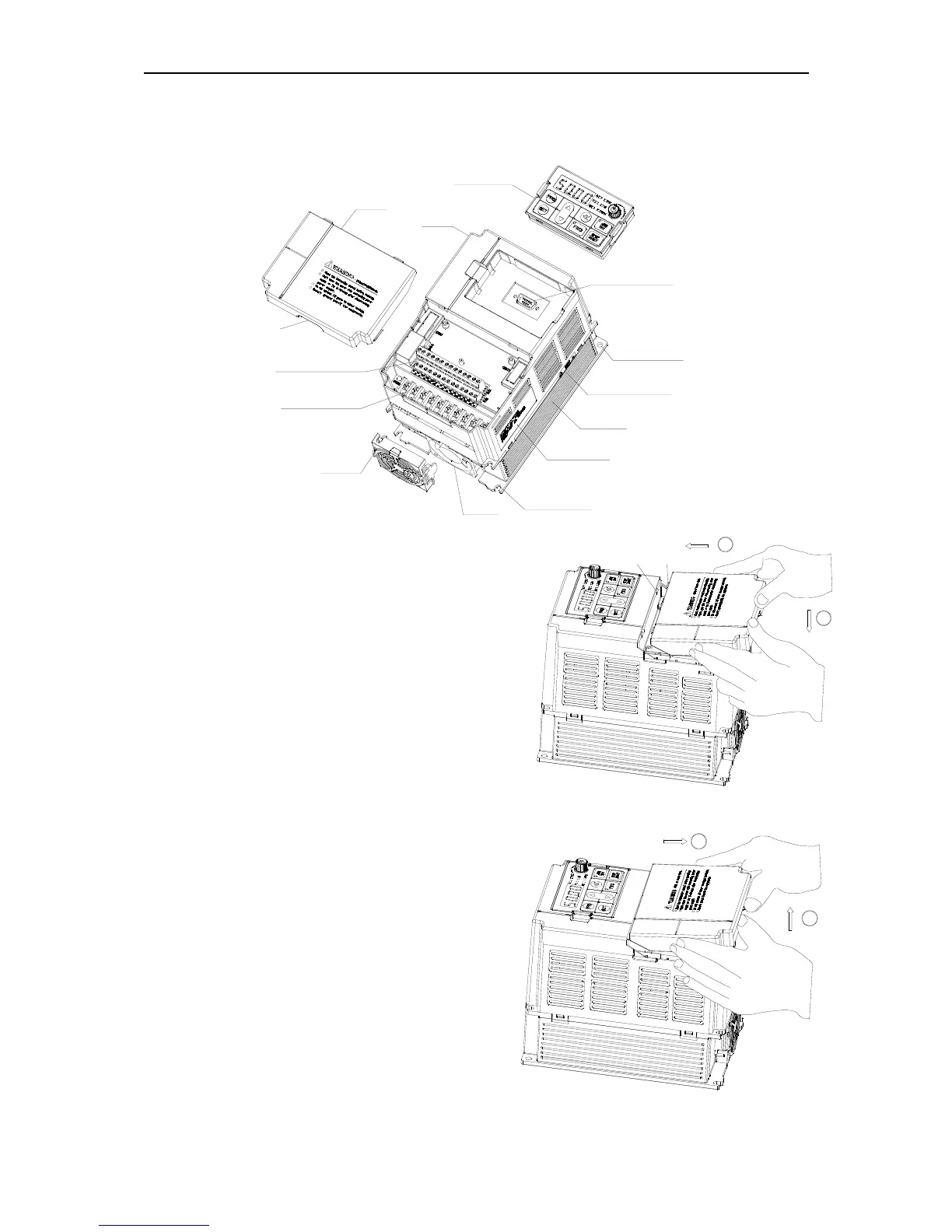

2.1 Products appearance and components titles
operation panel
Tail-hood
pre-cover
keyboard terminal
installation hole
label
air cooler
nameplate
fan cover
support
fan
control loop terminal
main loop terminal
hold hole
2.2
Dismantle and install tail-hood
Installation: First the tail-hood upwardly inclines
around 15 degrees and inserts the top fixed flat
into the fixed hole in the front cover. Then slightly
press the tail-hood downward. While your hear "Ka",
it means that the tail-hood is into the place.
Dismantlement: At the tail of the frequency inverter,
there is a special dismantlement hole design. Put
your fingers into the hole, upwardly pull the cover
with a little force until the buckle between the
tail-hood and the crust tear off, and then removed
tail-hood down.
2
1
tail-hood
stator
tail-hood
install hole
2
1
