Veichi SI10 - And Judge if Dry Protection Again after F-23 Time; Output Frequency

Solar Pump Controller Manual
39
LED 100 digit: Dry run protection
0:Invalid
1: Valid
While it valid, F-22 enters to dry run protection state if C-03 current bigger than H-65 limit current
and judge if dry protection again after F-23 time.
LED 1000 digit: CVT base voltage adjust
0: Automatic setting: System checks bus voltage at stop automatically and save to H-62.
1: Manual: Set CVT base voltage by H-62
.
H-48
Fre
q
uenc
y
ste
p
1
Range：0～10.00HZ Factory setting：0.80
H-49
Frequency 1
Range：0～600.00HZ Factory setting：25.00
H-50
Frequency step2
Range：0～10.00HZ Factory setting：0.30
H-51
Frequency 2
Range：0～600.00HZ Factory setting：32.00
H-52
Frequency step3
Range：0～10.00HZ Factory setting：0.15
H-53
Frequency 3
Range：0～600.00HZ Factory setting：40.00
H-54
Frequency step4
Range：0～10.00HZ Factory setting：0.10
H-55
Frequency 4
Range：0～600.00HZ Factory setting：45.00
H-56
Frequency step 5
Range：0～10.00HZ Factory setting：0.80
H-57
Frequency 5
Range：0～600.00HZ Factory setting：48.00
H-58
Frequency step 6
Range：0～10.00HZ Factory setting：0.06
H-59
Quick reduce fre
q
uenc
y
ratio
Range：0～99.99% Factory setting：96.00%
H-60
Lon
g
-term sto
p
and wait time
Range：0～6000.0S
Factory setting：900.0S
H-61
Repeat times in dormancy
Range：0～13 Factory setting：0
H-62 CVT base voltage
Ran
g
e：0～1000
Factor
y
settin
g
：※
H-63 CVT adjust voltage
Ran
g
e：0～100%
Factor
y
settin
g
：80%

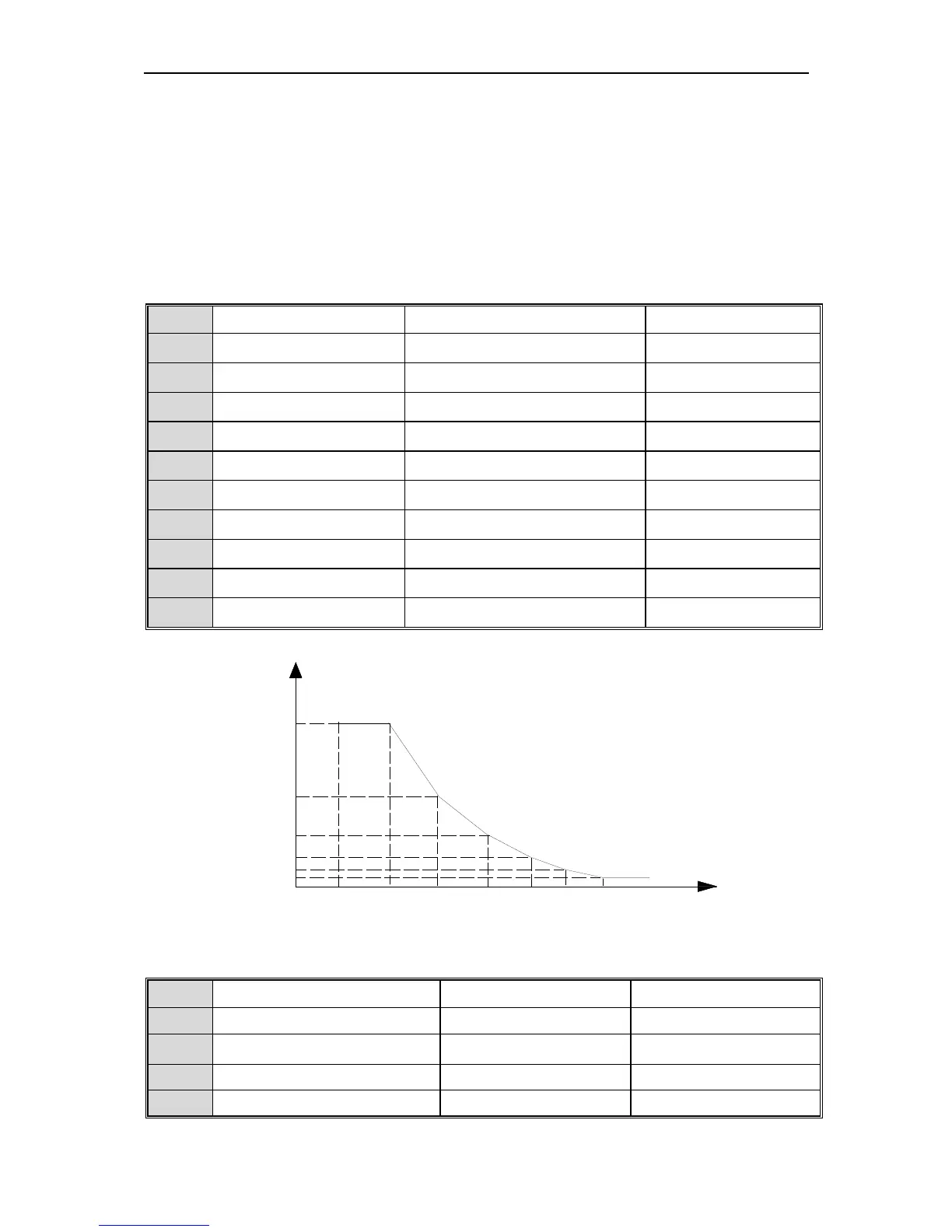

F5
F4
F3
F2
F1
User-defined to search frequency step
Output frequency
Upper limit
Low limit
Step 6
Step 5
Step 4
Step 3
Step 2
Step 1
Search frequency step
