VEMAG HP30E - Page 142

HP25E / HP30E8. Maintenance
8-2 © VEMAG 2018

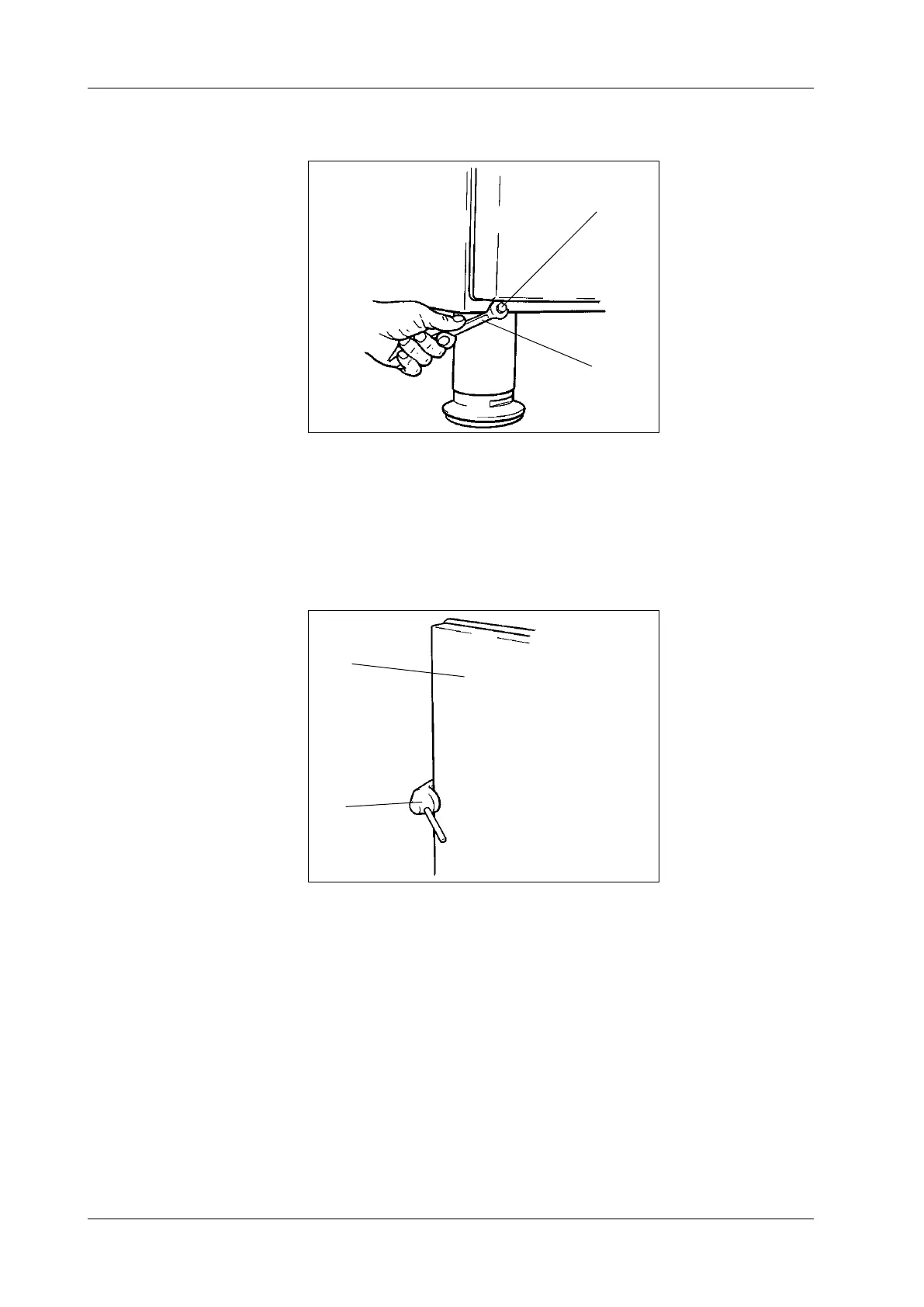

• Undo bottom assembly bolt (1) of the front door using spanner (2).
1 Assembly bolt
2 Spanner
Fig. 8-2
Opening the front door
2
1
• Swing open the front door.
Service hatch, rear
• Unlatch toggle (1) and open cover (2) completely.
1 Toggle
2 Cover
Fig. 8-3
Opening the service hatch
2
1
