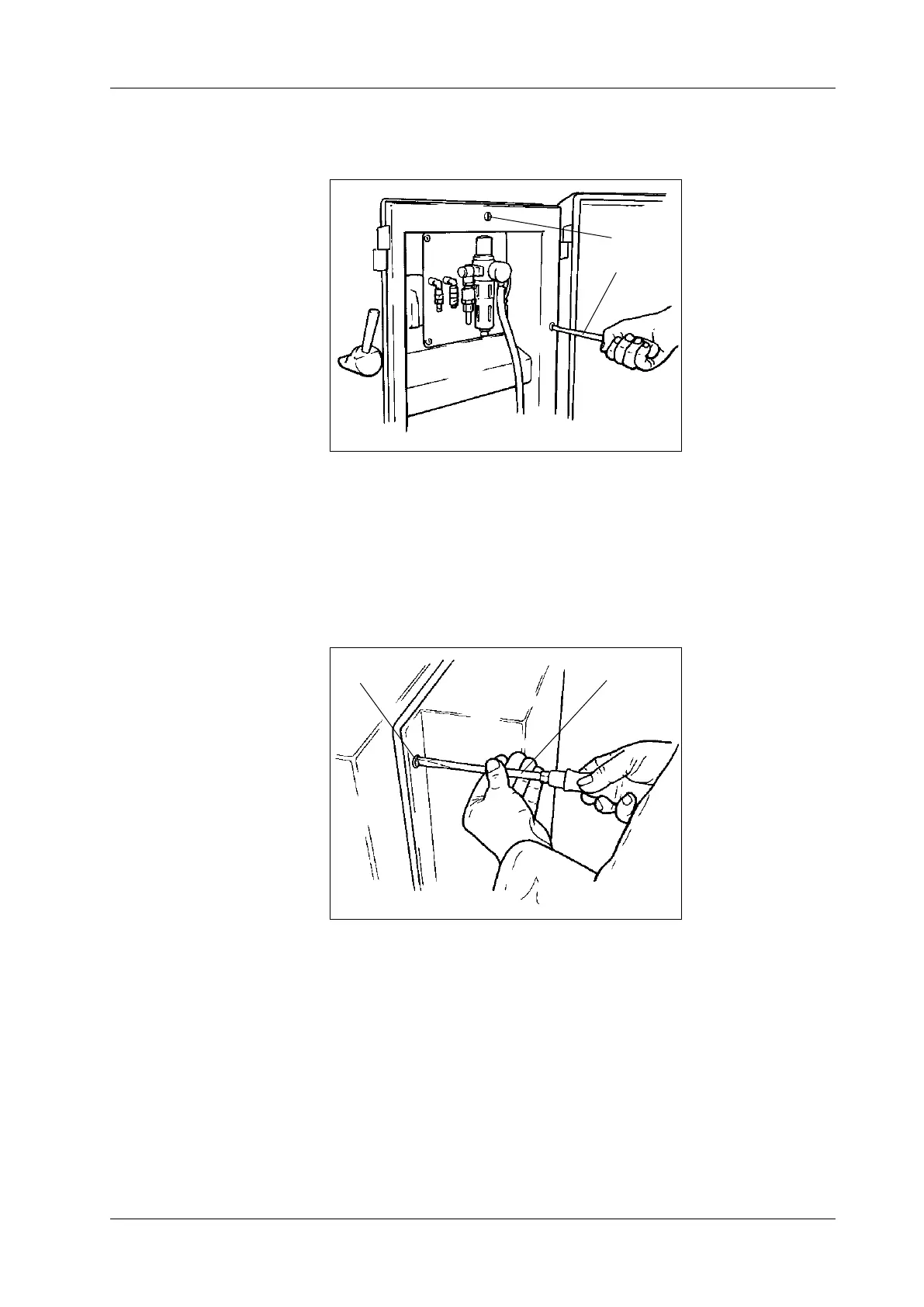

• Undo the assembly bolts (1) of the service hatch using screwdriver (2)
to assist.
1 Assembly bolt
2 Screwdriver
Fig. 8-4
Opening the
service hatch
2
1
• Swing open the service hatch.
Service hatch, right-hand side
• Undo the assembly bolts (1) of the service hatch using screwdriver (2)
to assist.
1 Assembly bolt
2 Screwdriver
Fig. 8-5
Opening the
service hatch
2
1
• Swing open the service hatch.
