TRAY LABEL INSTALLATION
Insert tray I.D. labels as shown in Figure 2. The top left hand position is “10”, and tray
locations to the right of this position are numbered “11”, “12”, etc. from left to right. The
second shelf from the top begins its column numbering with “20”; the third shelf begins
with “30” and so on.
Insert price labels in the area indicated. Product I.D. labels can be inserted in each
product pusher as indicated.
TRAY I.D.
LABEL PLACEMENT
TRAY I.D.
LABEL PLACEMENT
PRICE LABEL
PLACEMENT
PRICE LABEL
PLACEMENT
PRODUCT I.D.
LABEL PLACEMENT

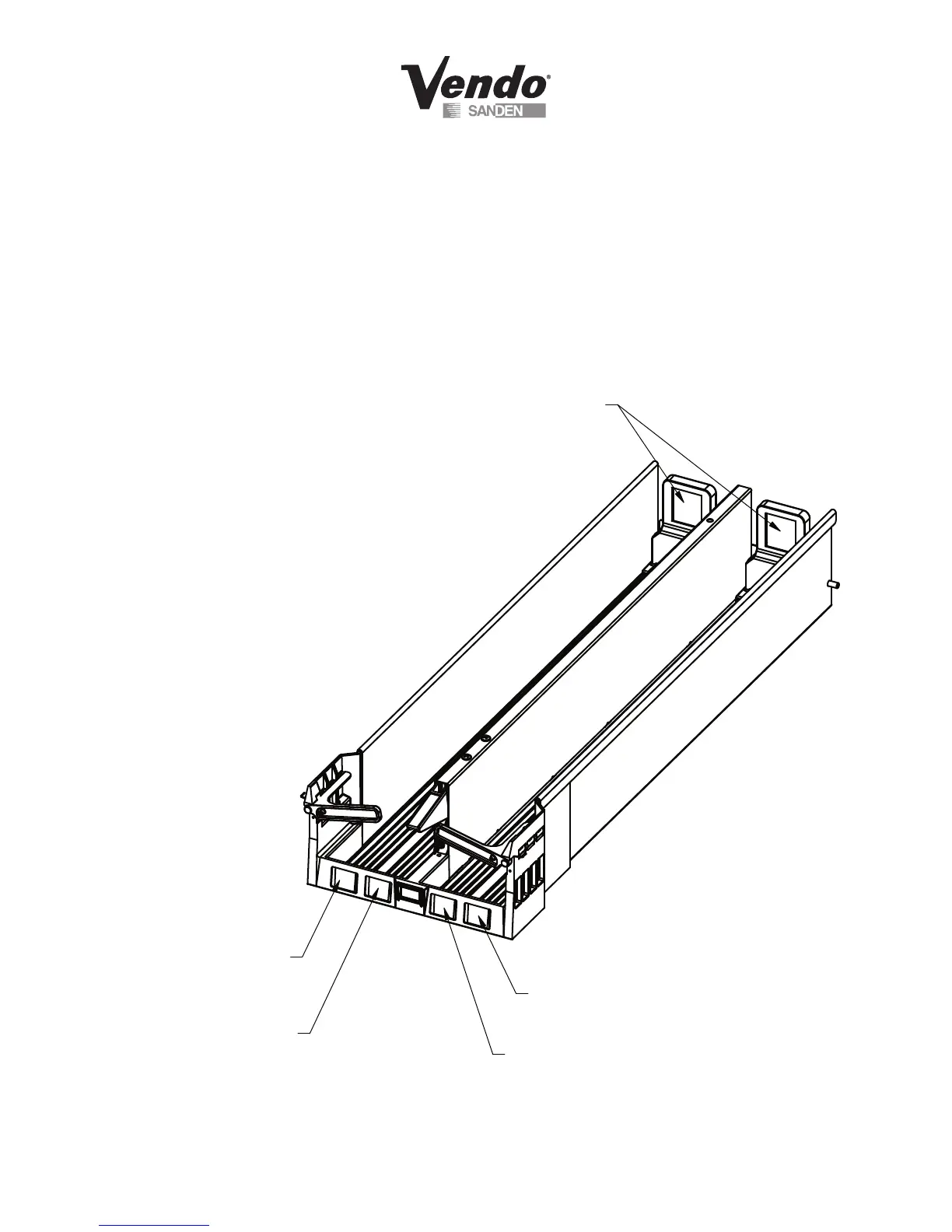

FIGURE 2
