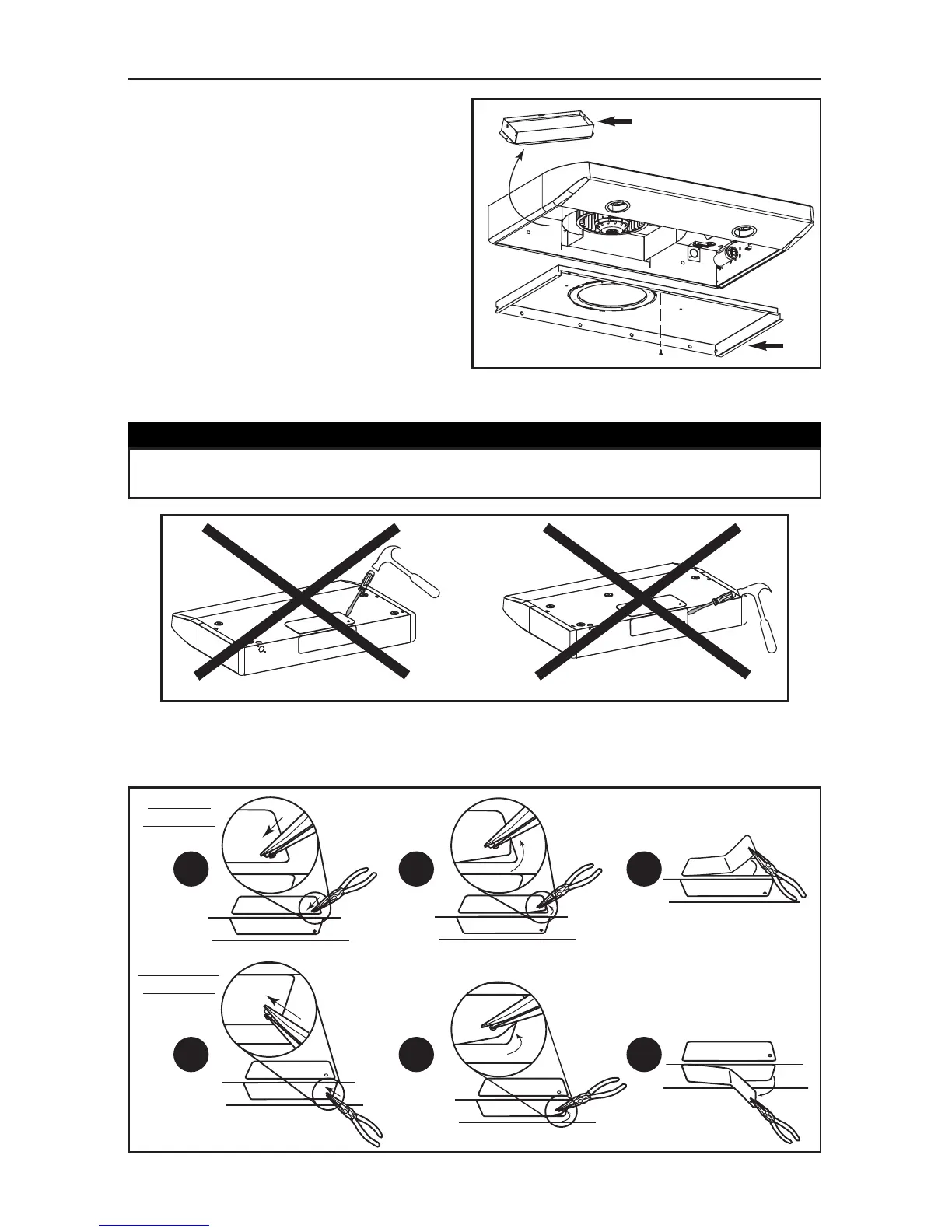

4. PREPARE THE HOOD
Remove both filters from the hood.
Disassemble the adapter/damper (A) from the
hood.
NOTE: The bottom panel (B) must be removed
to access the adapter/damper.
HO0055
A
B
Punch out the appropriate electrical knock-out hole.
CAUTION
Never use a hammer and a screwdriver to punch out the vertical or horizontal
discharge knock-out, because this will damage the hood internal parts.
HD0152
Using a long nose pliers, remove the knock-outs for the chosen opening (vertical on top or
horizontal at the back of the hood). See illustrations below.
1
2 3
HR0018
1 2 3
VERTICAL
DISCHARGE
HORIZONTAL
DISCHARGE
