24 HE250 - Installation and Operation Manual
5.1.3 Door Adjustment
In order for your fireplace to burn at its best efficiency, the door must provide a perfect seal with the
firebox. Therefore, the gasket should be inspected periodically to check for a good seal. The gasket seal may
be improved with a simple latch mechanism adjustment. To adjust:

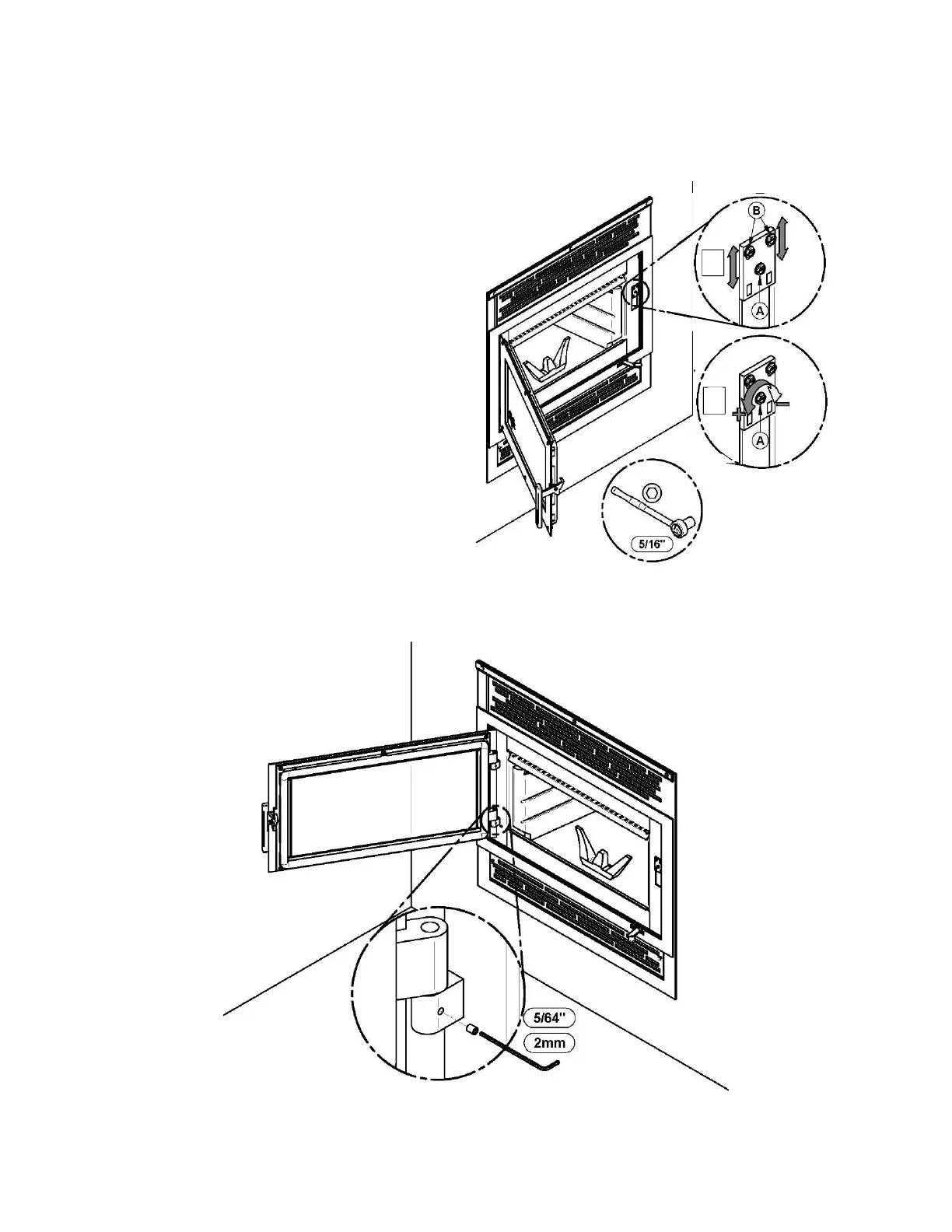

1. To adjust the door handle parallelism with
the door: loosen l
ower screw (A) and
upper screws (B) and slide the door lock
assembly up or down (see 1).
2. To get a proper door seal: using a ratchet
with a 5/16” socket, turn the lower screw
(A) clock wise to reduce the door handle
pressure or counter-clock wise to increase
the door handle pressure (see 2).
5.1.4 Door Alignment
To align, open the fireplace’s door and loosen the pressures screws located on the lower and upper hinges
of the door using a 3/32” Allen key to free the adjustable hinge rods.
