HE250 - Installation and Operation Manual 51
8.6 Chimney Installation Instructions
Always refer to the chimney manufacturer’s Installation manual to ensure a safe installation. Some non-
illustrated parts may be required.

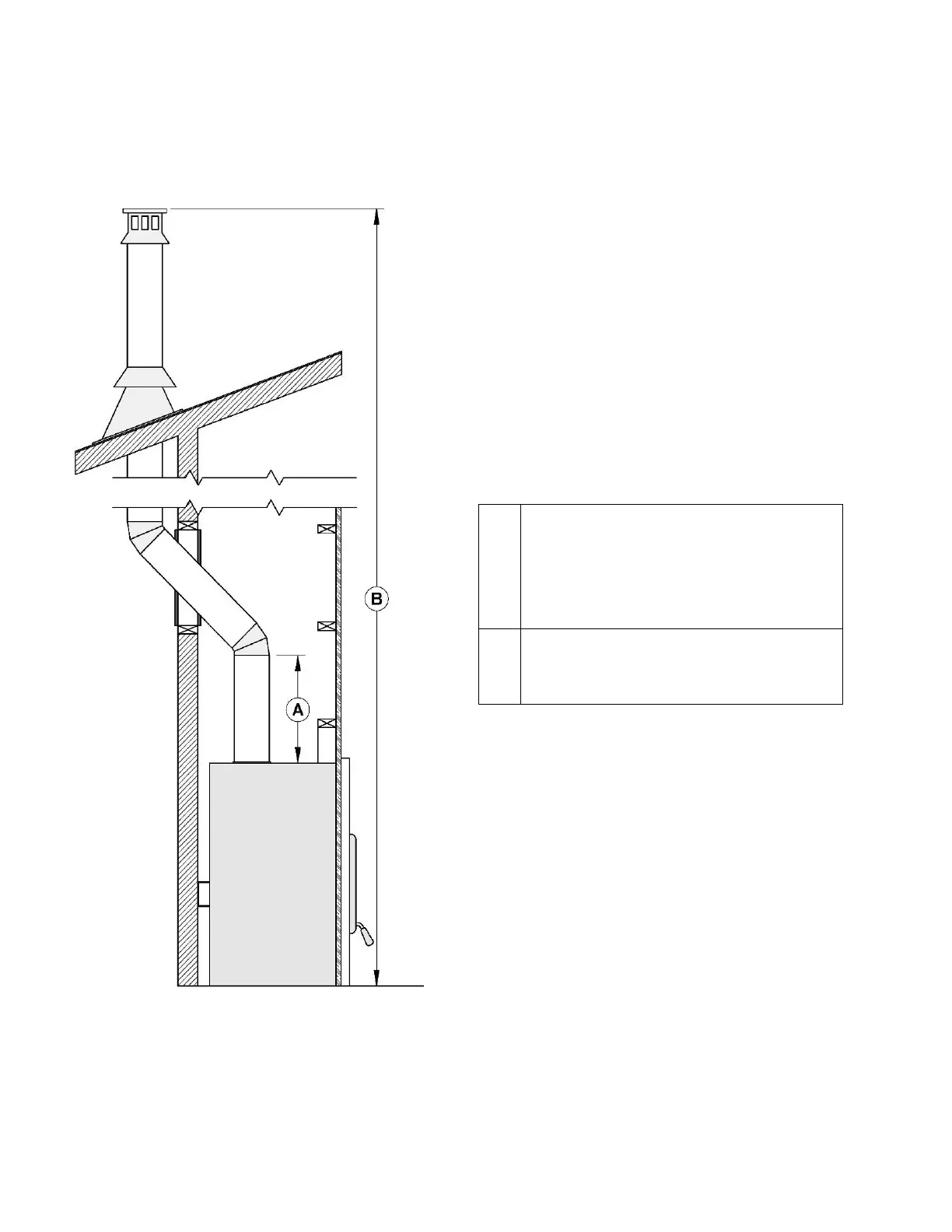

8.6.1 Examples of Typical Chimney Installation
A
To insure a good draft, it is
recommended to have
inches from the top of the unit to the
first offset. However, starting using a
30° or 45° elbow is also approved.
B
Mandatory measure of 15 ft. from the
bottom of the fireplace to the top of
the outside chimney.
To Next Page
