HE250 - Installation and Operation Manual 85

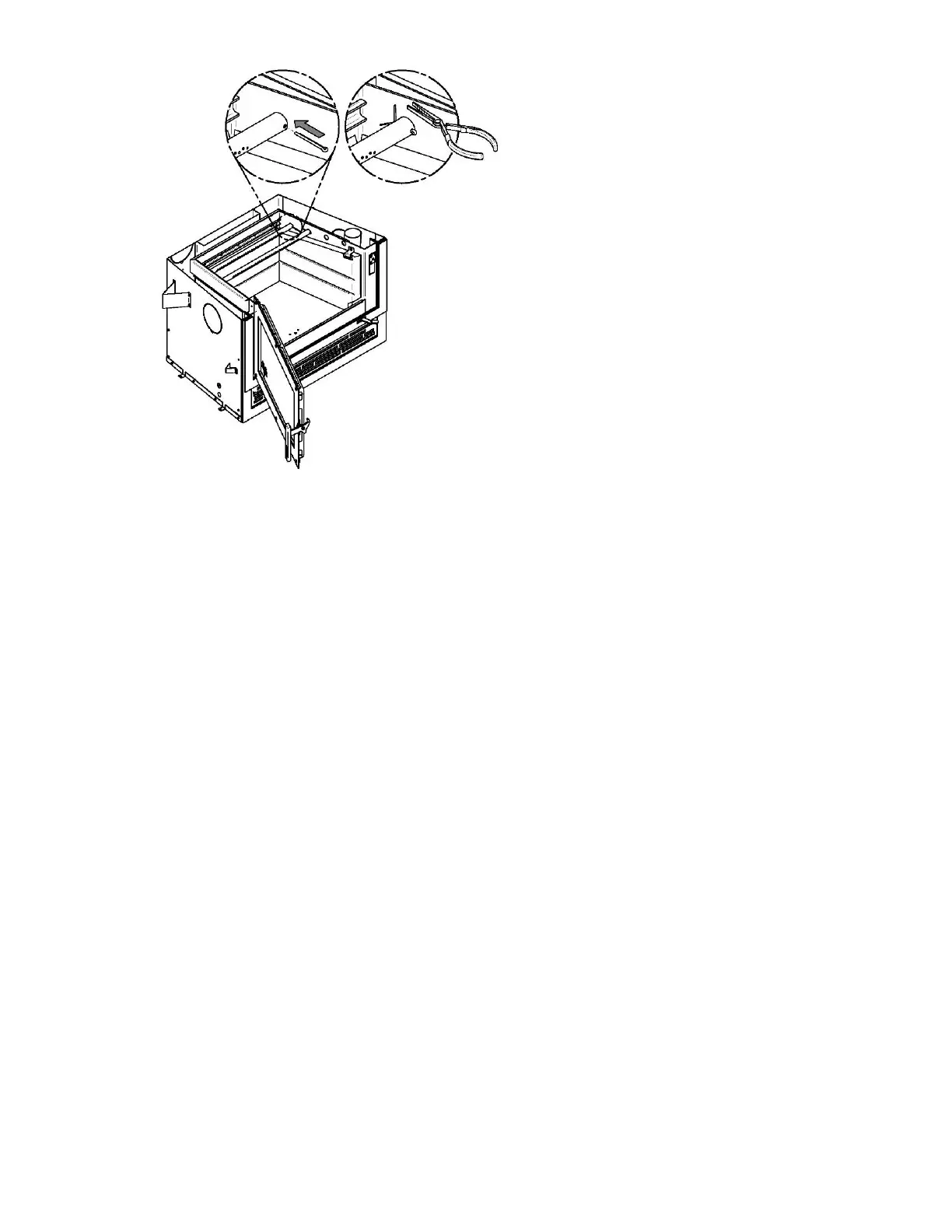

6. Insert a cotter pin in the last
hole on the right side of the
tube. Then bend the tabs on the
pin to keep in place.
7. Repeat steps 4, 5 and 6 for the
two tubes in the back then
install the baf
the two front tubes.
8.
To remove the tubes use the
above steps in reverse order.
Note that secondary air tubes can be replaced without removing the baffle board.
