84 HE250 - Installation and Operation Manual

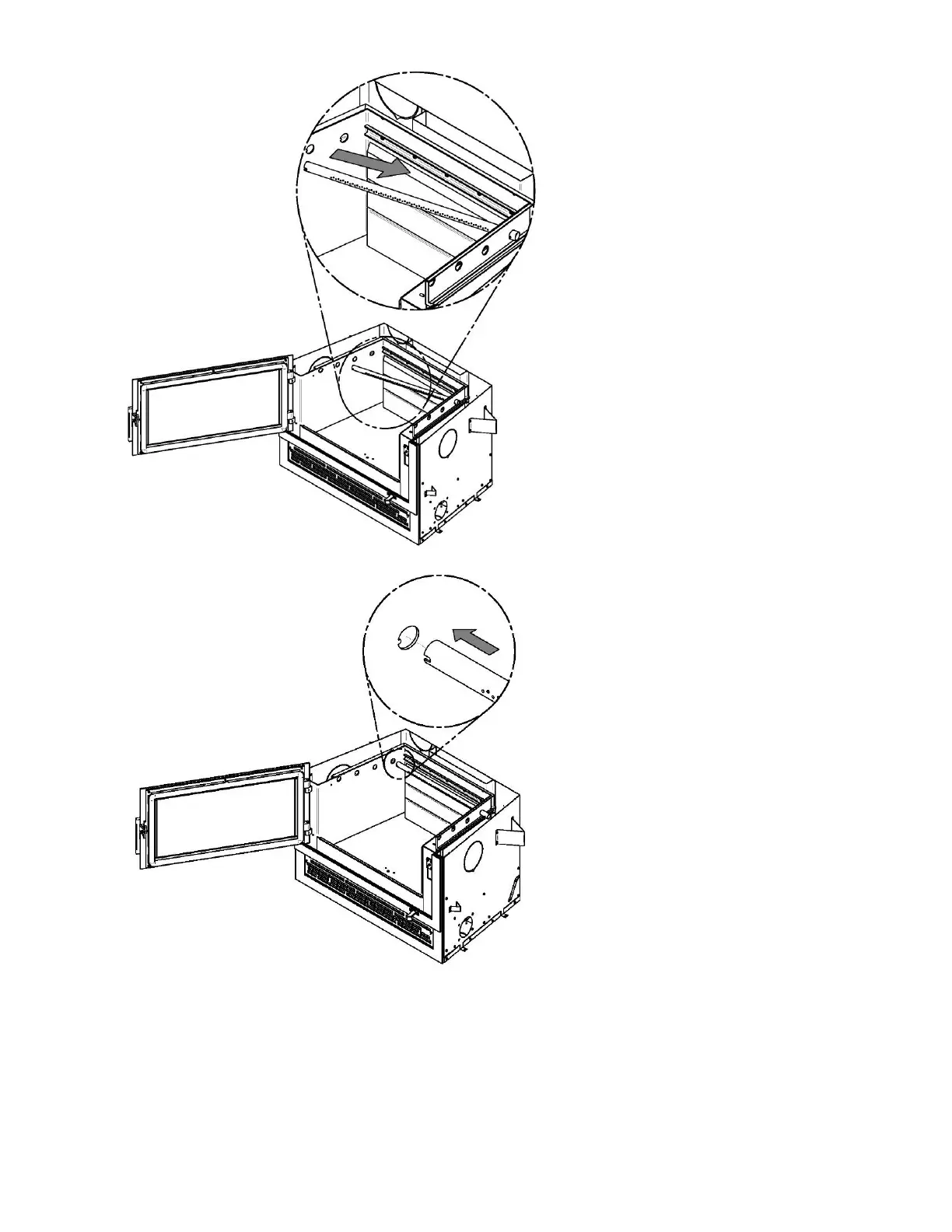

4. Starting with the rear tube, lean
and insert the right end of the
secondary air tube into the rear
right channel hole. Then, lift
and push the tube towards the
right inside the hole in the right
channel.
5. Align the notch in the left end of
the tube with the tab of the left
air channel hole.
