56 HE250 - Installation and Operation Manual

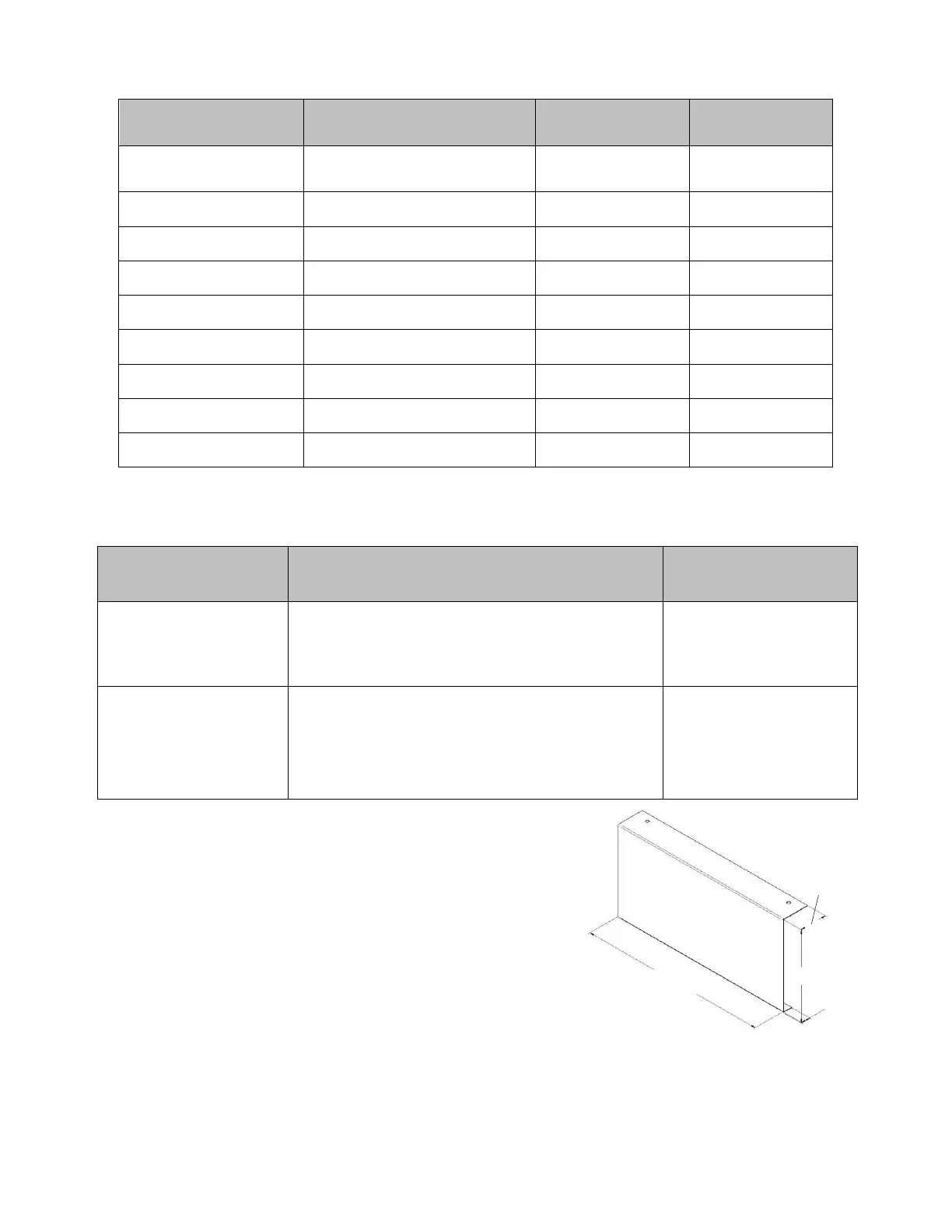

TABLE 2 - LISTED CHIMNEYS FOR YOUR HE250
***THE CHIMNEY MUST START WITH A 6'' DIAMETER ANCHOR PLATE SECURED TO THE FIREPLACE.***
TABLE 3 – LIST OF MANDATORY COMPONENTS
CHIMNEY
MANUFACTURER
MANDATORY COMPONENTS TYPE/BRAND
Olympia Chimney
• Ventilated roof flashing.
• Rafter protector at the roof level is chimney
is enclosed at the attic level.
1" Solid Pack
DuraVent
• Ventilated roof flashing.
• Rafter protector at the floor level if chimney
is enclosed at the attic level.
2" Solid Pack :
Dura Plus HTC,
AC Triple Wall :
Dura Plus
*You can get a kit of four (4) rafter protector (AC03510) from
your dealer. Each rafter is made of 22GA galvanized steel
(10.44”W x 5.126”H).
CHIMNEY
MANUFACTURERS
BRAND TYPE
INNER
DIAMETER
Olympia Chimney/
SBI Venting Division
Ventis 1" Solid Pack 6" (15 cm)
SBI Venting Division Nexvent 1" Solid Pack 6" (15 cm)
Olympia Chimney Champion Chimney System 1" Solid Pack 6" (15 cm)
Olympia Chimney Rockford Chimney Systems 1" Solid Pack 6" (15 cm)
DuraVent Dura Plus HTC 2" Solid Pack 6" (15 cm)
DuraVent Dura Tech Premium 2" Solid Pack 6" (15 cm)
DuraVent Dura Tech Canada DTC 1" Solid Pack 6" (15 cm)
DuraVent Dura Tech 1" Solid Pack 6" (15 cm)
DuraVent Dura Plus AC Triple Wall 6" (15 cm)
10.44”
5.126”
1.530”
.512”
