HE250 - Installation and Operation Manual 75

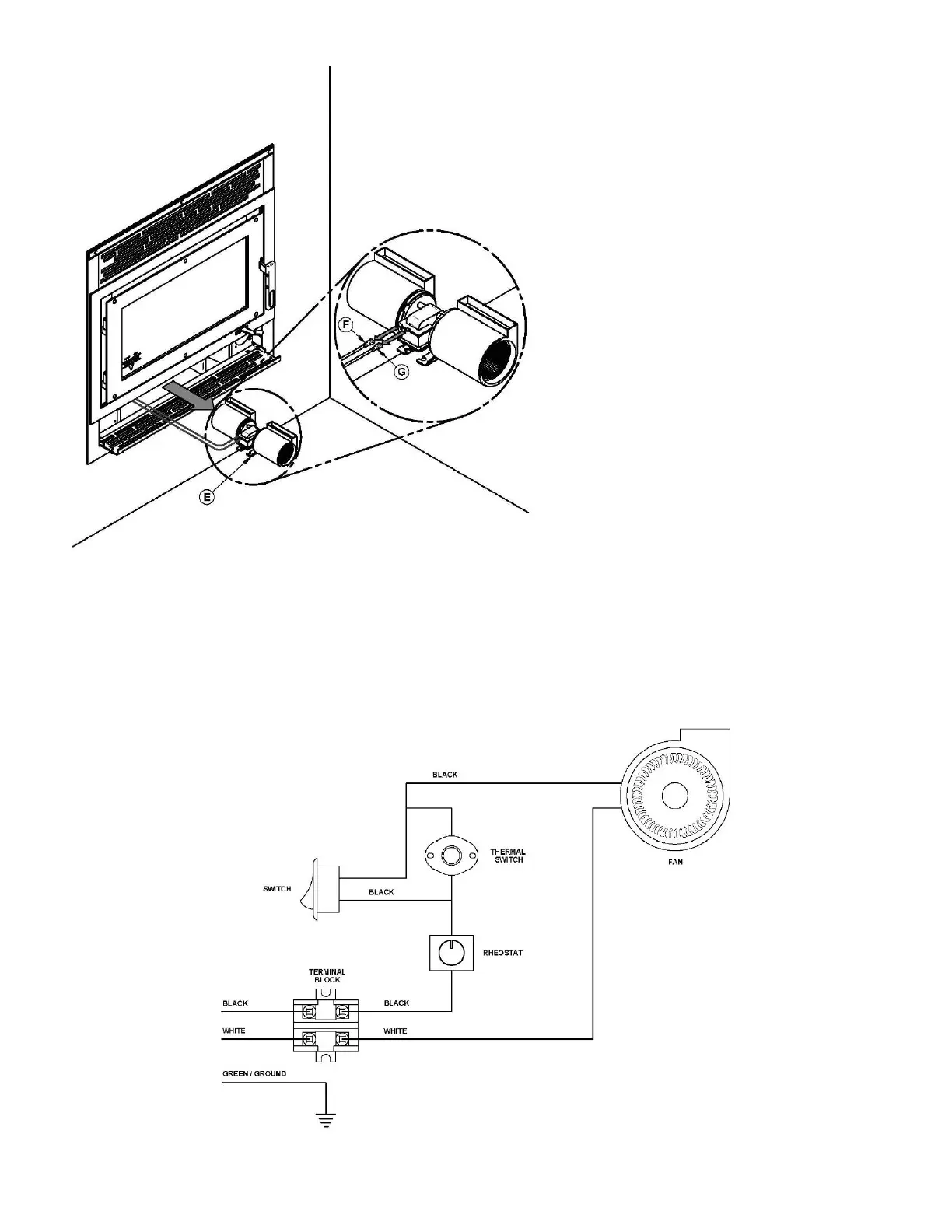

5. Unplug the blower’s electric wires (F)
and (G).
6.
Lift the blower (E) located under the
firebox towards the back.
7. Turn 90° to pull out.
Repe
at the steps in reverse order to
reinstall the fan.
Blower connection
Have the wiring installed by a qualified electrician. Connect the wires from the power outlet to the terminal
block, making sure that the white wire matches the white wire on the terminal. Connect the black wire
with the black wire of the terminal block. The ground (green or skinned wire) must be attached to the
fireplace metal frame.
