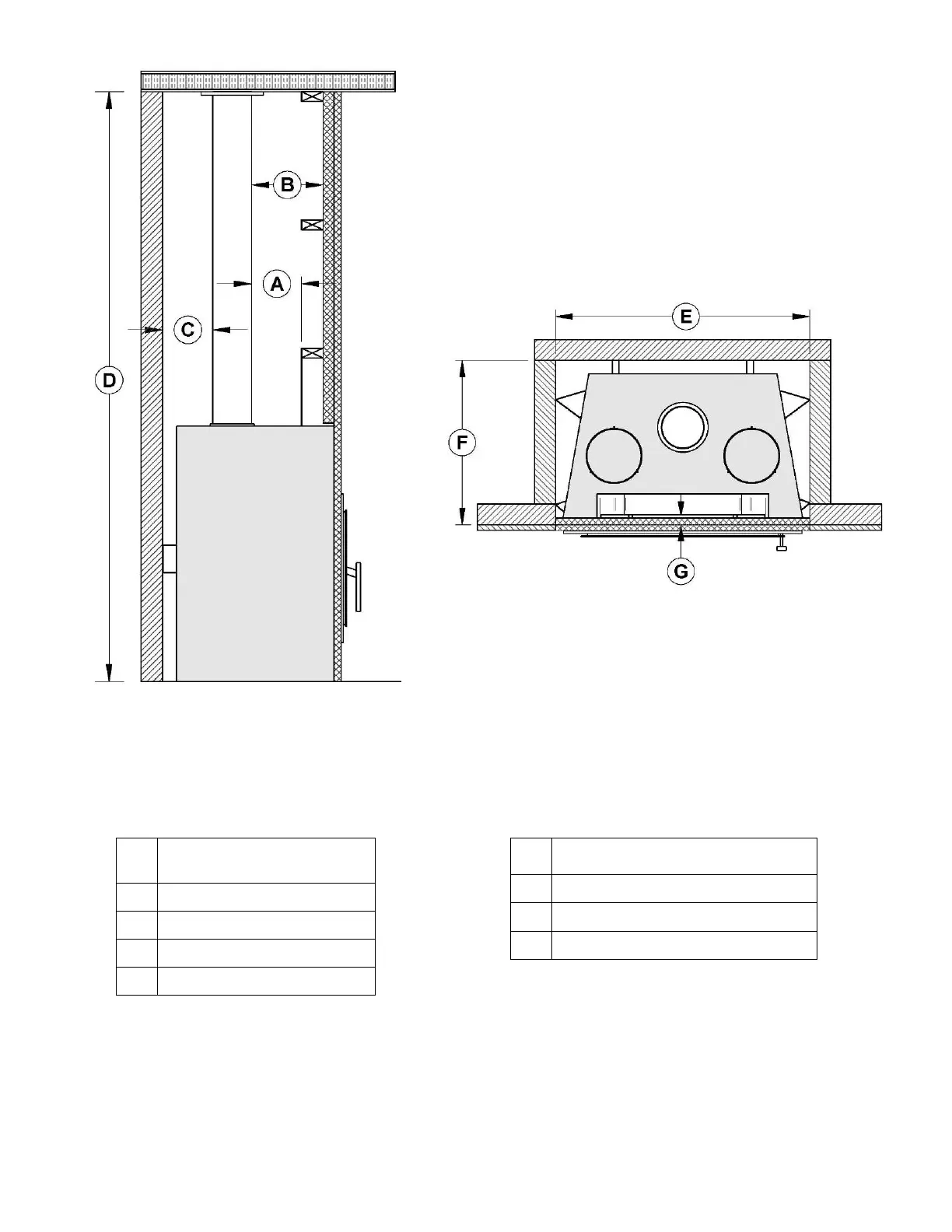

Wall finish behind the fireplace’s faceplate installation
CLEARANCES
A
4 7/8" (124 mm)
B*
8" (203 mm)
C*
5" (127 mm)
D*
80" (2032 mm)
MEASUREMENTS
E*
37 7/8" (962 mm)
F*
24 3/4" (629 mm)
G
1 3/8" (35 mm) MAX
*When drywall panels or any other finishing material inside the chase around the fireplace is to be used,
add its thickness to the measurement.
