78 HE250 - Installation and Operation Manual
Note: Only remove the knock-out that will be connected to the fresh air inlet.

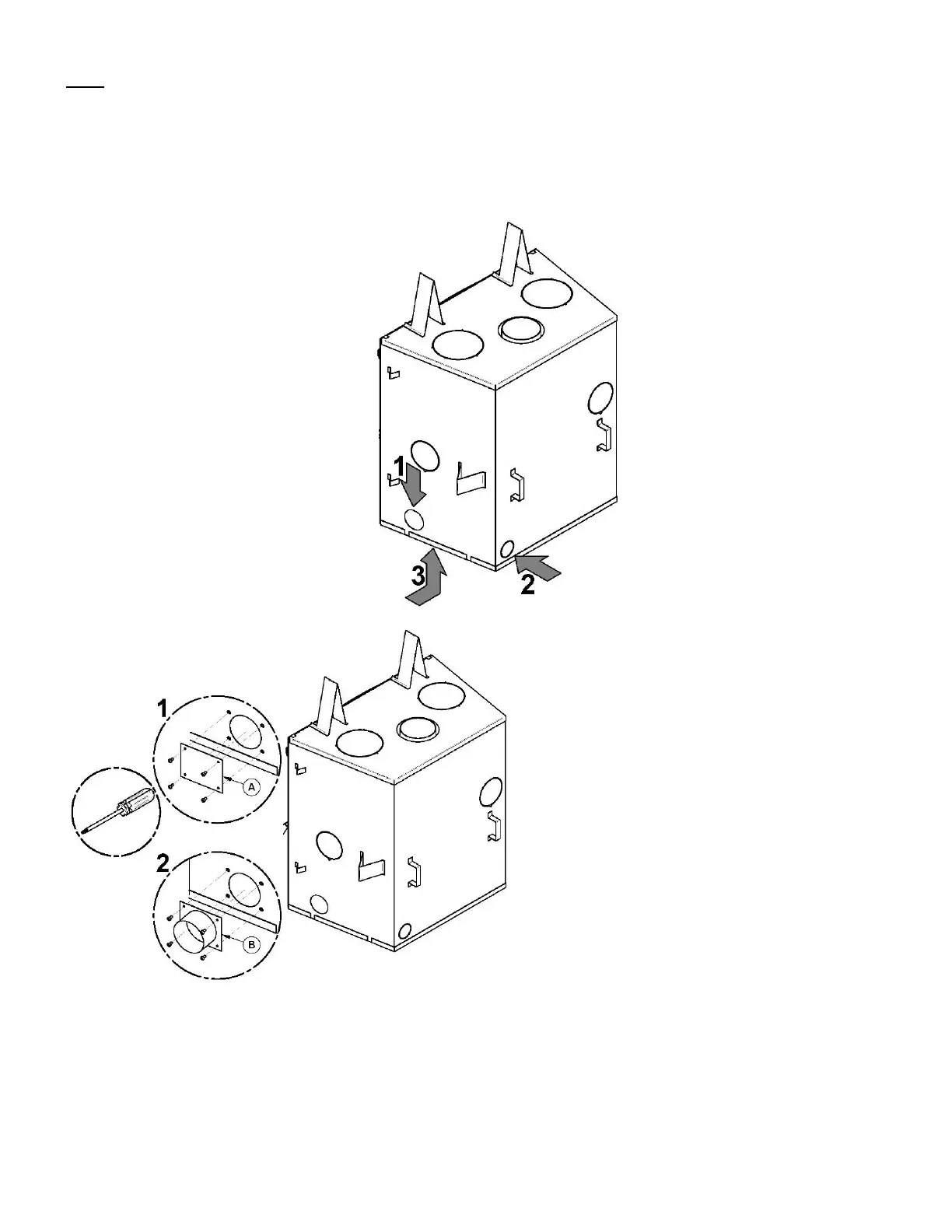

The fresh air intake kit may be installed on three different places on the fireplace.
1- On the right side of the appliance (most common).
2- On the right side, at the back of the appliance.
3- On the right side under the appliance.
1. Using a Philips screwdriver, remove the
four screws holding the rectangular
plate (A)
on the right of the fireplace
jacket
. If the location 2 or 3 has been
chosen, use pliers to remove the knock-
out.
2.
Secure the fresh air intake kit adapter
(B) on the fireplace jacket using
screws provided with the kit.
