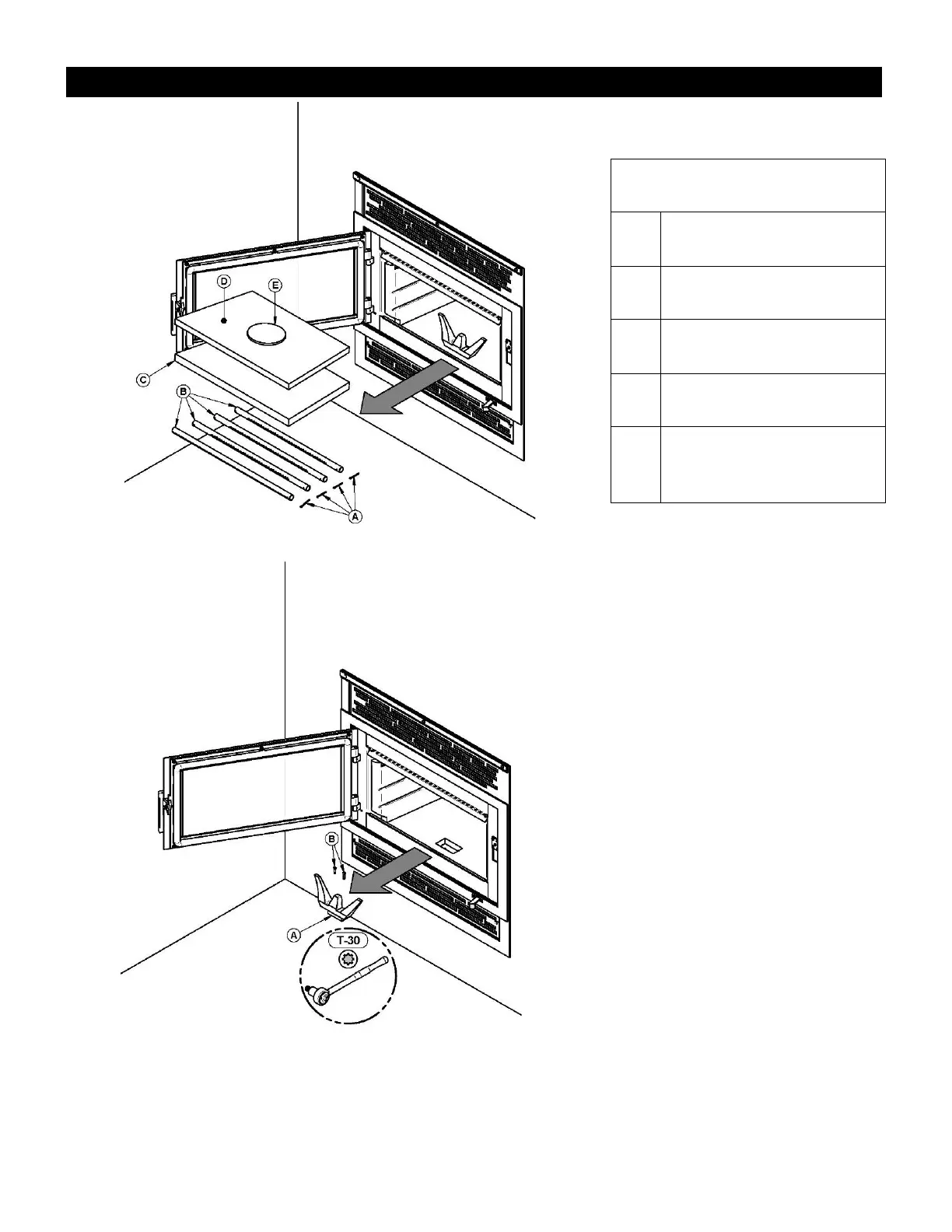

APPENDIX 6: INSTALLATION OF SECONDARY AIR TUBES AND BAFFLE
REMOVABLE PARTS
A
Cotter pins
(x4)
B
Air tubes
(x4)
C
C-cast baffle
(x1)
D
Baffle insulation
(x1)
E
Baffle insulation weight
(x1)
1. Using a ratchet key and a Torx
(T-
30), unscrew the two Torx
screws (B) holding up the
andiron (A).
