OPERATIONAL CONTROLS
Operation - 23

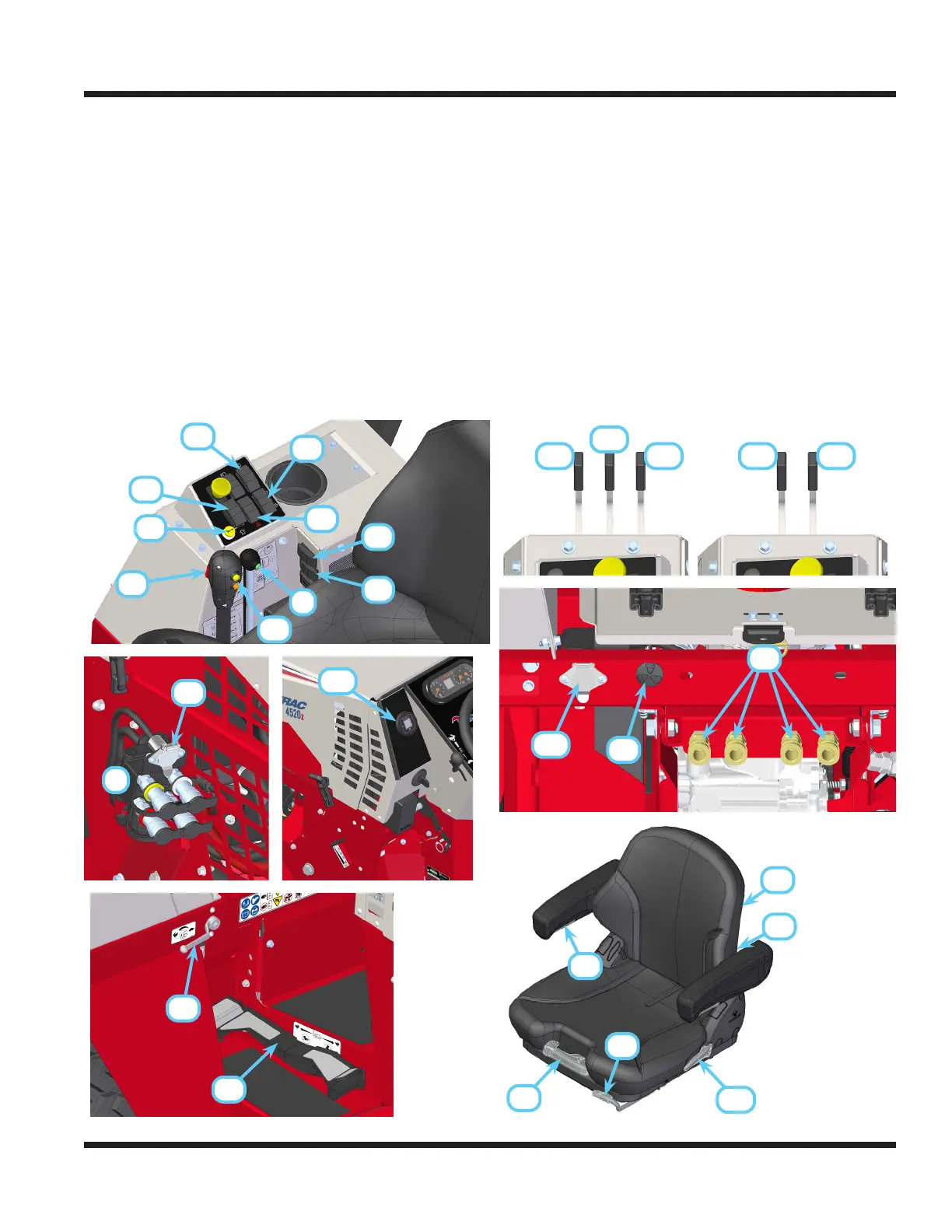

Optional Accessory Control Locations
Become familiar with all the controls before you start
the engine and operate the machine.
AA. Work Light Switch
BB. Strobe Light Switch
CC. Directional Signal Switch
DD. Hazard Flasher Switch
EE. Horn Switch
HH. Front 12V 4-Pin Socket
II. Dual Front Hydraulic Auxiliary Switch
JJ. Dual Front Hydraulic Auxiliary Valve
MM. Rear 12V 4-Pin Socket
NN. Slope Indicator Gauge
OO. Foot Pedal
PP. 3 Point Hitch Control Lever
QQ. Left Rear Auxiliary Hydraulics Handle
RR. Right Rear Auxiliary Hydraulics Handle
SS. Rear Auxiliary Hydraulic Quick Couplers
TT. Back-Up Alarm
UU. Seat Slide Lever
WW. Backrest Angle Lever
XX. Weight Adjustment Lever
YY. Heat Switch
ZZ. Optional Armrest Angle Knob
BA. Front Hitch Valve
