Ventrac 4520N - Replacing Fuses (Front Fuse Panel); Replacing Fuses (Rear Fuse Panel)

SERVICE
Service - 57
Replacing Fuses (Front Fuse Panel)
1. Turn the battery disconnect switch to the O
position.

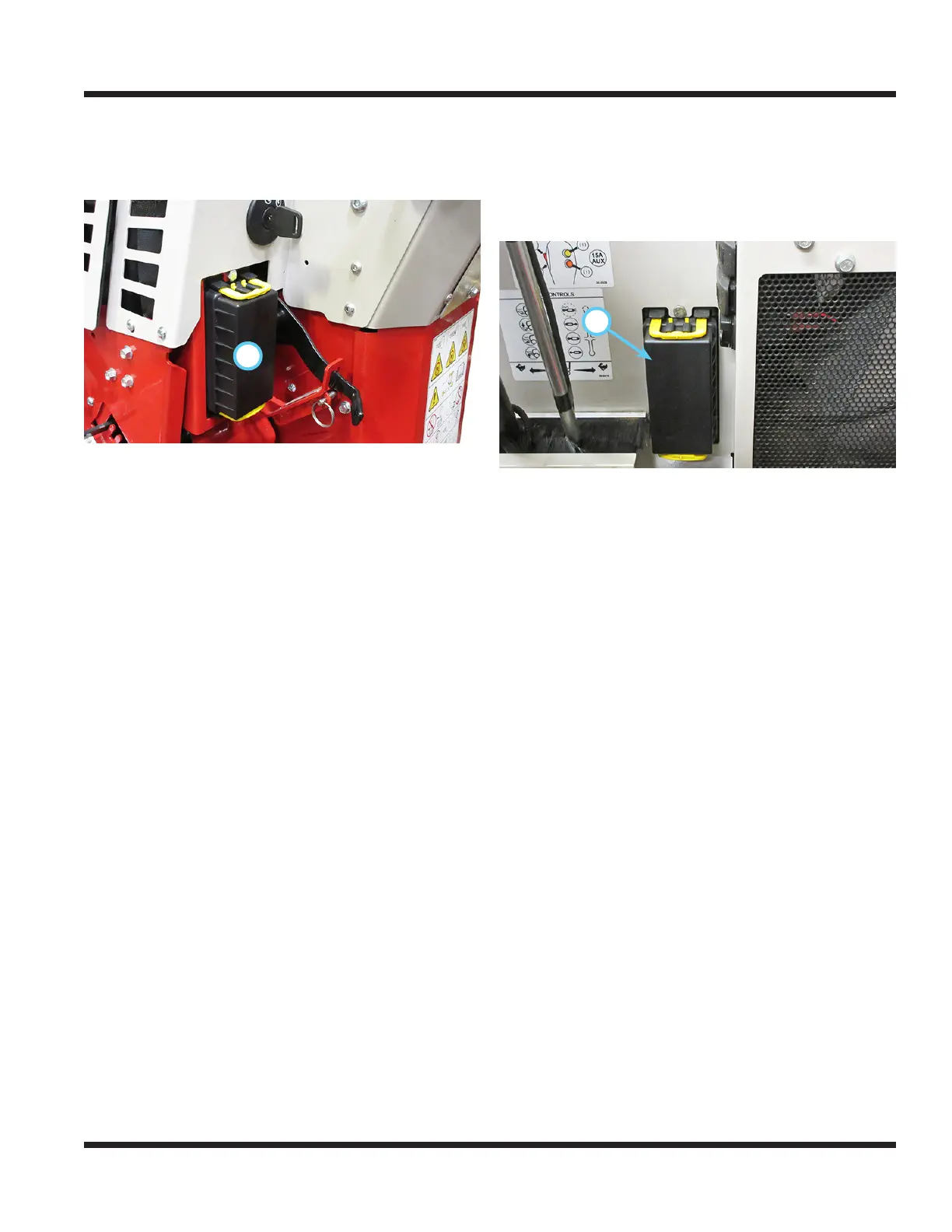

2. Remove the sealed cover (A) from the fuse panel.
3.
A
Identify and remove the defective fuse from the
socket. Refer to the Quick Reference decal under
the hood for fuse locations.
4. Insert a new fuse into the socket. Be sure the fuse
is the correct amperage or damage may occur to
the power unit.
5. Reinstall the sealed cover onto the fuse panel.
6. Turn the battery disconnect switch to the On
position.
Replacing Fuses (Rear Fuse Panel)
1. Turn the battery disconnect switch to the O
position.
2. Tilt the seat forward and fasten in place with the
seat prop.
3. Remove the sealed cover (A) from the fuse panel.
4.
A
Identify and remove the defective fuse from the
socket. Refer to the Quick Reference decal under
the hood for fuse locations.
5. Insert a new fuse into the socket. Be sure the fuse
is the correct amperage or damage may occur to
the power unit.
6. Reinstall the sealed cover onto the fuse panel and
lower the seat back down to the operating position.
7. Turn the battery disconnect switch to the On
position.
