Venturer PLV91237S52 - Reference Guide

12
REFERENCE GUIDE

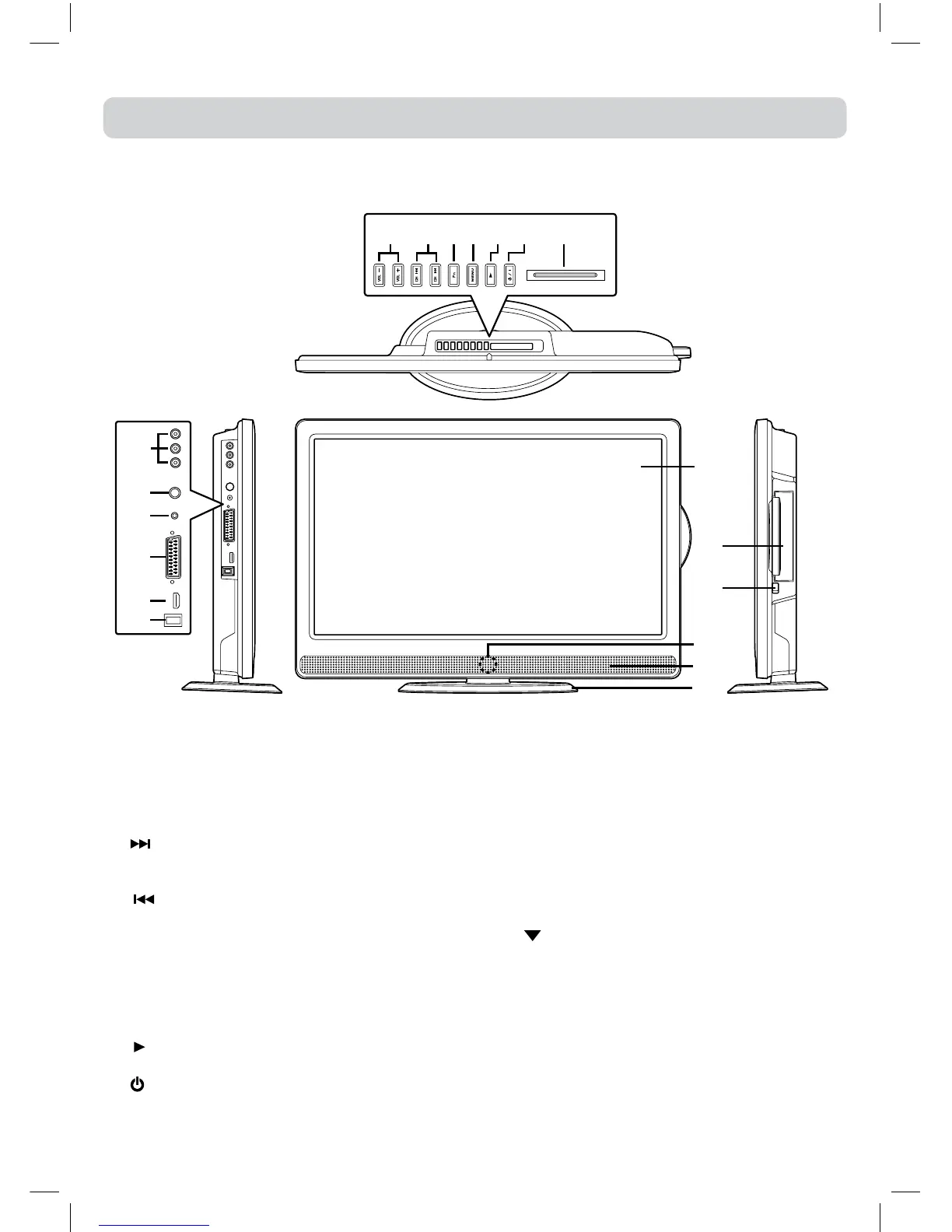

FRONT, TOP & SIDES VIEW
1) – VOLUME + controls
Adjustthevolumelevel.
2) CH buttons
Press to change the TV channels and highlight
selections(Up&Down)onthemenuscreen.
 button
Presstoselectnexttitle,chapterortrackonadisc
andfastforwardplayback.
button
Presstoselectprevioustitles,chaptersortracks
onadiscandfastreverseplayback.
3) FUNCTION button
SelectDTV,ATV,AV1,AV2/SCART,YUV/SCART,
DVDorHDMI.
4) MENU button
Presstodisplaytheon-screenTVmenu.
5) PLAY button
Presstostartorresumeplaybackofadisc.
6) / I button
Turnstheunitonandoff.
7) COMMON INTERFACE slot
(ForoptionalConditionalAccessModule)
8) AUDIO IN jacks (Left/Right) / VIDEO IN jack
(AV IN 1)
9) TV Aerial - Coaxial TV antenna input
10) HEADPHONES jack
11) SCART jack (AV IN 2)
12) HDMI jack
13) Power Cord
14) Colour LCD Screen
15) Disc Door
Pushgentlytoclosethediscdoor.
16) PUSH OPEN knob
Pushdowntoopenthediscdoor.
17) Remote Sensor
Donotblockthissensorortheremotecontrolwill
notwork.
Standby Indicator
IndicateswhethertheunitisONorinSTANDBY
(OFF)mode.
Light On:TheunitisinSTANDBY.
Light Off: TheunitisturnedON.
18) Speakers
19) Removable stand
123456 7
9
12
11
10
8
13
14
15
16
17
18
19
