VeriFone V400c Plus User Manual

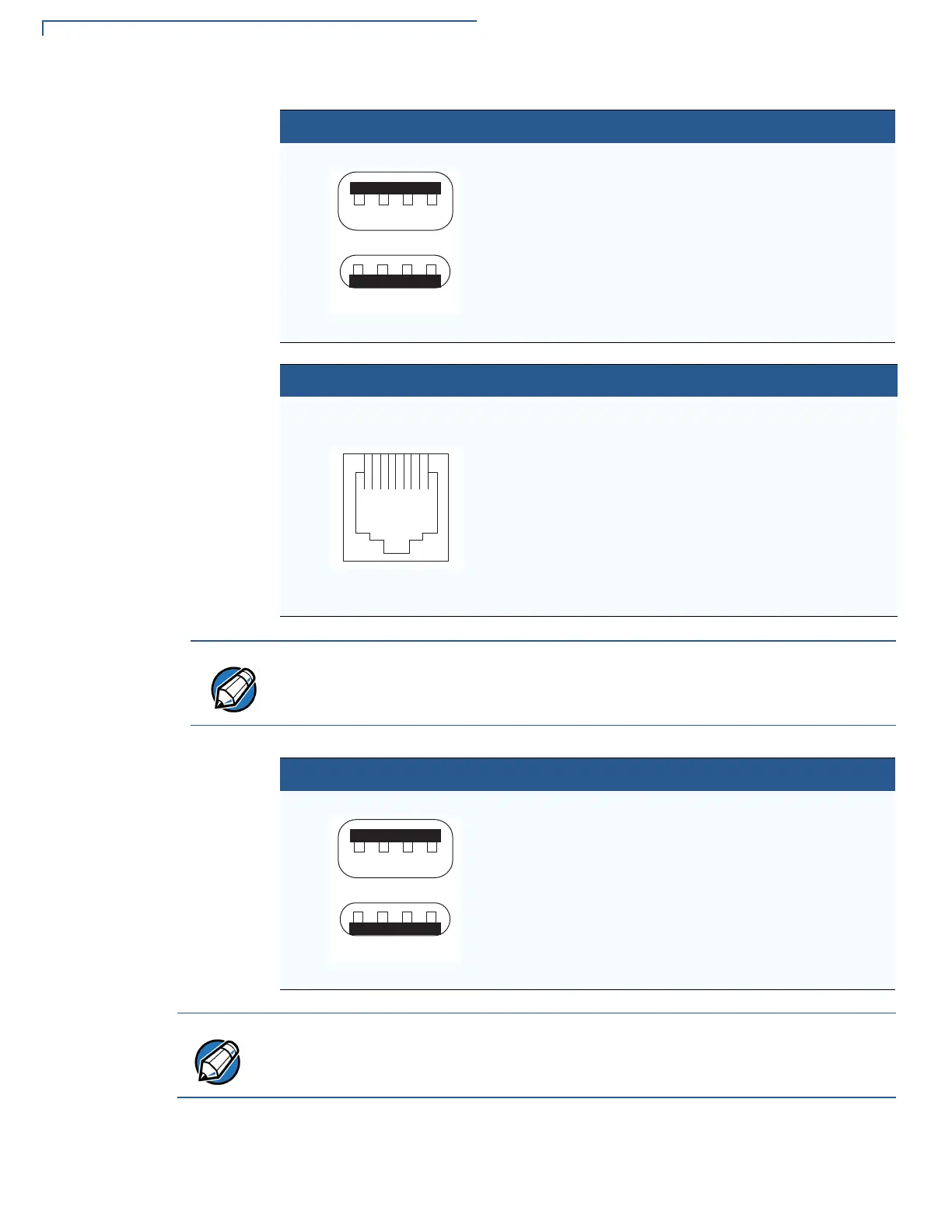

PORT PINOUTS
Port Pinout Definitions
46 V200C AND V400C INSTALLATION GUIDE
USB Pinout (Host
Port)
RS-232 Port (COM1)
USB Pinout
Connector PIN Function Description
1 +5 V 5 V USB Power (600 mA)
2 DATA- USB Host Signal -
3 DATA+ USB Host Signal +
4 GND USB ID pin/Ground
Receptacle
Plug
14
1
4
Connector PIN Function Description
1 Portpwr
(9 to12 V DC)
Port power (11.6 V typ.,
500 mA)
2 NC No connection
3 NC No connection
4 GND Power ground
5 RXD Receive data
6 TXD Transmit data
7 NC No connection
8 NC No connection
18
NOTE
This RS-232 port is part of the RS-232 + USB/Mini-USB Multi-Communication
dongles (VPN CBL420-002-01-A and CBL420-002-02-A).
Connector PIN Function Description
1 +5 V 5 V USB Power (500 mA)
2 DATA- USB Host Signal -
3 DATA+ USB Host Signal +
4 GND USB ID pin/Ground
Receptacle
Plug
14
1
4
NOTE
This USB Type-A port is part of the RS-232 + USB Multi-Communication dongle
(VPN CBL420-002-01-A).

VeriFone V400c Plus Specifications

General

Touchscreen	Capacitive
Contactless	NFC
Connectivity	Wi-Fi, Bluetooth
Payment Options	Credit, debit, contactless, mobile payments
Ports	USB, Ethernet
