DEVICE SETUP
Examining Connection Port
V660
P INSTALLATION GUIDE 19
Examining
Connection Port
The V660p-1 device has one primary USB-C port used for power and download.

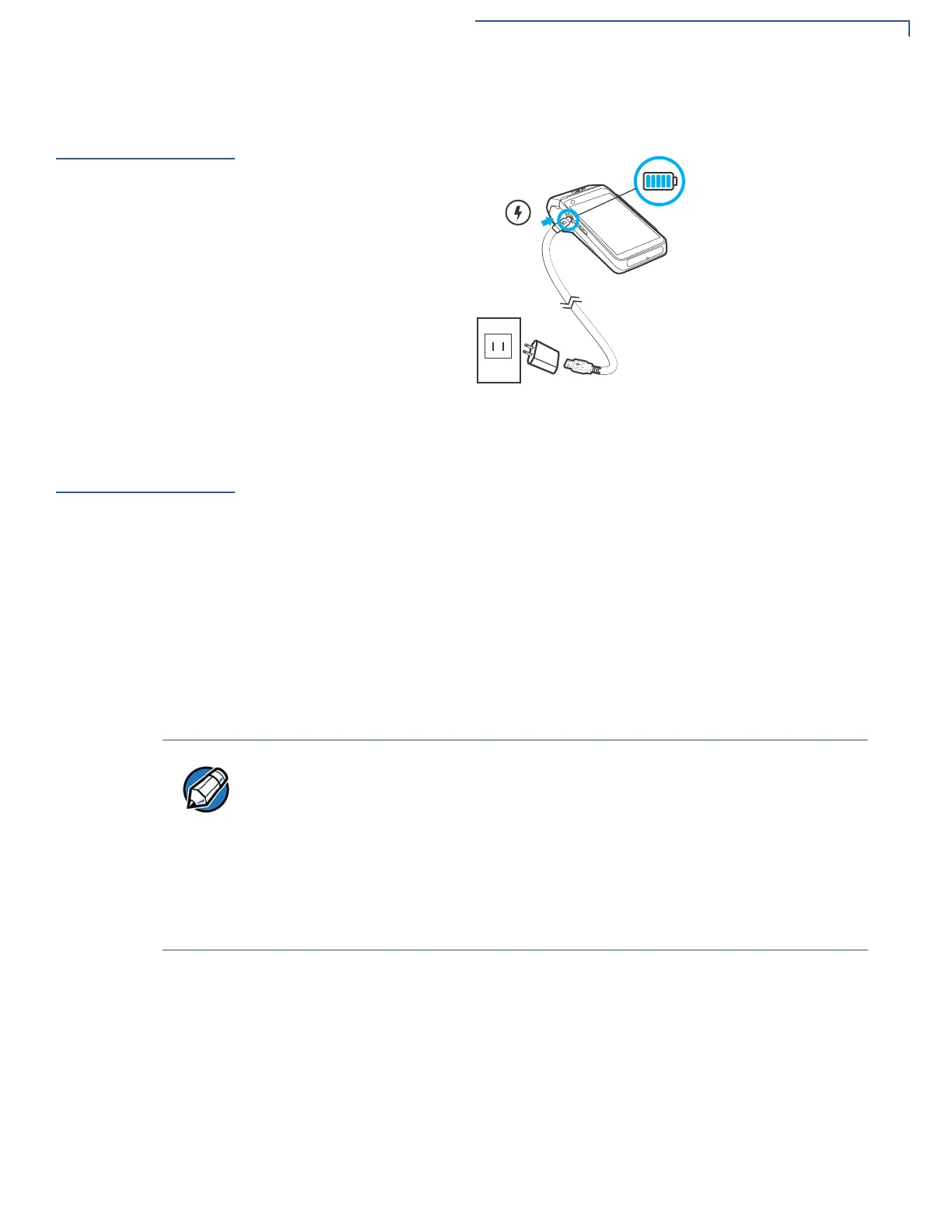

Figure 8 V660p-1 Primary USB-C Port
Using the
Battery
The V660p-1 device uses dual cell Li-Ion battery. The internal logic of the battery
prevents both overcharging and undercharging (a fault condition in which the
battery level goes well below the minimum acceptable charge and the battery
becomes unusable).
Battery Features
The following are features of the battery:
• Two Li-Ion cells
• A safety circuit that:
• Prevents cell damage from overcharge, over-discharge, or overheating.
• Activates when the battery is left in an unused device for an extended
period
.
Manual Startup
Hold the start button for about 3 seconds until the device displays the startup
screen.
• Charge the V660p-1 device for eight hours before initial use.
• Disconnecting and unplugging the device power pack, reduces the life of the
coin cell battery, which does not recharge and must be replaced if drained.
• Conserve battery power by turning the V660p-1 devices off when not in use.
Do not let the battery charge fall below 10% for an extended period of time as
this may permanently diminish the battery capacity. Recharge the battery by
attaching the USB-C end of the power pack to the device and plugging the
other end of the power pack into a wall outlet.
