Vernacare VORTEX AIR - Heavy Duty Mode Cycle

Page | 19
VORTEX AIR Technical Manual
Revision 6- Issued by N. Shields 24/08/2023
4.4.3. Heavy Duty Mode

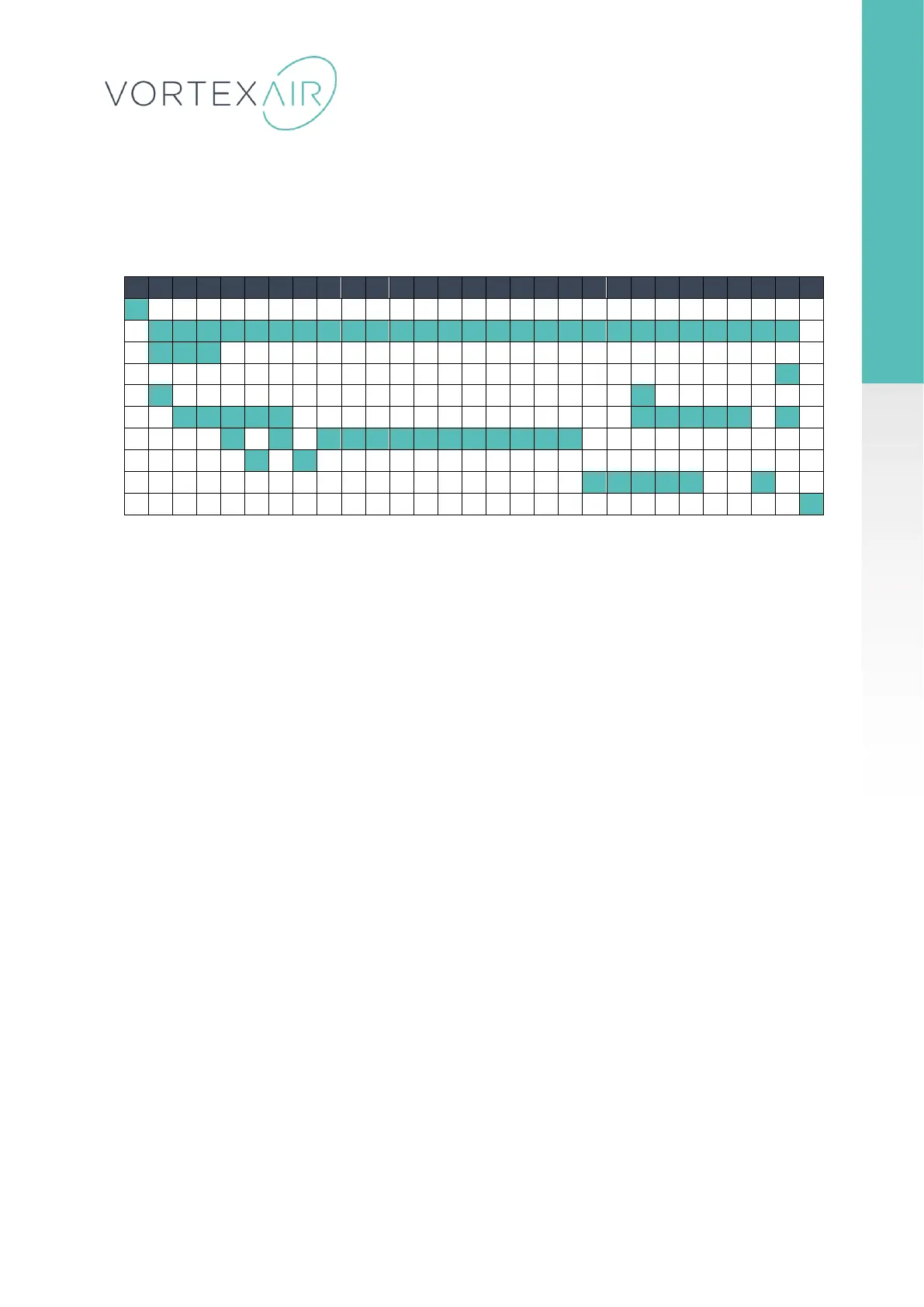

A: Start Button/Auto Start, B: Lid Lock, C: Air Pump, D: Lid Seal Solenoid Valve, E: Drain Solenoid Valve, F: Water Pump, G:
Motor Forward 55Hz, H: Motor Reverse 55Hz, I: Motor Forward 60Hz, J: Deodoriser Pump, K: Cycle Complete
Time (Seconds)
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
A
B
C
D
E
F
G
H
I
J
