5.5. Lid Assembly
How it Works
The lid assembly houses many key components including the inflatable seal. At the beginning of
each cycle the compressor inflates the seal which applies pressure between the lid and top cover
to ensure a full aerosol free seal during operation. The water is also added through the lid via the
idle shaft on the right-hand side of the top cover.

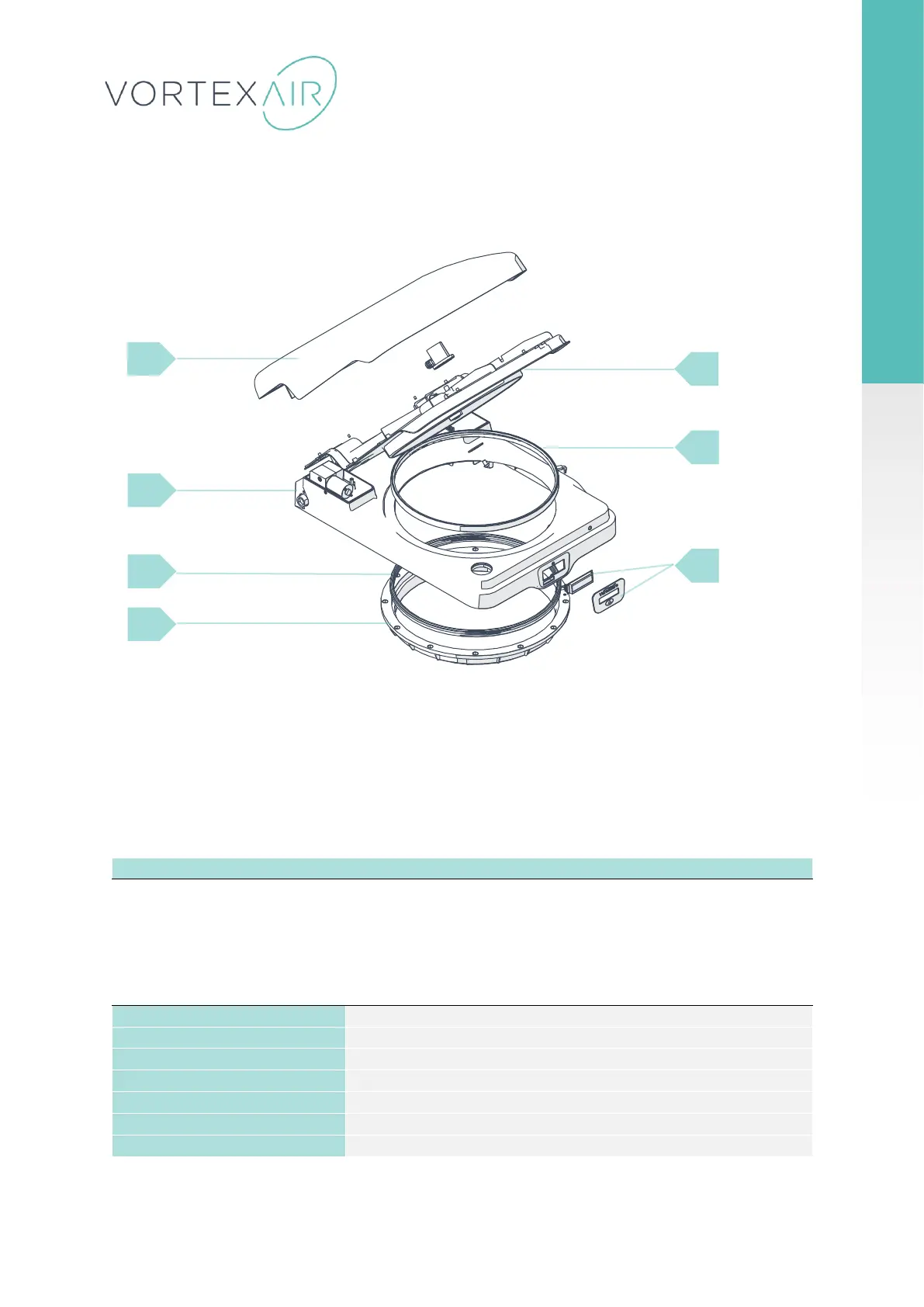

1
Lid Top Moulding
2
Top Cover Moulding
3
Static Lid-Hopper Rubber Seal
4
Clamp Ring
5
Lid Bottom Moulding
6
Inflatable Seal
7
LCD Display & Membrane
1
2
3
4
5
6
7
