Vernacare VORTEX AIR - Diaphragm;Drain Valve Assembly

Page | 26
VORTEX AIR Technical Manual
Revision 6- Issued by N. Shields 24/08/2023

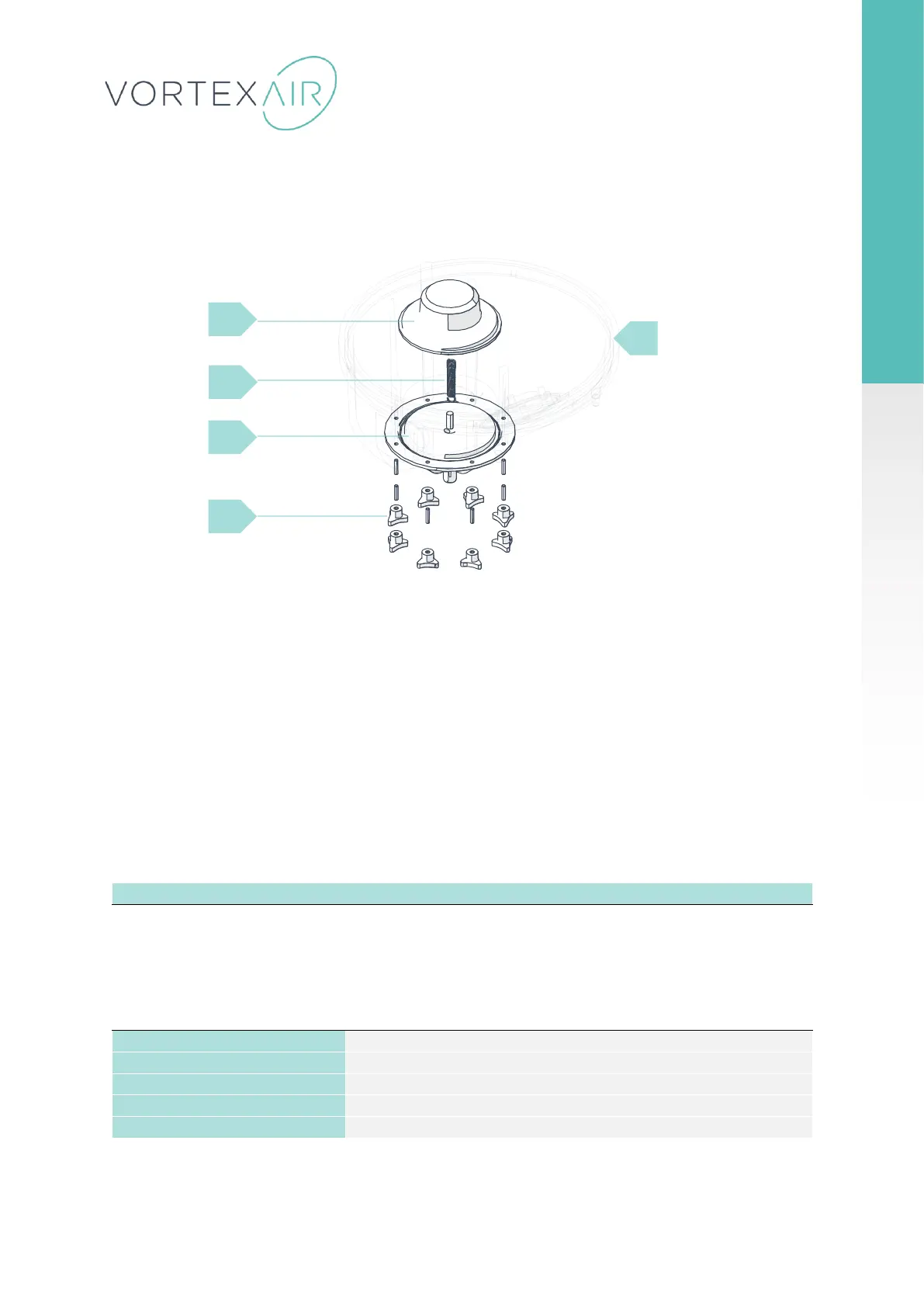

5.2. Diaphragm/Drain Valve Assembly
How it Works
The diaphragm assembly is also known as the drain valve. When a cycle is commenced, the rubber
diaphragm will inflate via air distributed from the pneumatics assembly. Once inflated, all of the
macerator’s contents will be help until the end of the cycle. Once completed the valve is quickly
deflated sending the processed waste directly to the drain through the P-Trap.
1
Rubber Diaphragm
2
Diaphragm Spring
3
Diaphragm Chassis Plate
4
Lobed Nuts
5
Hopper Base
1
2
3
4
5
